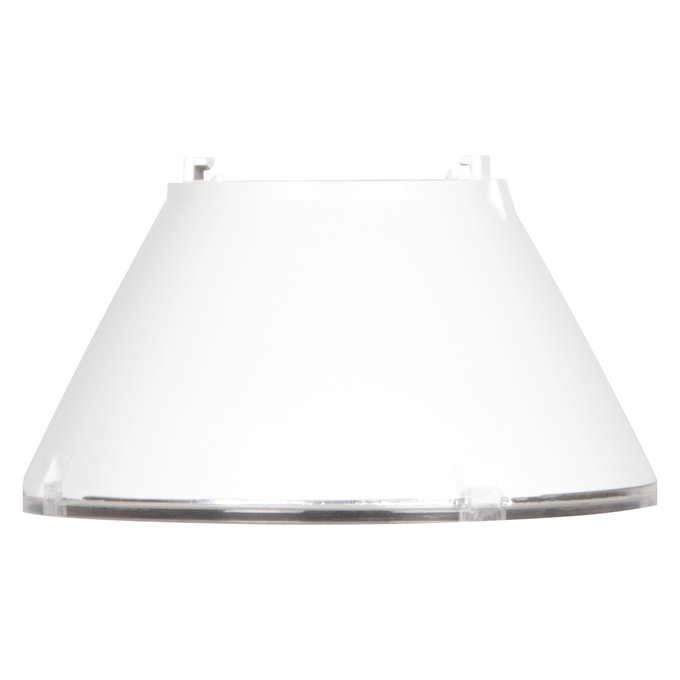

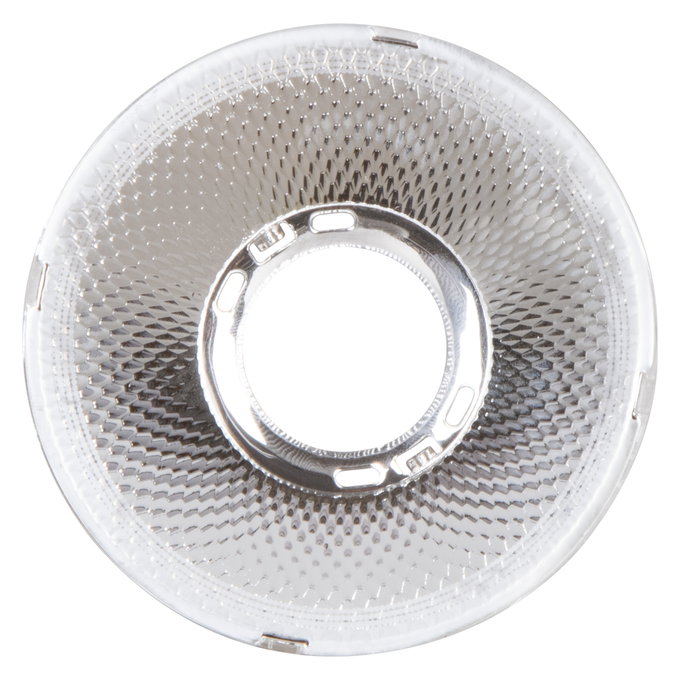

TR SP REFLECTOR V 30W 50DEG

TR SP REFLECTOR V 30W 50DEG

1 / 5

LEDVANCE

TR SP REFLECTOR V 30W 50DEG

Product benefits

Clear cover protects the reflector against dust and contact
High optical efficacy
Reflector easily replaceable thanks to bayonet catch and rubber suction pad

Areas of application

Suitable for TRACKLIGHT SPOT XR

Product features

Accessory reflectors available in different beam angles (15°, 36°, 50°)

References / Links

For Guarantee see www.ledvance.com/guarantee

Product identifiers

SKU: 4099854616884

EAN: 4099854616884

GTIN: 4099854616884

MPN: 4099854616884

Price: £ 0.00 Excl. VAT

Categories

LED Lighting & Luminaires Luminaires Indoor Luminaires

ETIM group

Accessories for lighting

Specifications

Materials & Colors

Product color	Silver
RAL Color (most similar)	RAL 9003
Body material	Polycarbonate (PC)

Photometrical data

Beam angle

50 °

Dimensions & Weight

Diameter	75 mm
Height	43 mm
Product weight	23.00 g

Application & Mounting

Replaceable light source

No
