3-conductor fuse terminal block with pivoting fuse holder with end plate gray

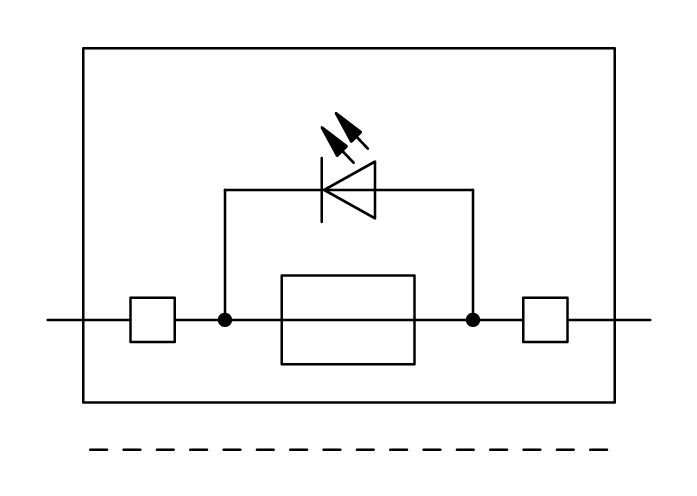

3-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with push-button; with blown fuse indication by LED; 30 - 65 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Product identifiers
SKU: 2202-1711/1000-542
EAN: 4066966335767
GTIN: 4066966335767
MPN: 2202-1711/1000-542
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
57.6
|
|
Width
|
6.2
|
|
Colour
|
Grey
|
|
Height
|
76.8
|
|
Rated voltage
|
250
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
6.3
|
|
Type of fuse holder
|
Swivelling
|
|
Type of fuse insert
|
G-fuse 5x20 mm
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Voltage type for defect indication
|
AC
|
|
Supply voltage for defect-indication
|
30 - 65
|
|
Connectable conductor cross section solid-core
|
0.75 - 4
|
|
Connectable conductor cross section multi-wired
|
0.25 - 2.5
|
|
Type of indication element for defect indication
|
LED
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 2.5
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.25 - 4
|
