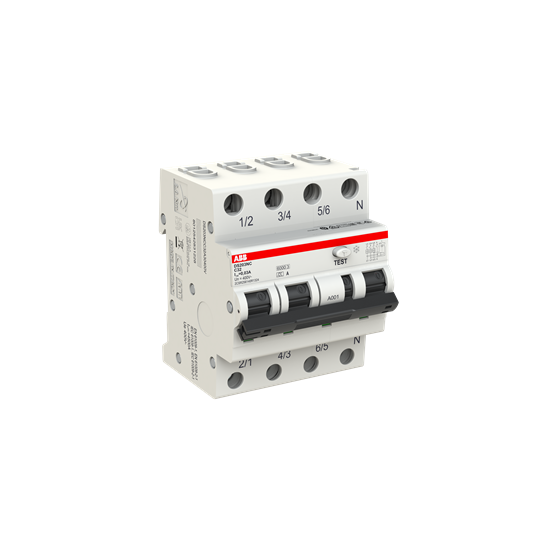

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A

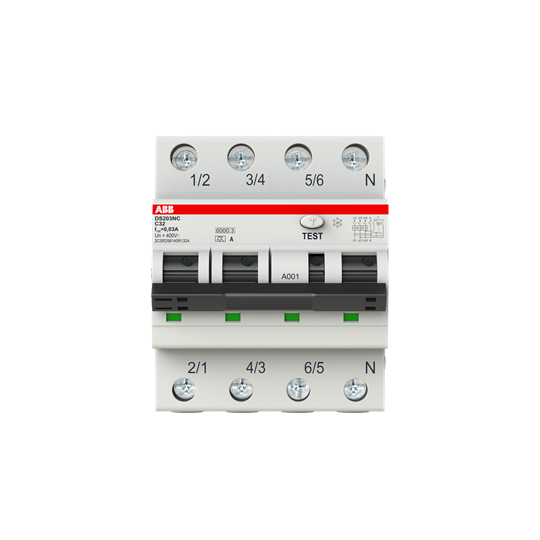

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A – Image 2 of 3

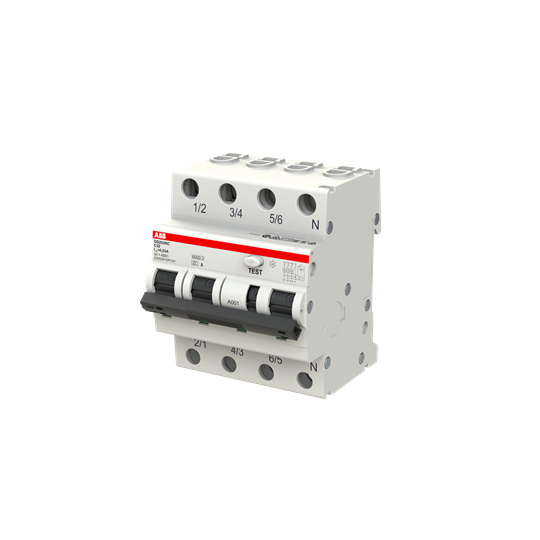

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A – Image 3 of 3

1 / 3

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A

Name: Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A
Brand: ABB
SKU: 2CSR256140R1324
Availability: InStock

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 32 A - C - Type A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £184.56 to £230.58 excl. VAT. Voltimum+ members earn 102 points per unit.

DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts.

Product identifiers

SKU: 2CSR256140R1324

EAN: 8012542831228

GTIN: 8012542831228

MPN: DS203NC C32 A30

Loyalty points: 102

Price range: £ 184.56 - £ 230.58 Excl. VAT

Specifications

Frequency	50/60 Hz
Power loss	15.1
Voltage type	AC
Rated current	32
Rated voltage	415
Built-in depth	69
Pollution degree	2
Rated fault current	0.03
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	-
Number of poles (total)	4
With interlocking device	yes
Degree of protection (IP)	IP2X
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	500
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	no
Width in number of modular spacings	4
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	yes
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity according to EN 61009	6
Rated short-circuit breaking capacity according to IEC 60947-2	10
Rated short-circuit breaking capacity Icn according to EN 61009-1	6
