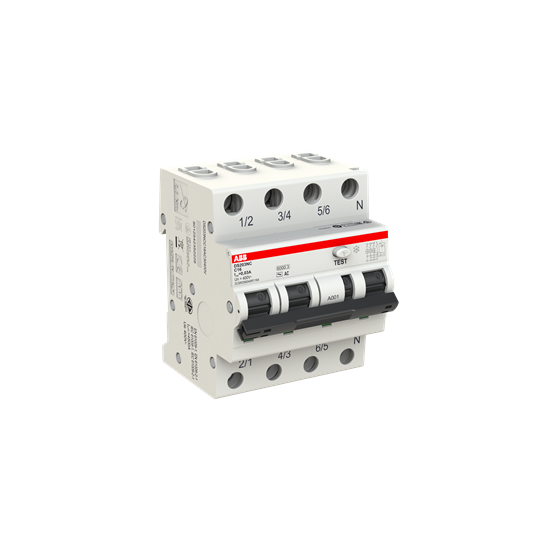

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC

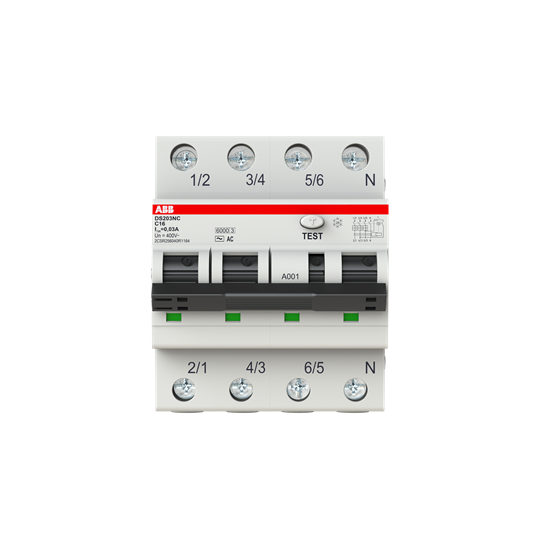

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC – Image 2 of 3

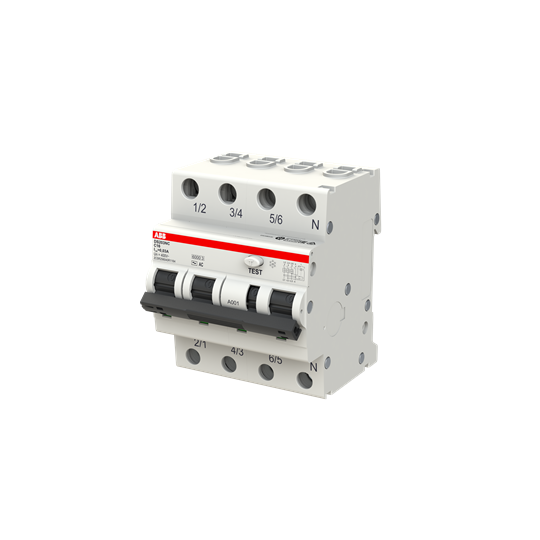

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC – Image 3 of 3

1 / 3

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC

Name: Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC
Brand: ABB
SKU: 2CSR256040R1164
Availability: InStock

Residual Current Circuit Breaker with Overcurrent Protection DS203NC - 3P+N - 30 mA - 16 A - C - Type AC by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £153.81 to £192.18 excl. VAT. Voltimum+ members earn 85 points per unit.

DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts.

Product identifiers

SKU: 2CSR256040R1164

EAN: 8012542352228

GTIN: 8012542352228

MPN: DS203NC C16 AC30

Loyalty points: 85

Price range: £ 153.81 - £ 192.18 Excl. VAT

Specifications

Frequency	50/60 Hz
Power loss	10
Voltage type	AC
Rated current	16
Rated voltage	415
Built-in depth	69
Pollution degree	2
Rated fault current	0.03
Leakage current type	AC
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	0.25
Number of poles (total)	4
With interlocking device	yes
Degree of protection (IP)	IP2X
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	500
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	no
Width in number of modular spacings	4
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	yes
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity according to EN 61009	6
Rated short-circuit breaking capacity according to IEC 60947-2	10
Rated short-circuit breaking capacity Icn according to EN 61009-1	6
