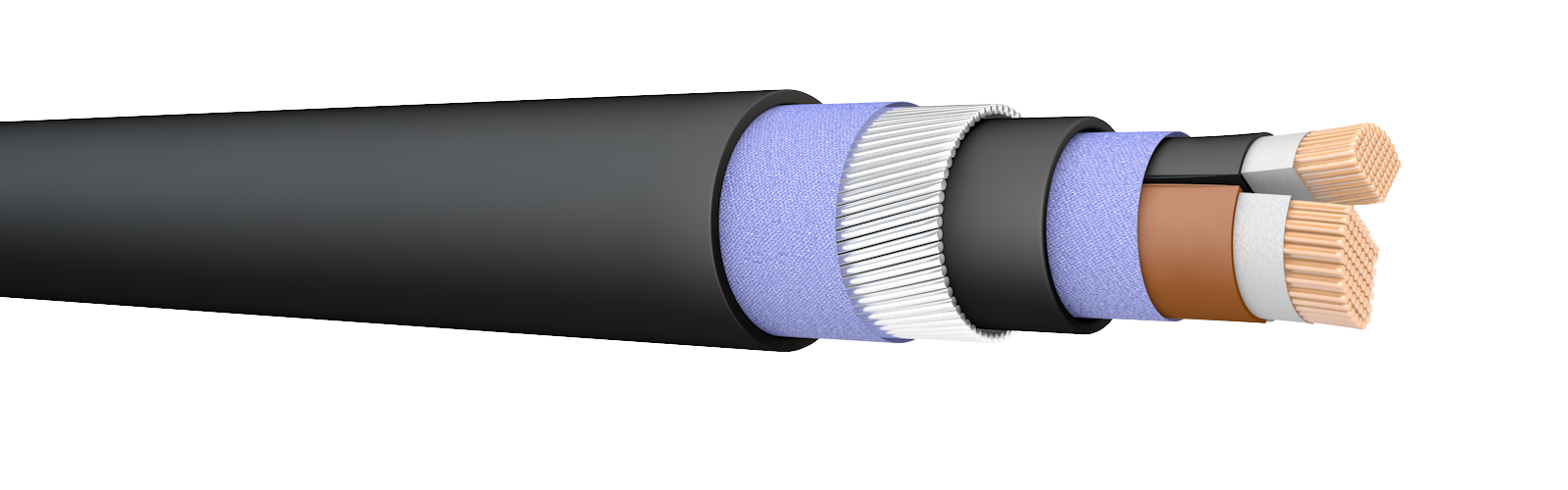

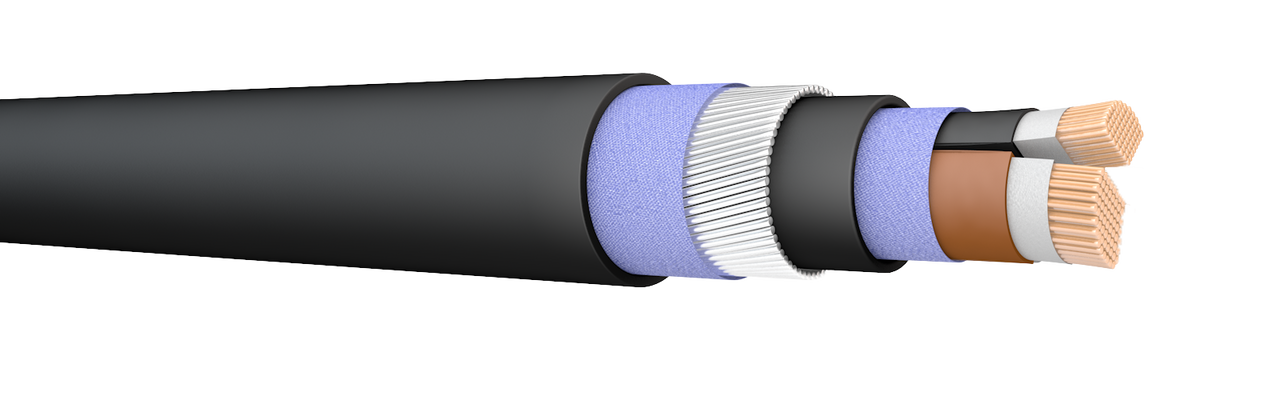

FP600 2x16 Cut Black Export Fire Resistant Armoured Power Cable. BS 7846-F120. 600/1000 V

Name: FP600 2x16 Cut Black Export Fire Resistant Armoured Power Cable. BS 7846-F120. 600/1000 V
Brand: Prysmian
SKU: 20146041

Prysmian FP600s is the ultimate fire resistant, armoured cable for power of emergency, life safety and fighting systems used in buildings

Product identifiers

SKU: 20146041

EAN: 5019325387791

GTIN: 5019325387791

Price: £ 0.00 Excl. VAT

Specifications

Screen	no
Weight	1250
Lead sheath	no
Cable geometry	Round
Number of cores	2
Conductor surface	Bare
Nominal voltage U	1000
Conductor category	Class 2 = stranded
Conductor material	Copper
Nominal voltage U0	600
Shape of conductor	Round
Colour outer sheath	Black
Core identification	Colour
Concentric conductor	None
Material outer sheath	Polyolefin
Outer diameter approx.	25
With rodent protection	no
Armouring/reinforcement	Wire
Material core insulation	Mica + crosslinked polyethylene (XLPE)
Max. conductor temperature	90
Conductor resistance at 20 °C	1.15
Suitable as high-voltage cable	no
Nominal cross section conductor	16
Suitable as medium-voltage cable	no
Certified as airport lighting cable	no
Certified for shipboard application	no
Specification material outer sheath	Other
Low smoke according to EN IEC 61034-2	yes
Suitable for underground installation	yes
Core identification according to HD 308 S2	yes
Oil resistant according to EN IEC 60811-404	no
Permitted cable outer temperature during assembling/handling
Min. permitted bending radius, stationary application/permanent installation	200
