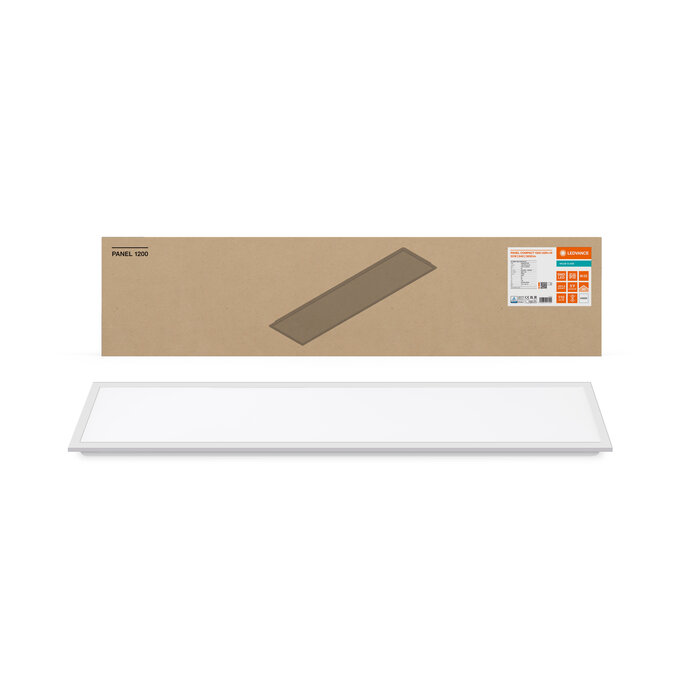

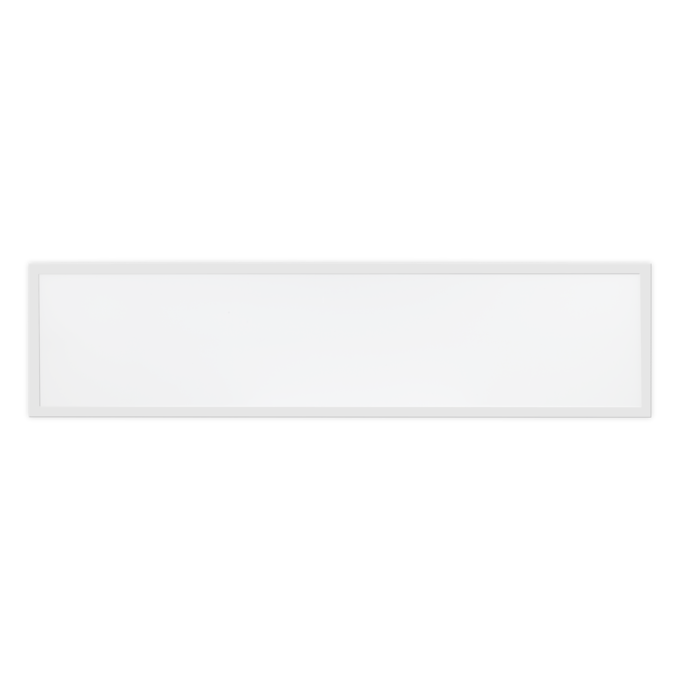

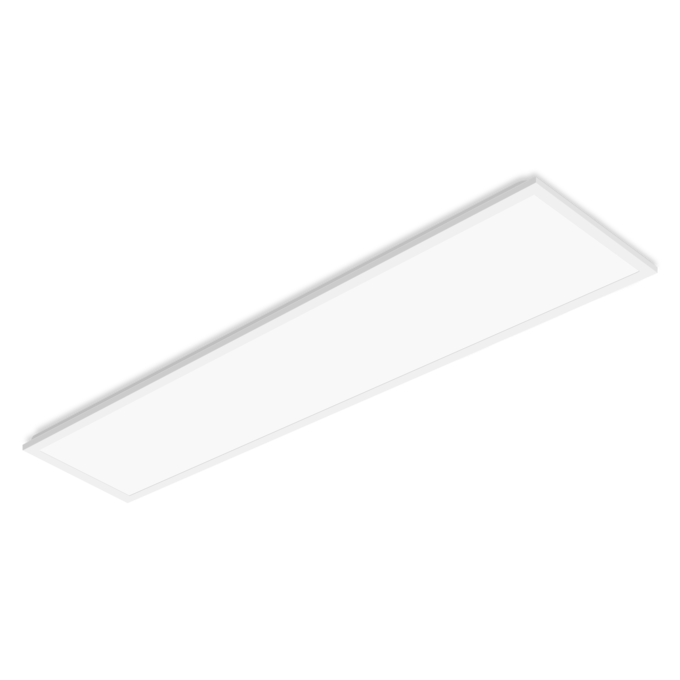

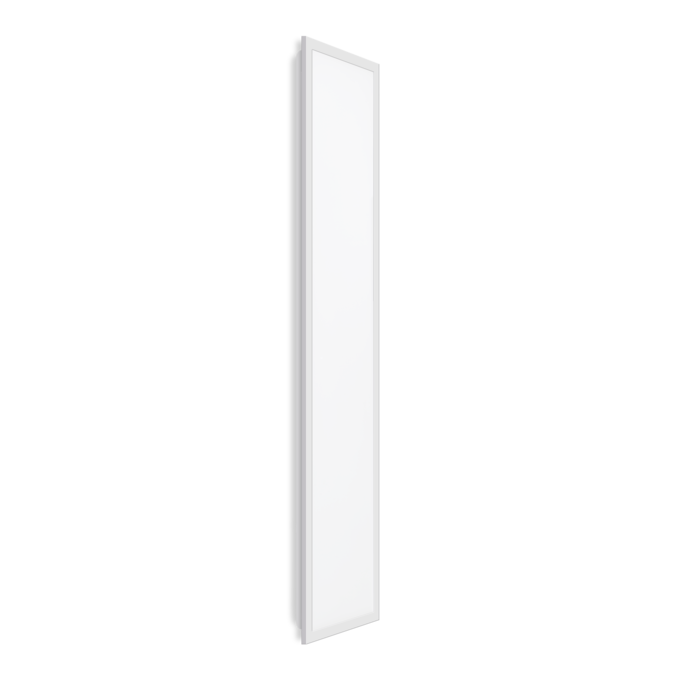

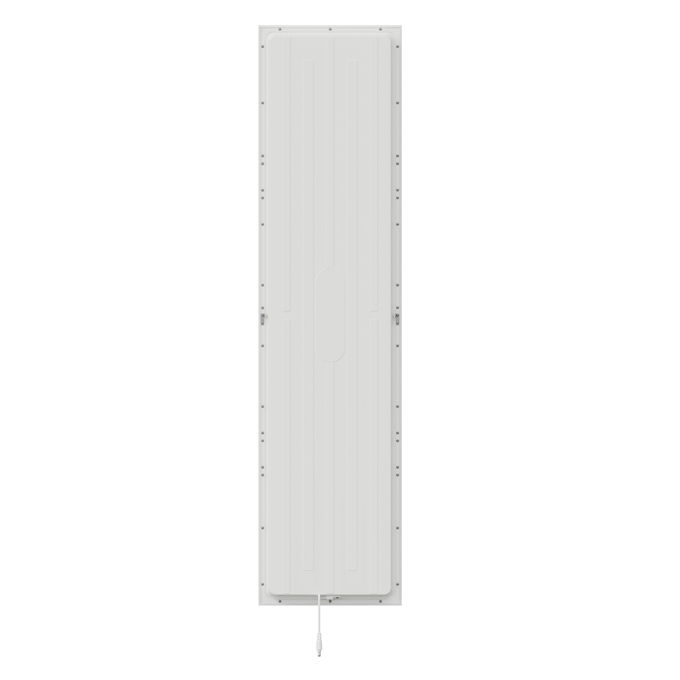

PL COMP 1200 V 33W 840 U19
Product benefits
- Good glare reduction (UGR < 19)
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 110 lm/W
- External driver with an optional 3-pole through-wiring feature
- Versions with DALI ECG available
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled

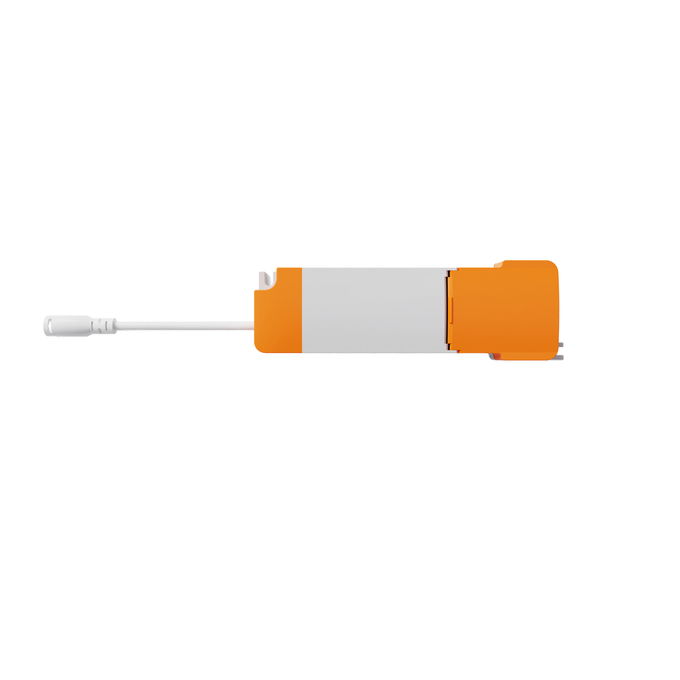

- External control gear included
- Suitable for use with separate Emergency Conversion Box

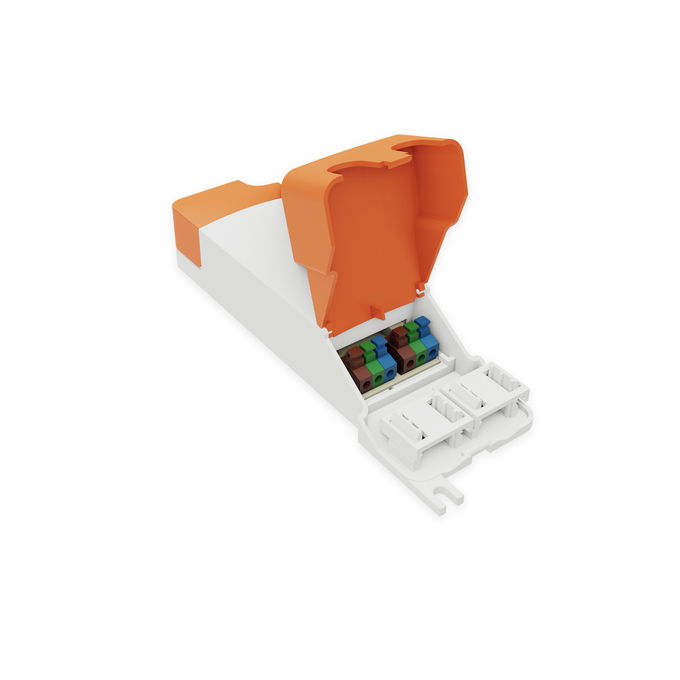

- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
SKU: 4099854017209
EAN: 4099854017209
GTIN: 4099854017209
MPN: 4099854017209
Price: £ 54.01 Excl. VAT
ETIM Group
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 50000 |
Control gear
| Output current | 700 mA |
| ECG - Output ripple current | < 7 % |
| ECG - Length | 116.7 mm |
| ECG - Width | 49.9 mm |
