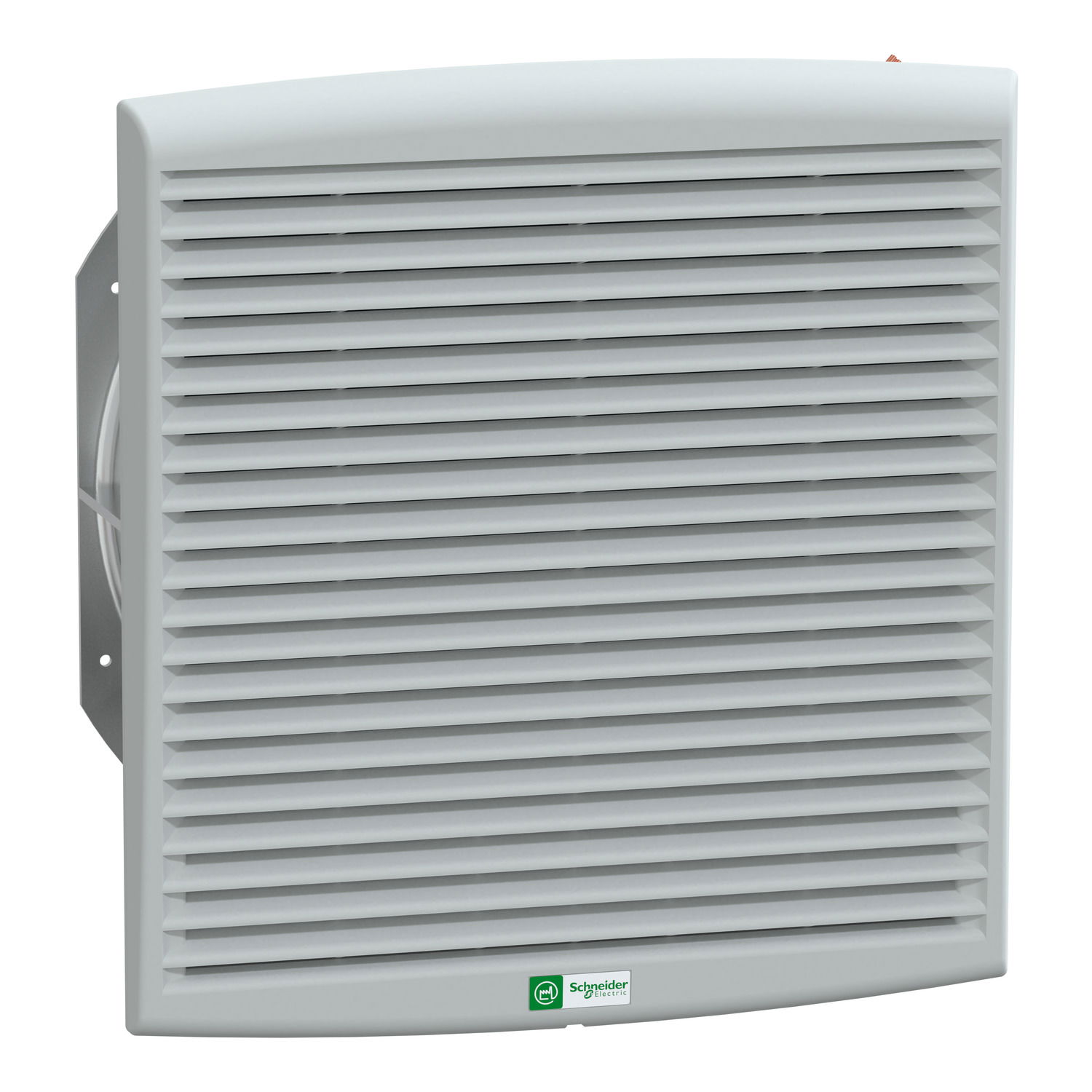

ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2

ClimaSys forced vent. IP54, 850m3/h, 400V, with outlet grille and filter G2

"This product is a fan designed to provide reliable and efficient cooling" "It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color" "The fan has a ball bearing type and a maximum pressure of 170 Pa" "It has a power range of 126 W 50 Hz and 126 W 60 Hz, and a free flow rate of 803 m3/h at 60 Hz and 931 m3/h at 50 Hz" "It can be used in ambient air temperatures ranging from -15 to 60°C" "It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces" "It has an IP54 degree of protection and a noise level of 75-77 dB" "The cut-out dimensions of the fan are 291 x 291 mm" "This fan also comes with an anti-insect filter included"

Product identifiers

SKU: NSYCVF850M400PF
EAN: 3606480151361
GTIN: 3606480151361
MPN: NSYCVF850M400PF

V+ Loyalty points:

105

Price: £ 286.38 Excl. VAT

Specifications

Depth 162 mm
Width 316 mm
Colour Grey
Height 336 mm
RAL-number 7035
EMC-version no
Rated power 126 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no
