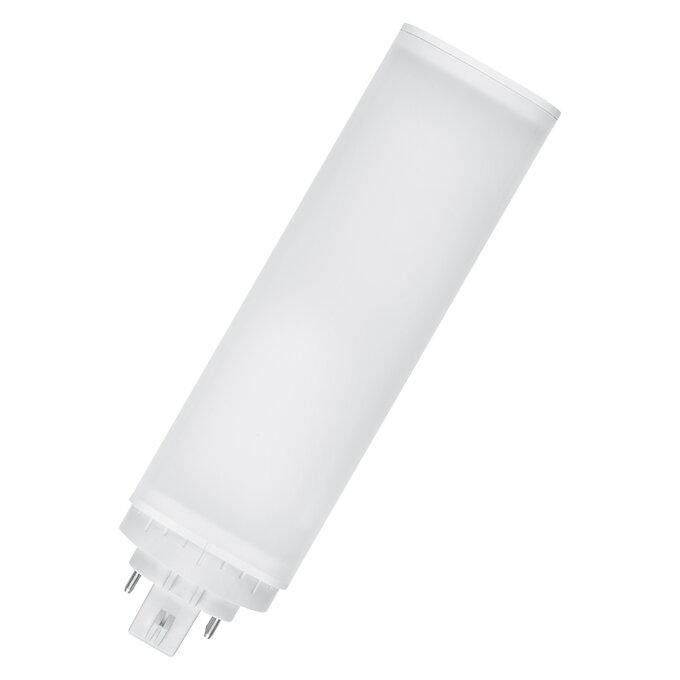

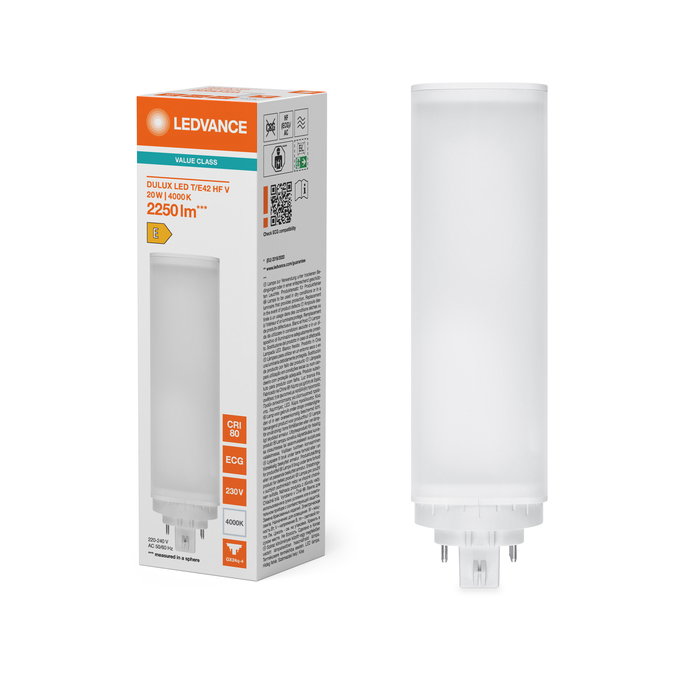

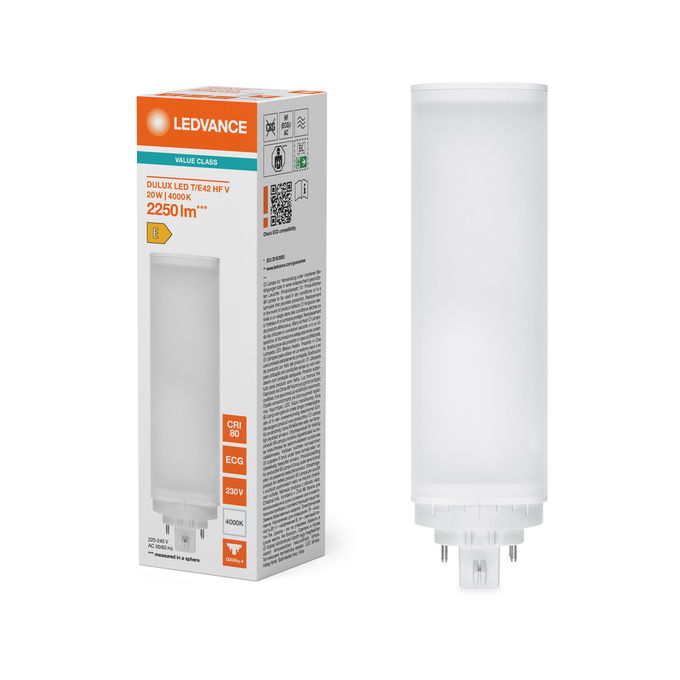

DULUX LED T/E42 HF & AC MAINS VALUE 20W 840 GX24Q-4
DULUX LED T/E42 HF & AC MAINS VALUE 20W 840 GX24Q-4
DULUX LED T/E42 HF & AC MAINS VALUE 20W 840 GX24Q-4 by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £26.61 excl. VAT.
Product benefits
- Easy installation
- Low energy consumption
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in GX24q base
- Rotatable base around its longitudinal axis (± 90°)
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Do not touch the lamp with bare fingers.
- Must not be used if outer bulb is defective.
Product identifiers
Price: £ 26.61 Excl. VAT
ETIM group
Specifications
Electrical data
| Nominal wattage | 20 W |
| Construction wattage | 20.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | ECG, AC Mains 1) |
| Claimed equiv. conventional lamp power | 42 W |
| Nominal current | 88 mA |
| Type of current | AC |
| Inrush current | 9 A |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – DULUX LED T/E HF V
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – DULUX LED
Certificates – DULUX LED TE42 HF V 20W
Certificates – DULUX LED TE42 HF V 20W
Certificates – DULUX LED TE42 HF V 20W
Product datasheet -> old version of product – DULUXLEDTE42HF&ACMAINS V20W840GX24Q4en
