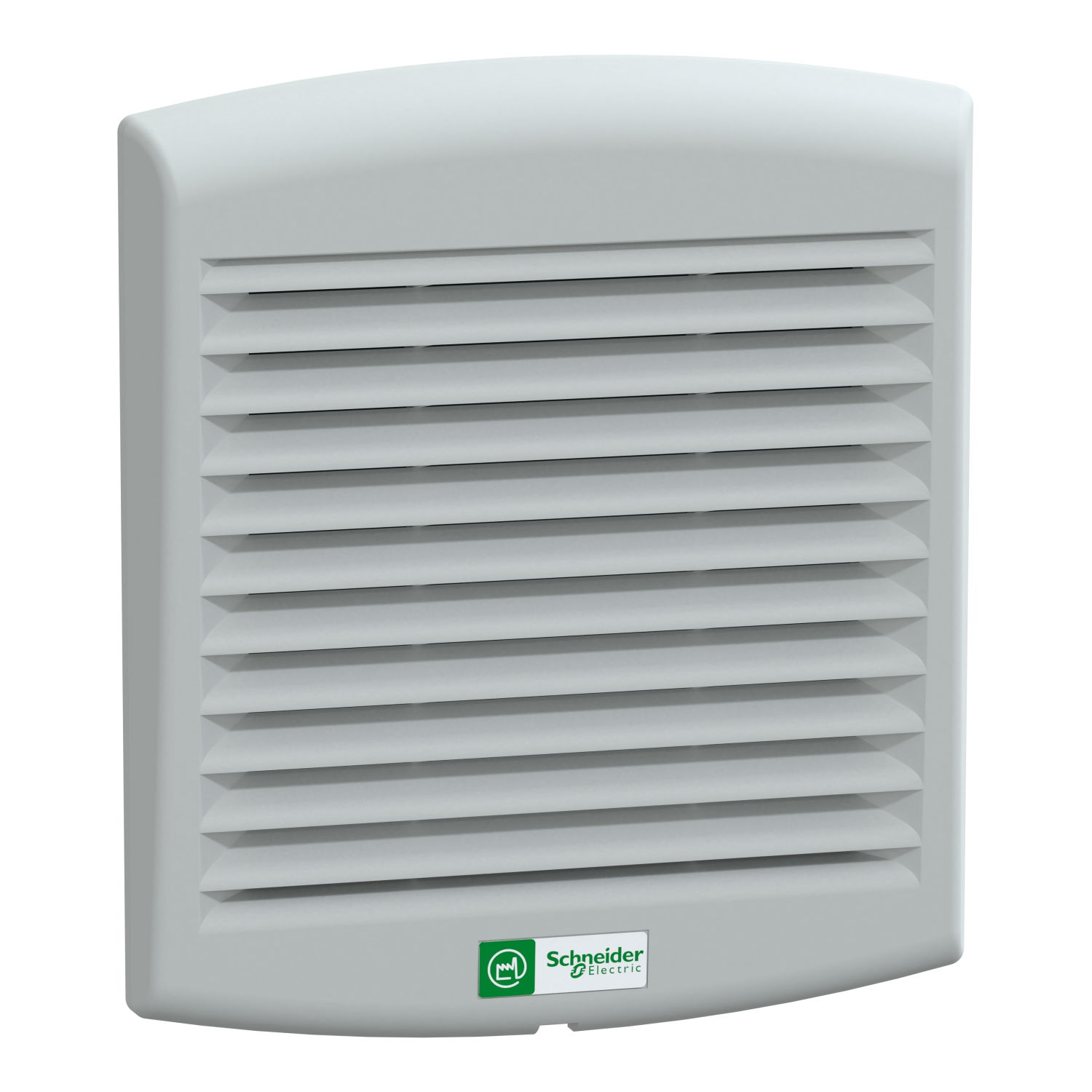

ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2
ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2 by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £76.81 to £110.62 excl. VAT. Voltimum+ members earn 14 points per unit.
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Product identifiers
SKU: NSYCVF85M230PF
EAN: 3606480151200
GTIN: 3606480151200
MPN: NSYCVF85M230PF
Loyalty points:
14
Price range: £ 76.81 - £ 110.62 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 62 mm |
| Width | 150 mm |
| Colour | Grey |
| Height | 170 mm |
| RAL-number | 7035 |
| EMC-version | no |
| Rated power | 17 W |
| With filter | yes |
