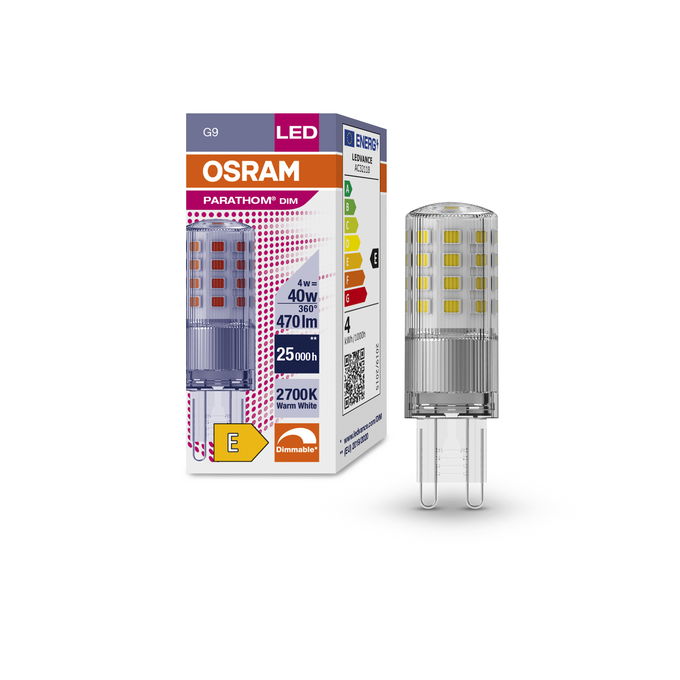

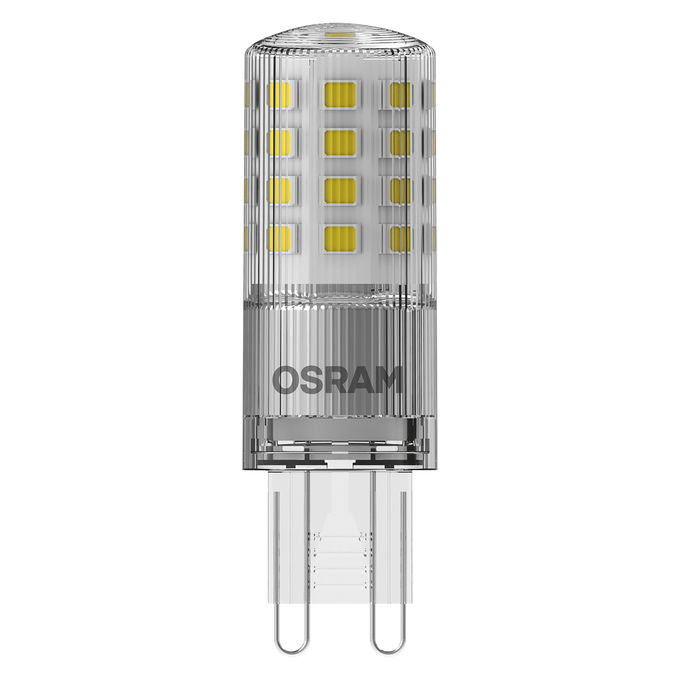

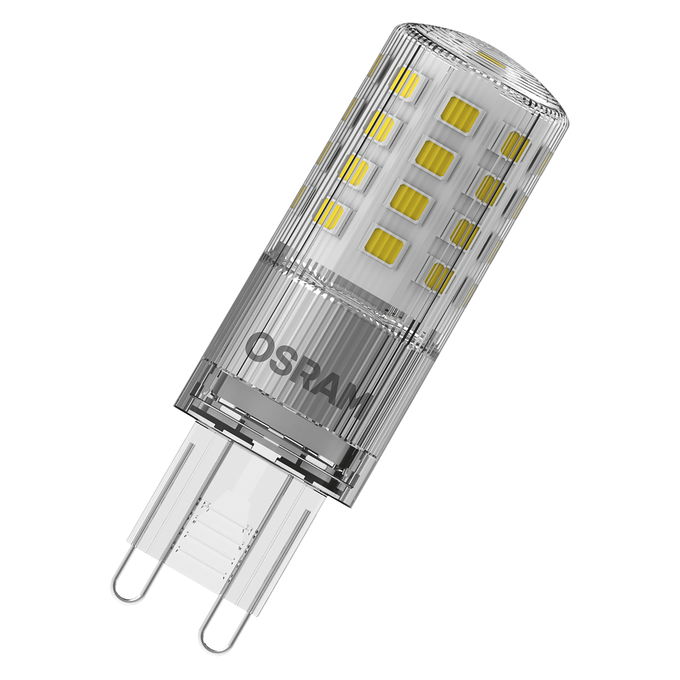

LED PIN 40 320° DIM P 4W 827 Clear G9

LED PIN 40 320° DIM P 4W 827 Clear G9

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to high voltage halogen lamps
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4058075622265
EAN: 4058075622265
GTIN: 4058075622265
MPN: 4058075622265

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Capabilities

Dimmable Yes

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 23 mA
Inrush current 0.13 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 533
Power factor λ > 0.70
