Ventilator CEM 61 m3/h

Link copied
SKU
EAN
GTIN
MPN

Ventilator CEM 61 m3/h by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £361.25 excl. VAT. Voltimum+ members earn 44 points per unit.

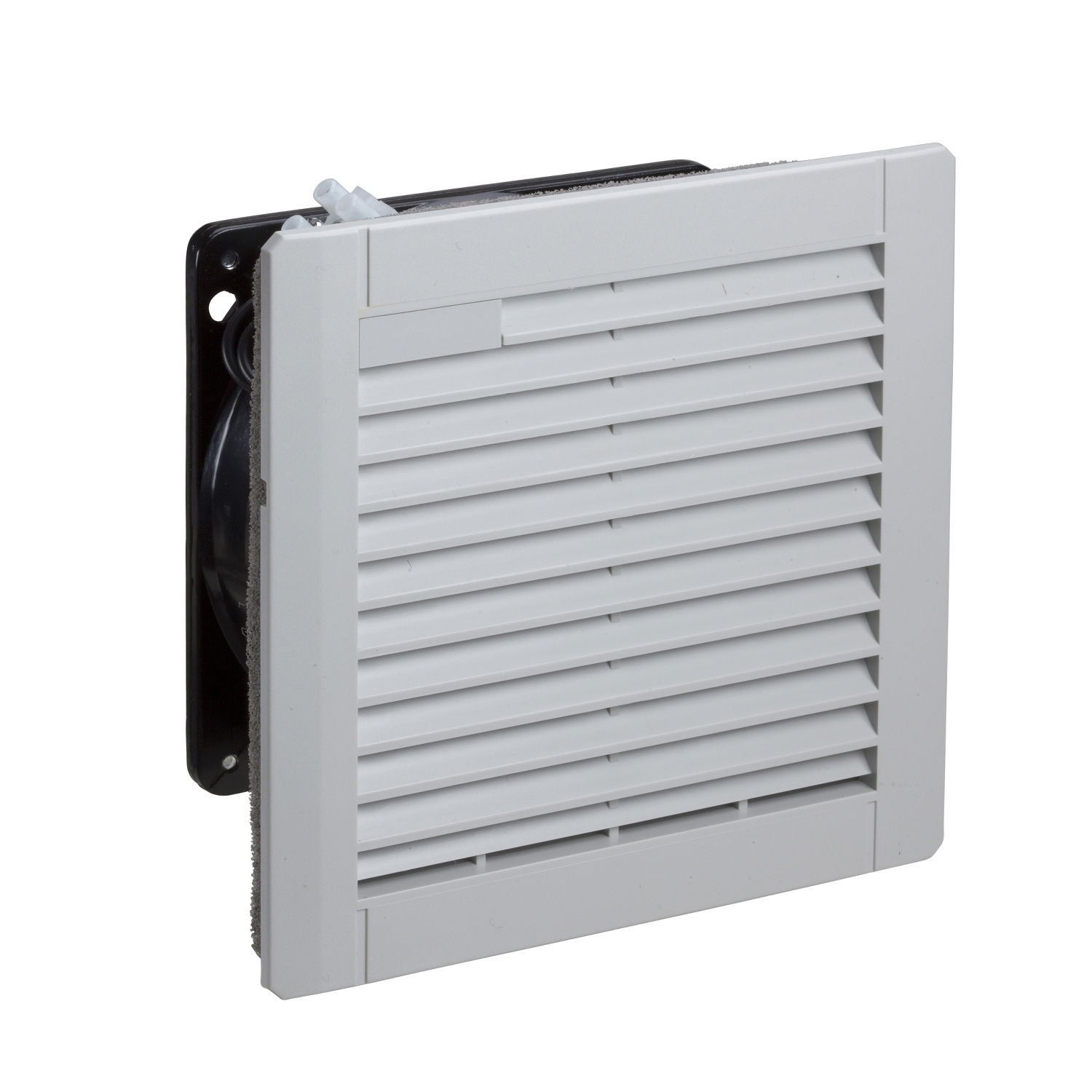

ClimaSys CV Ventilator CEM 61 m3/h. External H is 145 x W is 145 x D is 70 mm. EMC fan with standard ventilation filter. Free flow rate at 50 Hz and 230 V 50/60 Hz input voltage. ABS (acrylonitrile butadiene-styrene) for outlet grille, steel for frame of axial motor. Grey RAL 7035. IP 54 Protection. Cut-out dimensions is 126 x 126 mm.

Voltimum+ Loyalty Programme Loyalty points: 44

Price: £ 361.25 Excl. VAT

Specifications

Depth 69 mm
Width 150 mm
Colour Grey
Height 150 mm
RAL-number 7035
EMC-version yes
Rated power 18 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no
