| Width |
158 |
| Length |
273 |
| Function |

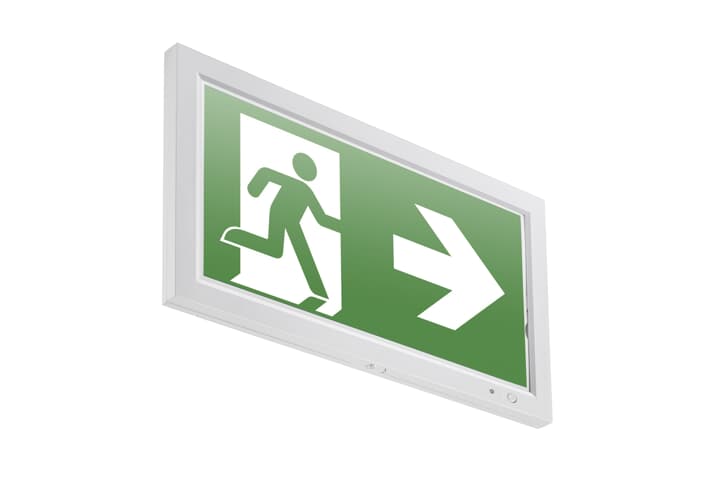

Escape route signage |
| Lamp type |
LED not exchangeable |
| Lamp holder |
- |
| Height/depth |
215 |
| Power factor |
0.7 |
| Voltage type |
AC |
| Built-in width |
- |
| Housing colour |
White |
| Material cover |
Plastic, opal |
| Outer diameter |
- |
| Type of wiring |
Ending |
| With pictogram |
yes |
| Built-in length |
- |
| Connection type |
Other |
| Impact strength |
IK08 |
| Mounting method |
Wall surface mounted |
| Nominal current |
|
| Nominal voltage |
|
| Number of poles |
5 |
| Housing material |
Plastic |
| Built-in diameter |
- |
| Light distributor |
- |
| Max. system power |
3.5 |
| Type of indicator |
Single-sided |
| With light source |
yes |
| Battery technology |
NiMH |
| Colour temperature |
|
| RAL-number housing |
- |
| Power supply system |
Peripheral (individual battery) |
| With remote control |
no |
| Monitoring equipment |
Safety module for monitoring (central feeded system) |
| Recognition distance |
24 |
| Type of control gear |
- |
| Built-in height/depth |
- |
| Nominal operation time |
|
| Conductor cross section |
2.5 |
| Flickering value Pst LM |
- |
| Number of lighting heads |
1 |
| Degree of protection (IP) |
IP20 |
| Exchangeable control gear |
yes |
| Constant light output (CLO) |
- |
| Degree of protection (NEMA) |
- |
| Suitable for labelling type |
Insert sheet/plate |
| Stroboscope effect value SVM |
- |
| Luminous flux in standby mode |
- |
| With remote switch connection |
no |
| Suitable for standby switching |
- |
| Suitable for continuous circuit |
- |
| Rated life time L70/B50 at 25 °C |
- |
| Suitable for number of light sources |
1 |
| Protection class according to IEC 61140 |
II |
| Rated luminous flux according to IEC 62722-2-1 |
32 |
| Rated ambient temperature according to IEC 62722-2-1 |
|
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
- |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
- |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
- |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
- |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Energy efficiency class of the light source according to EU regulation 2019/2015 |
- |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
- |
