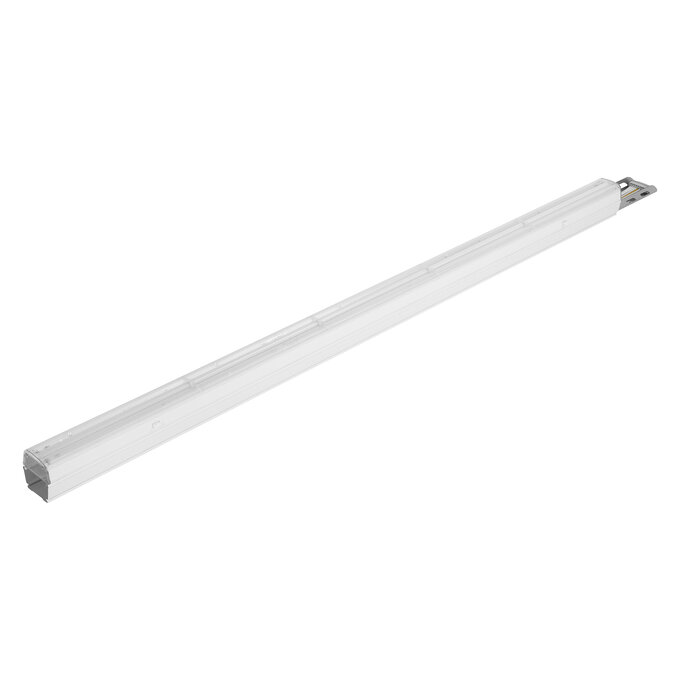

TruSys PFM DS 50 W/4000 K
Product benefits
- Double directed light distribution for shelf illumination
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- Rows of up to 57 luminaires possible
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Industry halls, high rack warehouse, garages, hardware stores
- Discounters, supermarkets
Product features
- Beam angle double asymmetric: 2x30°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 160 lm/W
- Fixed luminare taps
- Lumen package 5600 lm, 8000 lm, 11200 lm
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP20
- Common family design with LEDVANCE
- Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
Product identifiers
SKU: 4058075398795
EAN: 4058075398795
GTIN: 4058075398795
MPN: 4058075398795
Price: £ 0.00 Excl. VAT
Categories
Videos
Specifications
Lifespan
| Lifespan L70/B50 at 25 °C | 65000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
Control gear
| Output current | 620 mA |
| ECG - Output ripple current | < 20 % |
Electrical data
| Nominal wattage | 50.00 W |
| Nominal voltage | 220…240 V |
Documents
Documents and certificates
Documents And Certificates
Photometric And Lighting Design Files
