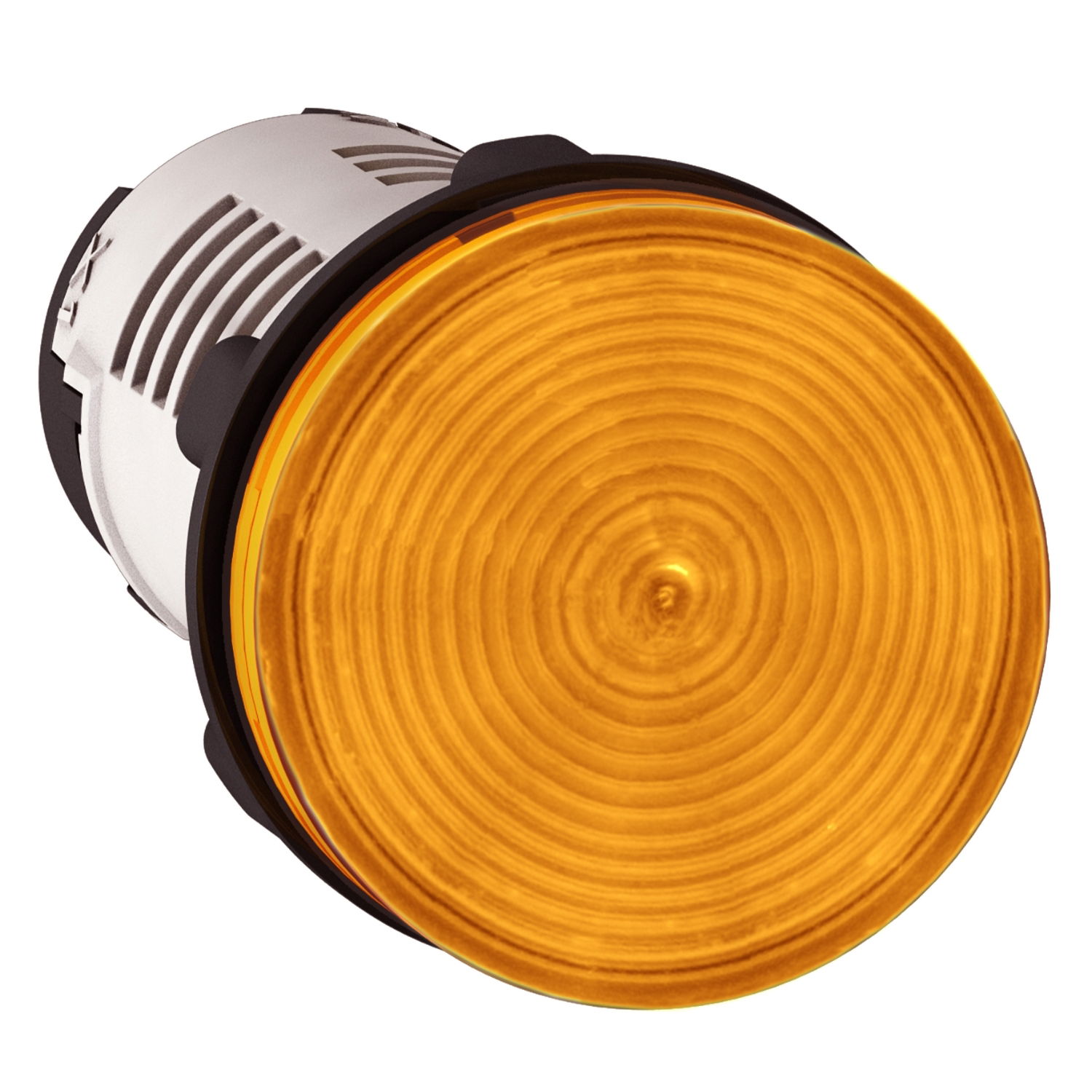

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC

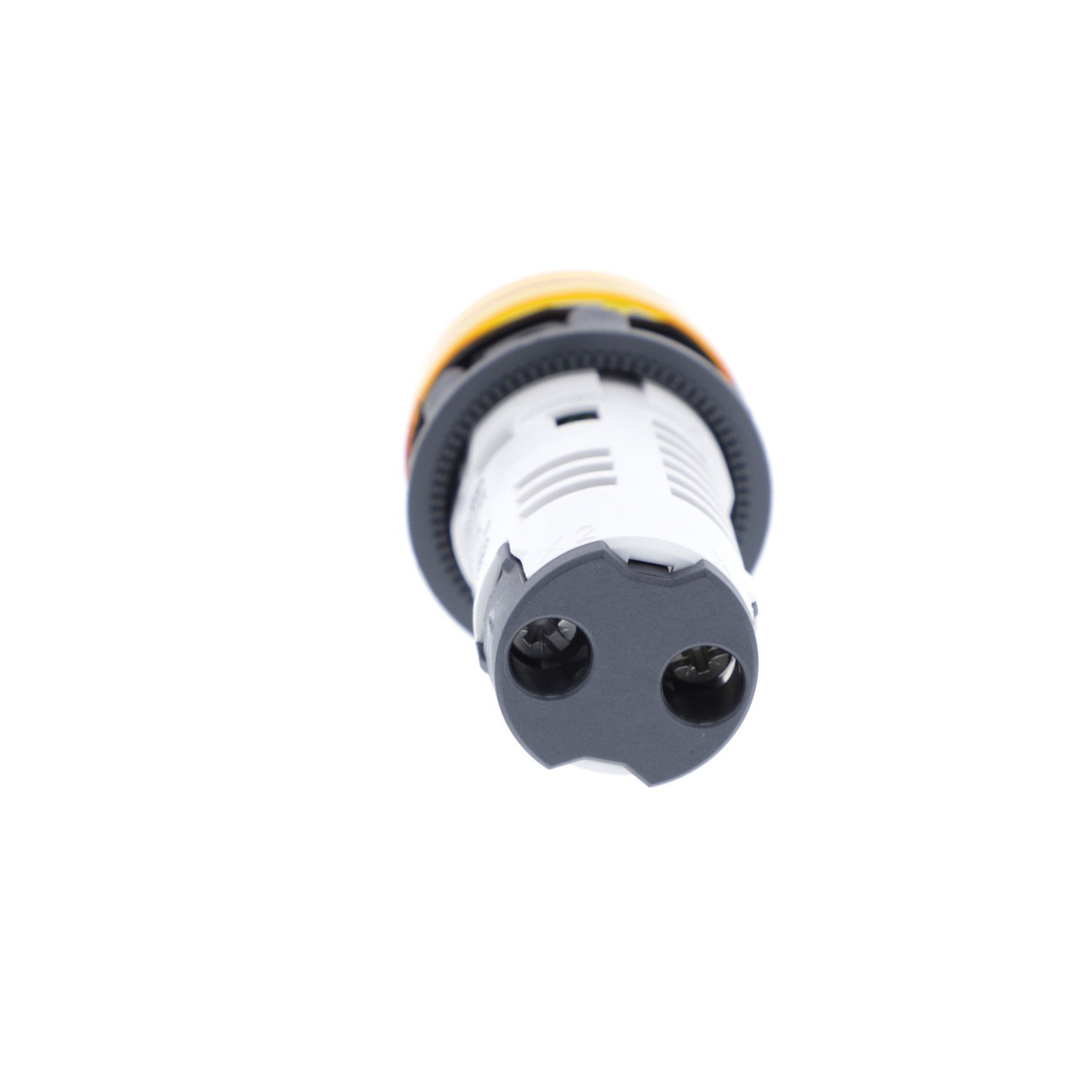

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC – Image 2 of 6

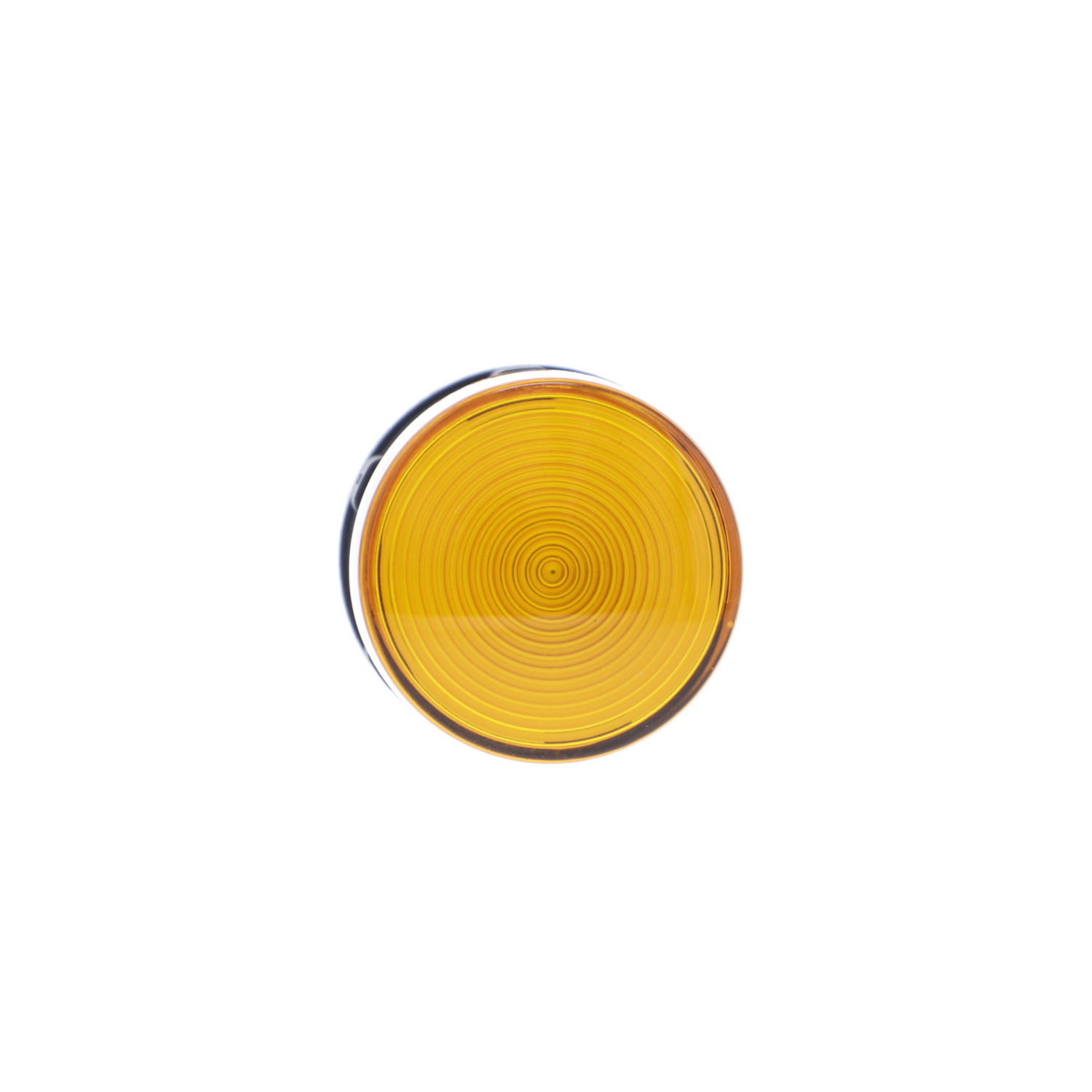

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC – Image 3 of 6

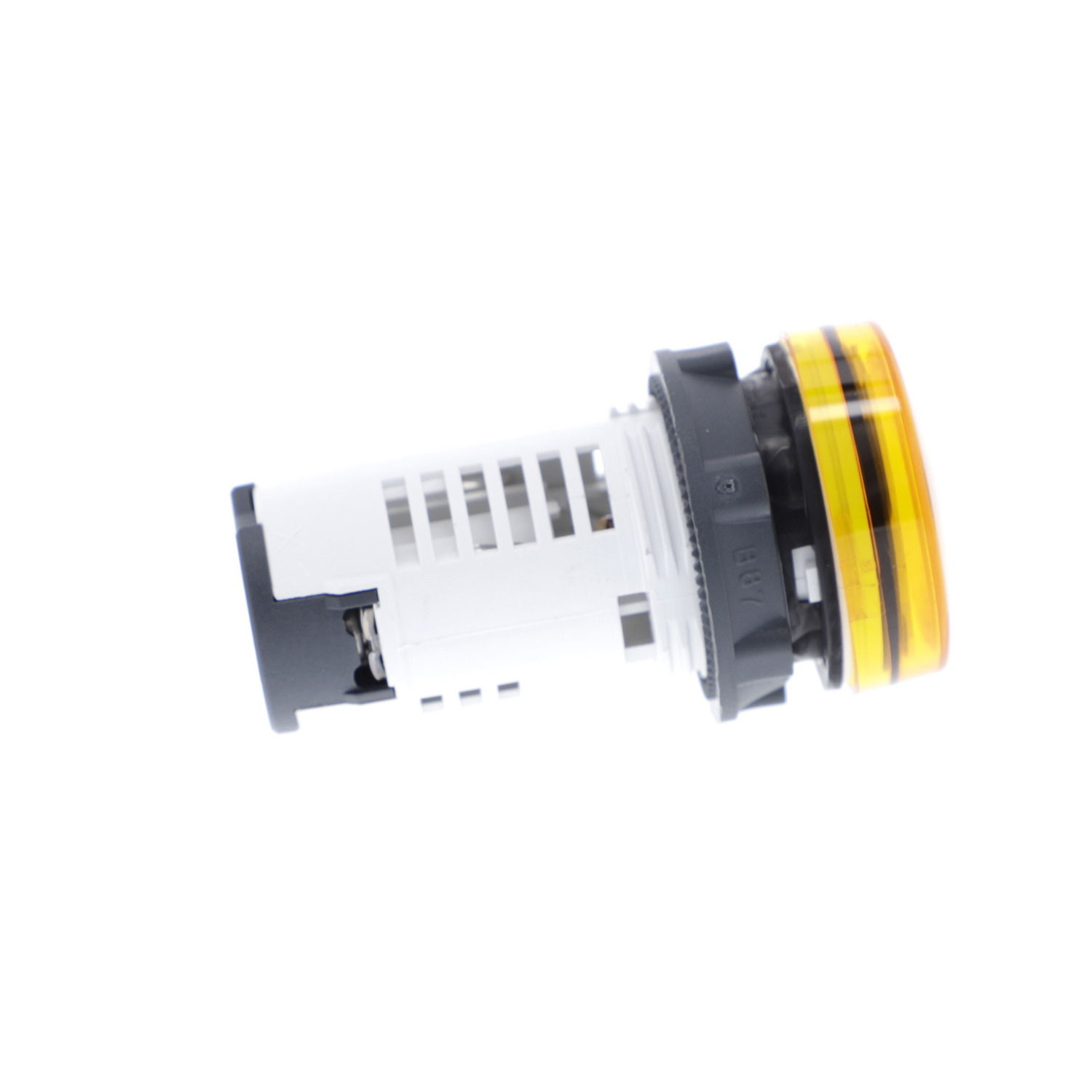

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC – Image 4 of 6

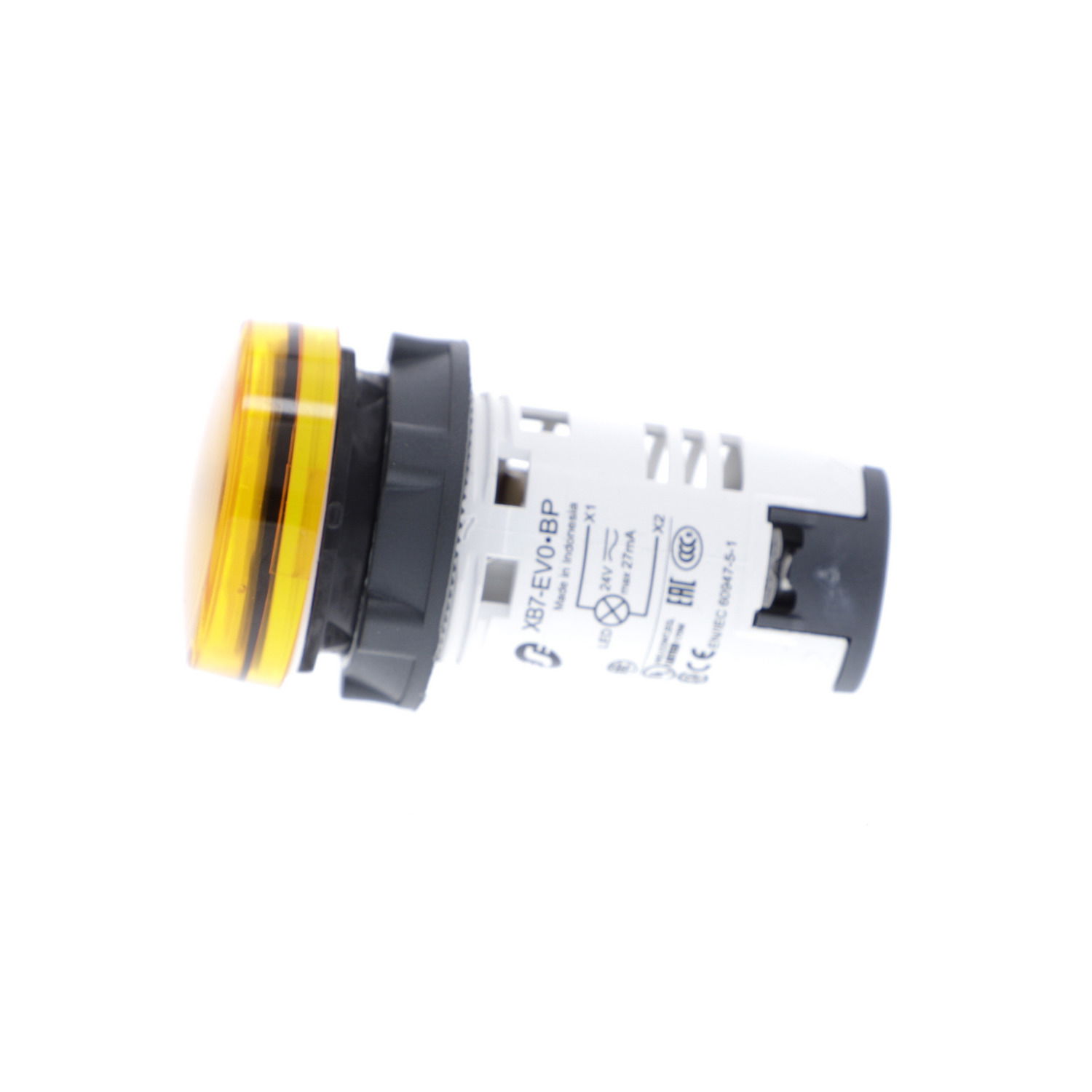

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC – Image 5 of 6

1 / 6

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC

Name: Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC
Brand: Schneider Electric
SKU: XB7EV08BP
Availability: InStock

Monolithic pilot light, plastic, orange, Ø22, integral LED, 24 V AC/DC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and TLA. It is currently in stock at 2 of them. Trade prices range from £6.46 to £10.02 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XB7, plain lens monolithic orange pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Product identifiers

SKU: XB7EV08BP

EAN: 3389119021906

GTIN: 3389119021906

MPN: XB7EV08BP

Loyalty points: 1

Price range: £ 6.46 - £ 10.02 Excl. VAT

Specifications

Colour lens	Orange
Type of lens	High
Voltage type	AC/DC
Hole diameter	22.5 mm
Width opening	-
Height opening	-
With front ring	no
Colour front ring	Other
With light source	yes
Material front ring	Other
Type of lamp socket	LED
Construction type lens	Round
Degree of protection (IP)	IP65
Number of indicator lights	1
Rated operating voltage Ue
Degree of protection (NEMA)	Other
Type of electric connection	Screw connection
