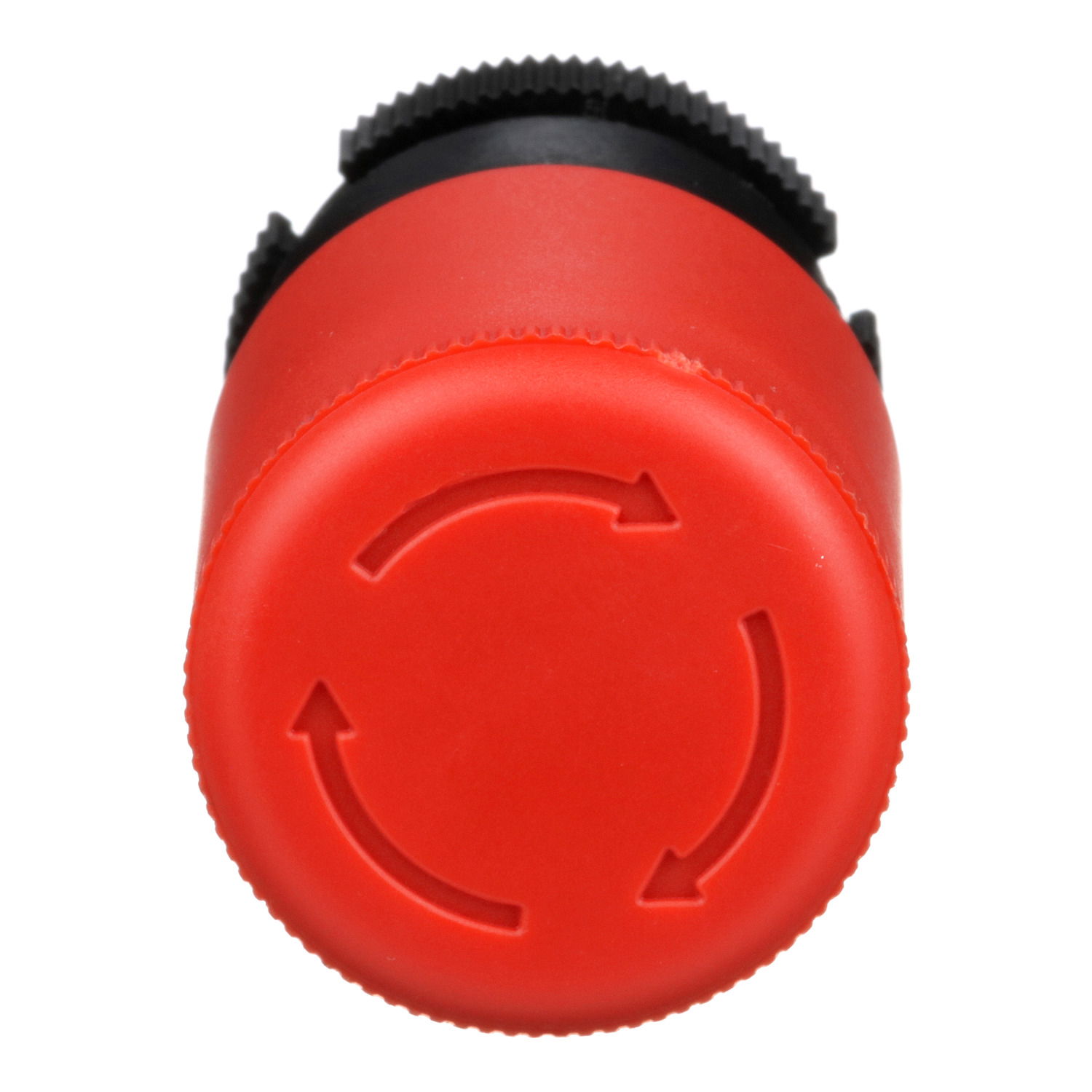

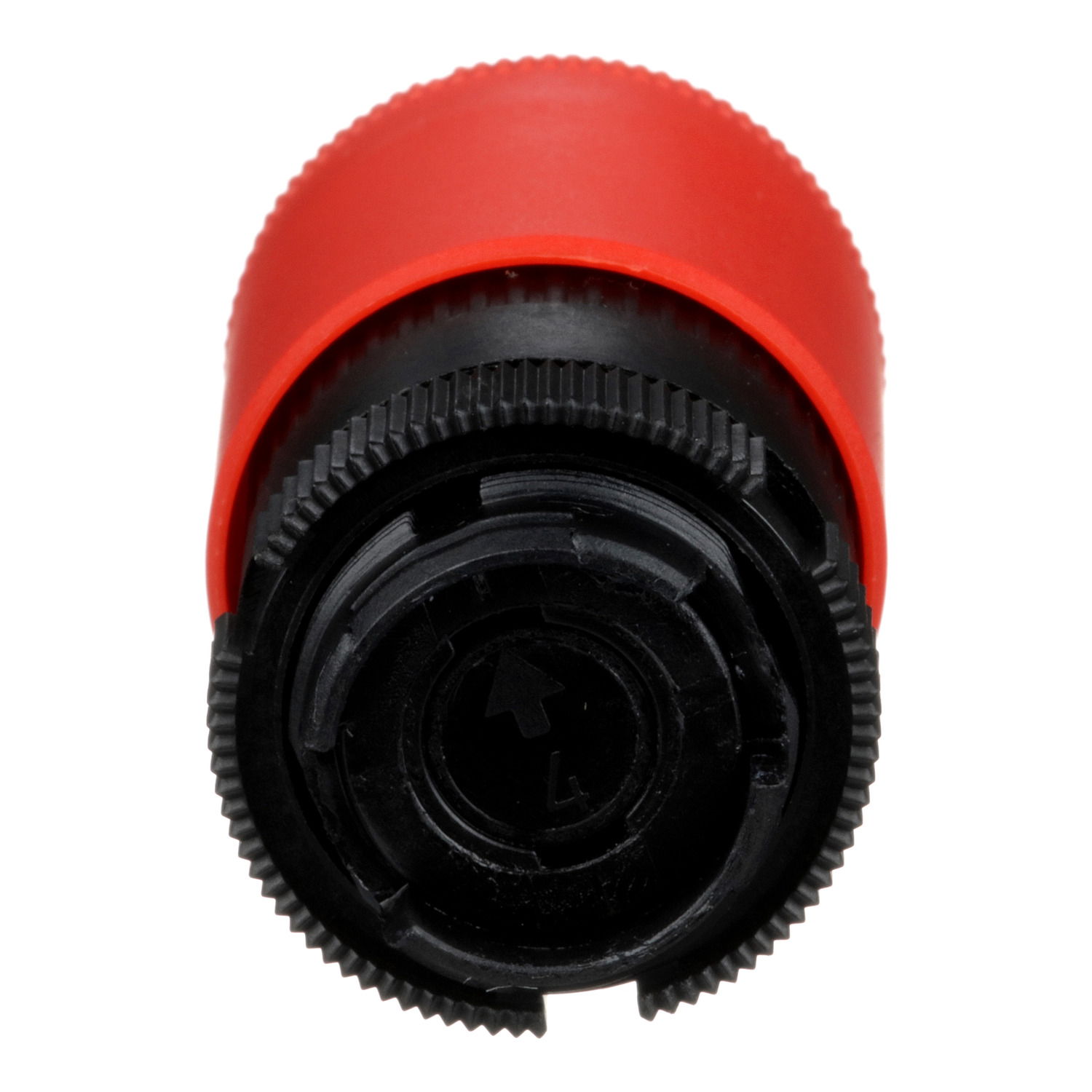

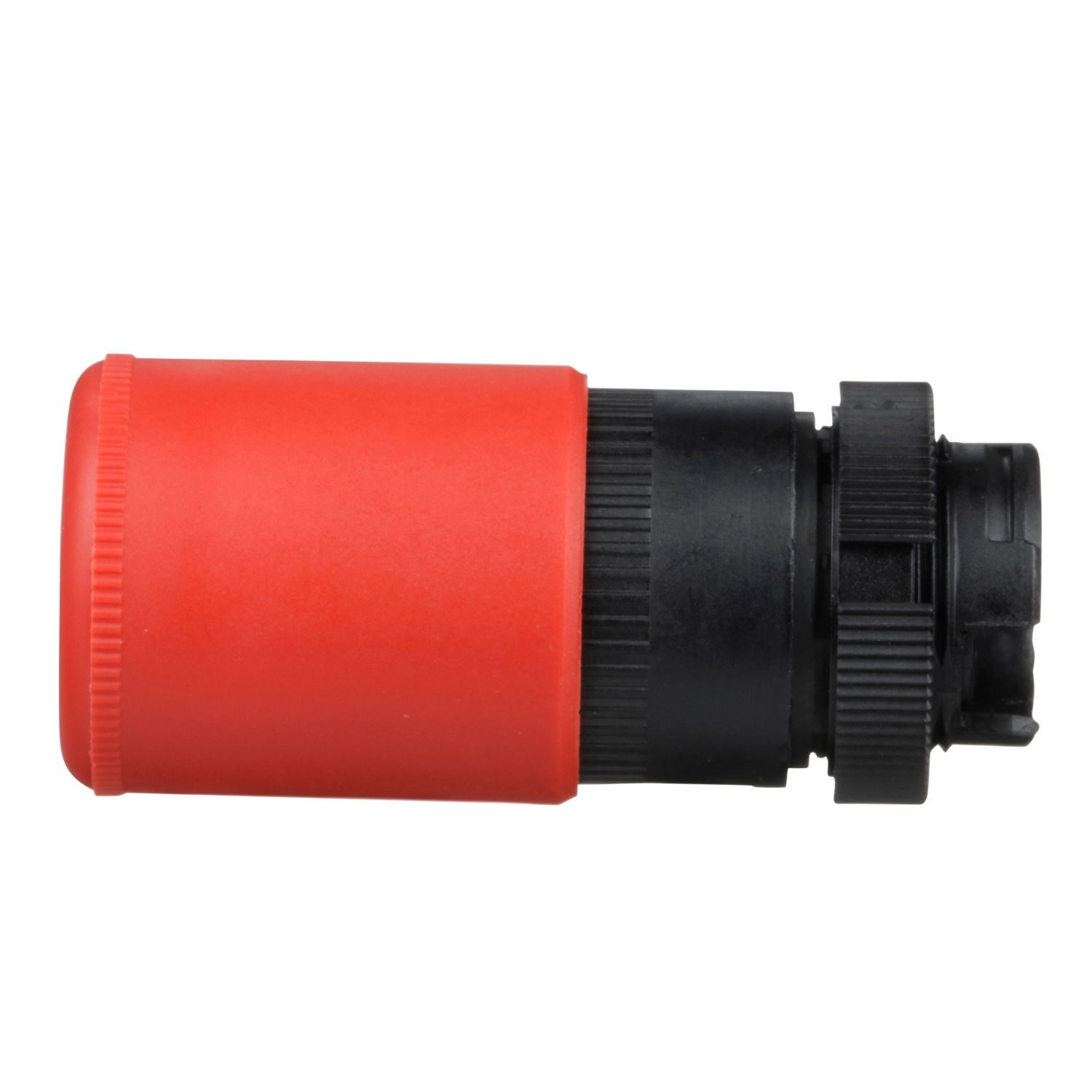

Red Ø30 Emergency stop, switching off head trigger and latching turn release

Red Ø30 Emergency stop, switching off head trigger and latching turn release – Image 2 of 7

Red Ø30 Emergency stop, switching off head trigger and latching turn release – Image 3 of 7

Red Ø30 Emergency stop, switching off head trigger and latching turn release – Image 4 of 7

Red Ø30 Emergency stop, switching off head trigger and latching turn release – Image 5 of 7

Red Ø30 Emergency stop, switching off head trigger and latching turn release – Image 6 of 7

1 / 7

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Red Ø30 Emergency stop, switching off head trigger and latching turn release

Name: Red Ø30 Emergency stop, switching off head trigger and latching turn release
Brand: Schneider Electric
SKU: ZA2BS834
Availability: InStock

Red Ø30 Emergency stop, switching off head trigger and latching turn release by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £21.07 to £33.82 excl. VAT. Voltimum+ members earn 4 points per unit.

This Harmony XAC, emergency stop / shutdown 30mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Product identifiers

SKU: ZA2BS834

EAN: 3389110591750

GTIN: 3389110591750

MPN: ZA2BS834

Loyalty points: 4

Price range: £ 21.07 - £ 33.82 Excl. VAT

Specifications

Diameter cap	30 mm
Colour button	Red/green
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
With lighting	no
Height opening	-
Type of button	Flat
With front ring	no
Unlocking method	Turn-release
Colour front ring	Other
Material front ring	Other
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP65/IP67
Degree of protection (NEMA)	13
Suitable for emergency stop	yes
Switching function latching	yes
