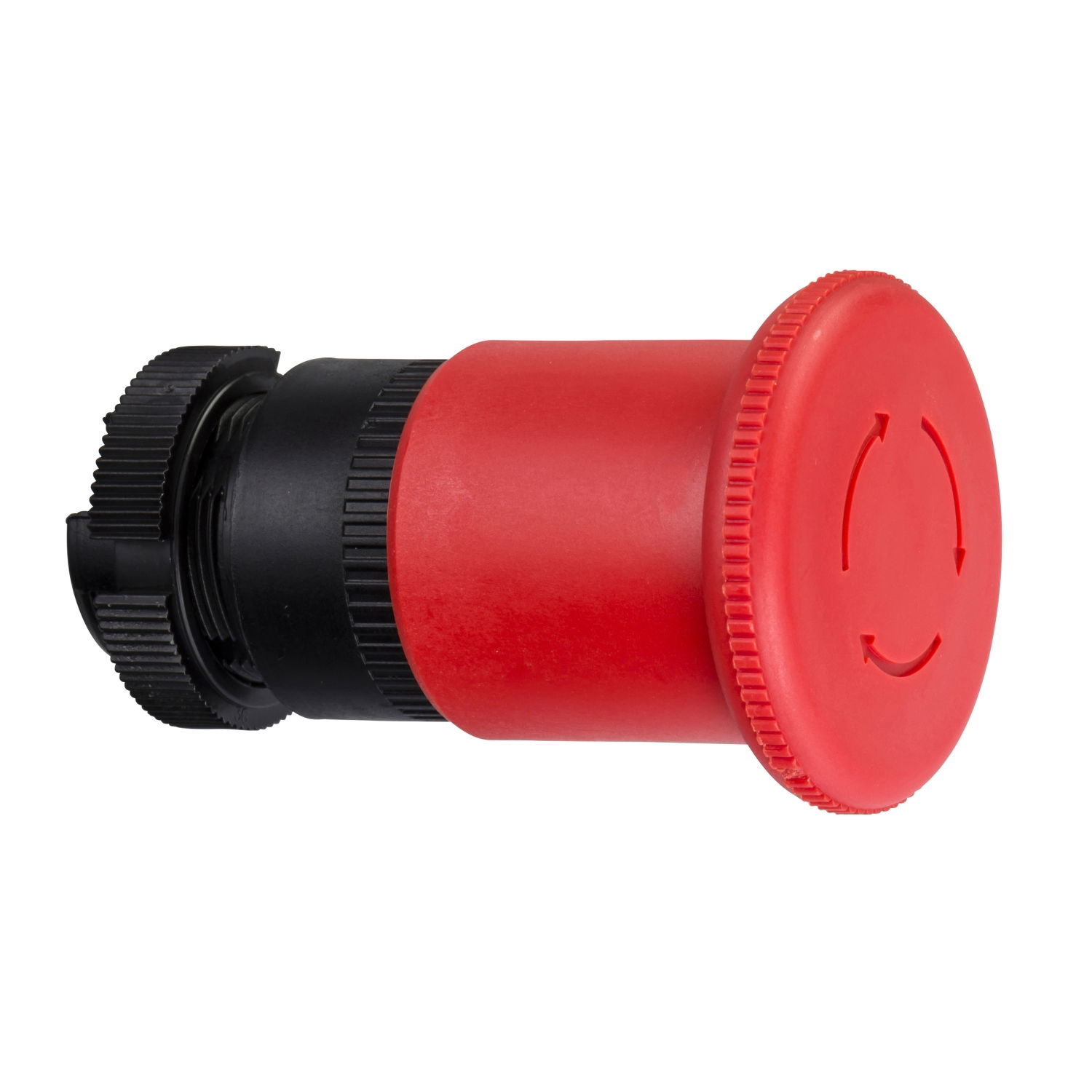

Red Ø40 Emergency stop, switching off head trigger and latching turn release

Red Ø40 Emergency stop, switching off head trigger and latching turn release by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at all of them. Trade prices range from £21.38 to £34.32 excl. VAT. Voltimum+ members earn 5 points per unit.

This Harmony XAC, emergency stop / shutdown 40mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Product identifiers

SKU: ZA2BS844
EAN: 3389110591767
GTIN: 3389110591767
MPN: ZA2BS844

Voltimum+ Loyalty Programme Loyalty points: 5

Price range: £ 21.38 - £ 34.32 Excl. VAT

Categories

Switchgear Industrial Switchgear Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Diameter cap 30 mm
Colour button Red/green
Hole diameter 22.5 mm
Spring-return no
Width opening -
With lighting no
Height opening -
Type of button Flat
Unlocking method Turn-release
Material front ring Other
Suitable for lighting no
Degree of protection (IP) IP65/IP67
Suitable for emergency stop yes

Documents

Declaration of Conformity (Sustainability)

ZA2BS844 REACh Regulation

Open

Instruction sheet

XAC A... Pendant control stations, Instruction Sheet (EN)

Open

Product data sheet

Open

Catalog

Discover the Harmony XAC Pendant control stations catalog

Open

Declaration of Conformity (Sustainability)

ZA2BS844 EU RoHS Directive

Open

Declaration of conformity

XB4/XB5/ZB4/ZB5...BS8/BS9/BT8/BX8/AS8/AS9/AT8/AX8, XALK Emergency stop

Open

Environmental Disclosure

Harmony XA2 Non Illuminated Pushbutton

Open

Circularity Profile

Harmony XA2 Non Illuminated Pushbutton

Open
