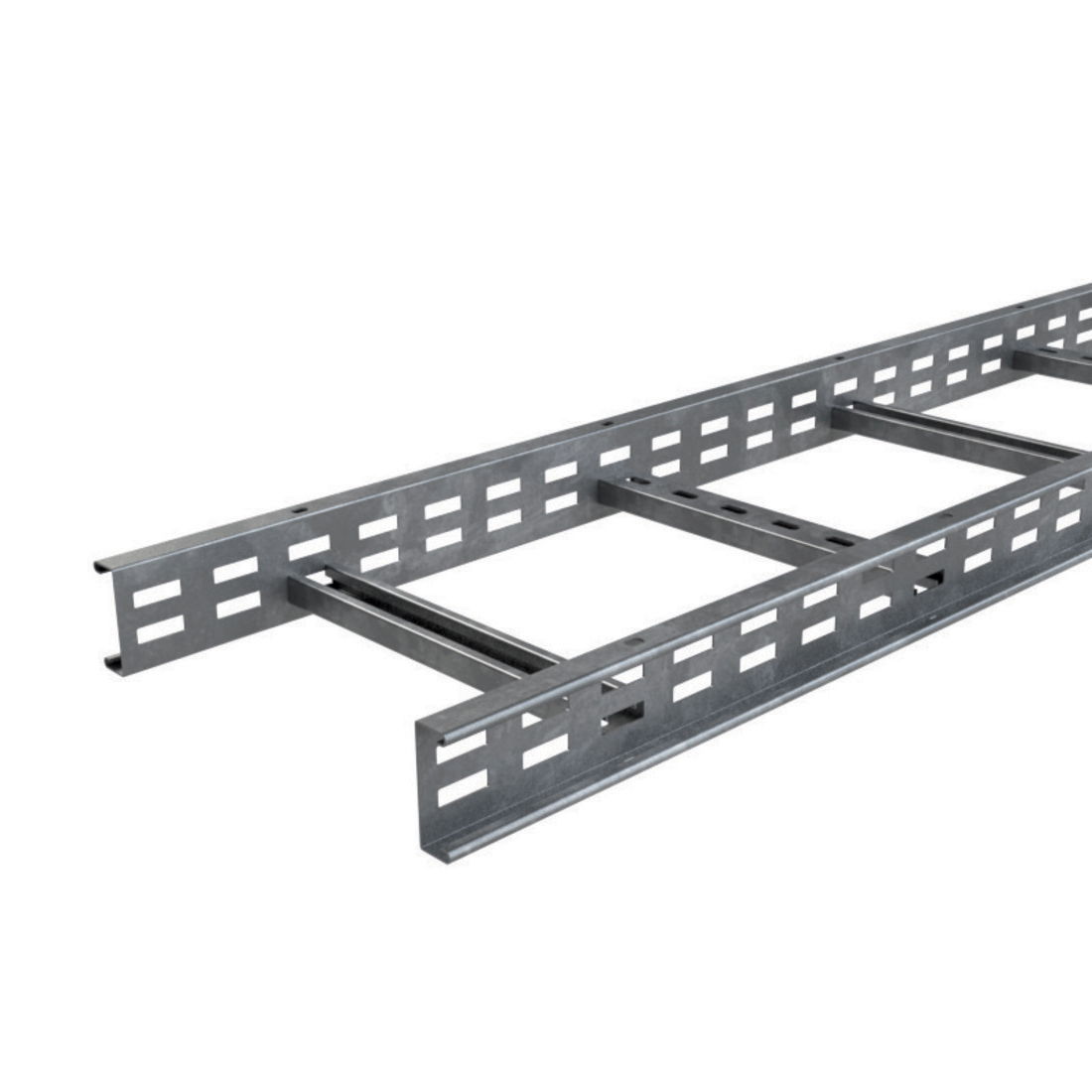

Marshall-Tufflex 600mm x 75mm x 1.5mm Ladder 3m Hot Dip Galvanised
Metal cable ladder is the ideal solution for routing heavy duty cables in large areas that have wide spacing between supports, as is often the case in power plants, airports and heavy industry environments.
Product identifiers
SKU: 215140
EAN: 5020838420929
GTIN: 5020838420929
Price: £ 0.00 Excl. VAT
Categories
Features
|
Width
|
600 mm
|
|
Colour
|
Grey
|
|
Height
|
75 mm
|
|
Length
|
3000 mm
|
|
Weight
|
1.9933 kg/m
|
|
Material
|
Steel
|
|
RAL-number
|
-
|
|
Type of rung
|
Perforated profile
|
|
Fixation rung
|
Welded
|
|
Working length
|
3000 mm
|
|
Material quality
|
-
|
|
Side perforation
|
yes
|
|
Surface protection
|
Hot-dip galvanised
|
|
Type of side joist
|
Profile (open)
|
|
Rung centre spacing
|
-
|
|
Useful cross section
|
-
|
|
Operating temperature
|
-50 - 150 °C
|
|
Vertical cable ladder
|
yes
|
|
Possible support spacing
|
|
|
Suitable for circuit integrity
|
no
|
|
Load test type according to IEC 61537
|
-
|
|
Safe working load according to IEC 61537 with support spacing 0.5 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 1.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 1.5 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 2.0 m
|
2549 N/m
|
|
Safe working load according to IEC 61537 with support spacing 2.5 m
|
1637 N/m
|
|
Safe working load according to IEC 61537 with support spacing 3.0 m
|
1137 N/m
|
|
Safe working load according to IEC 61537 with support spacing 4.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 5.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 6.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 7.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 8.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 9.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 10.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 11.0 m
|
-
|
|
Safe working load according to IEC 61537 with support spacing 12.0 m
|
-
|
