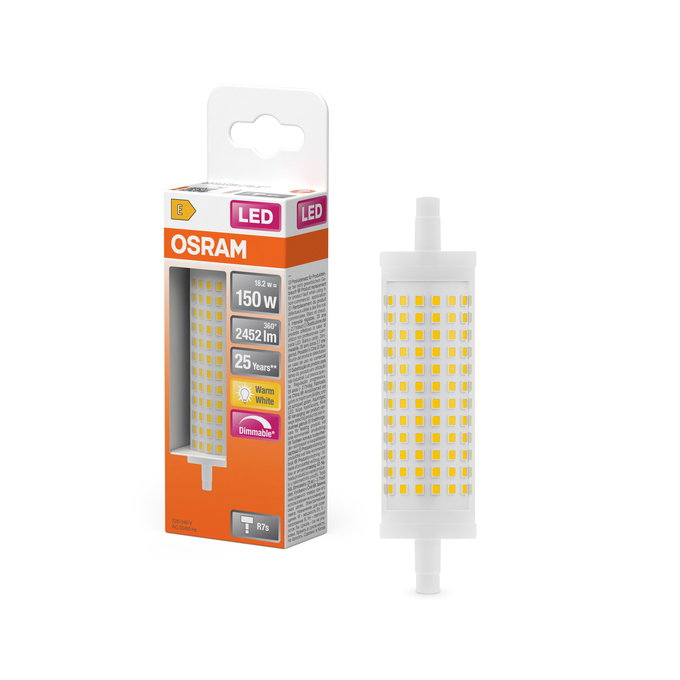

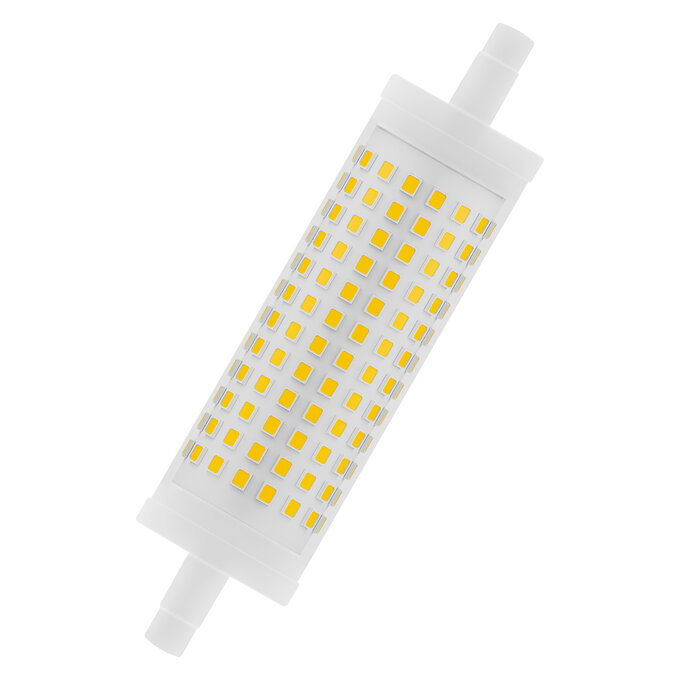

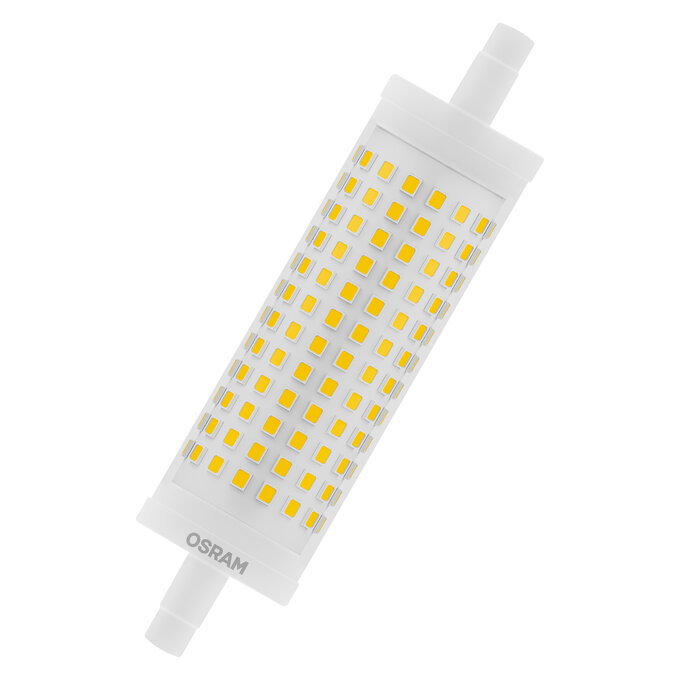

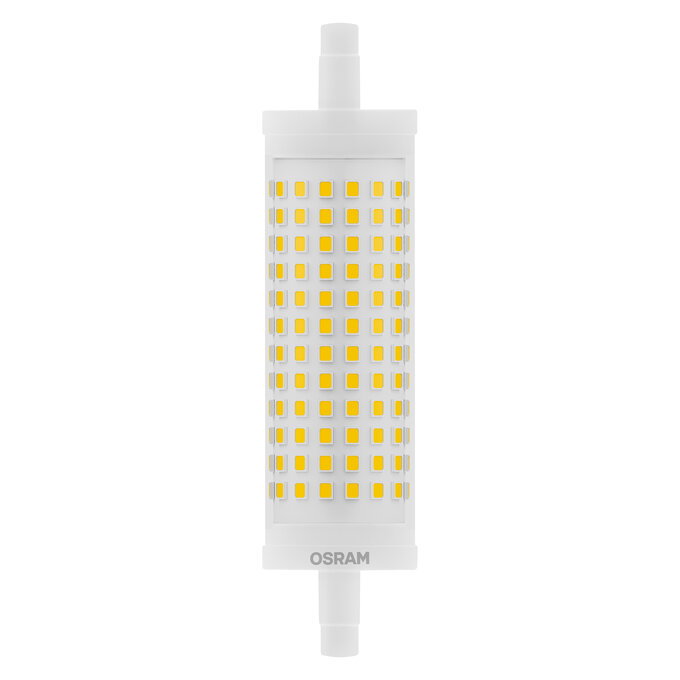

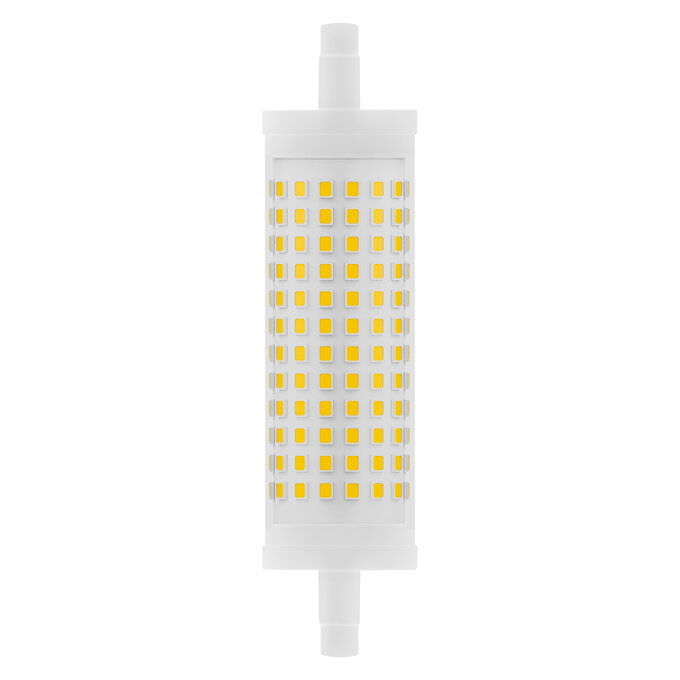

LED Line 118 150 300° DIM 18.2W 827 Clear R7s

LED Line 118 150 300° DIM 18.2W 827 Clear R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Very long lifetime of up to 25,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4058075432574
EAN: 4058075432574
GTIN: 4058075432574
MPN: 4058075432574

Price: £ 28.92 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Capabilities

Dimmable Yes 1)

Electrical data

Nominal wattage 18.2 W
Construction wattage 18.20 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 87 mA
Inrush current 3.2 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 34
Power factor λ > 0.90

Documents

Documents and certificates

Data sheet
Open

Documents And Certificates

Declarations of conformity UKCA – LED LINE SPECIAL
Open
Declarations of conformity UKCA – LED lamp
Open
PRODUCT DATASHEET – LINER7s118.00mm15019W2 700KR7sen
Open
Product datasheet -> old version of product – LEDLine118150300°DIM1 8.2W827ClearR7sen
Open
Product datasheet -> old version of product – LEDLine118150300°DIM1 8.2W827ClearR7sen
Open

Photometric And Lighting Design Files

Spectral power distribution – EPREL data spectral diagram PROF LEDr 2700K
Open
