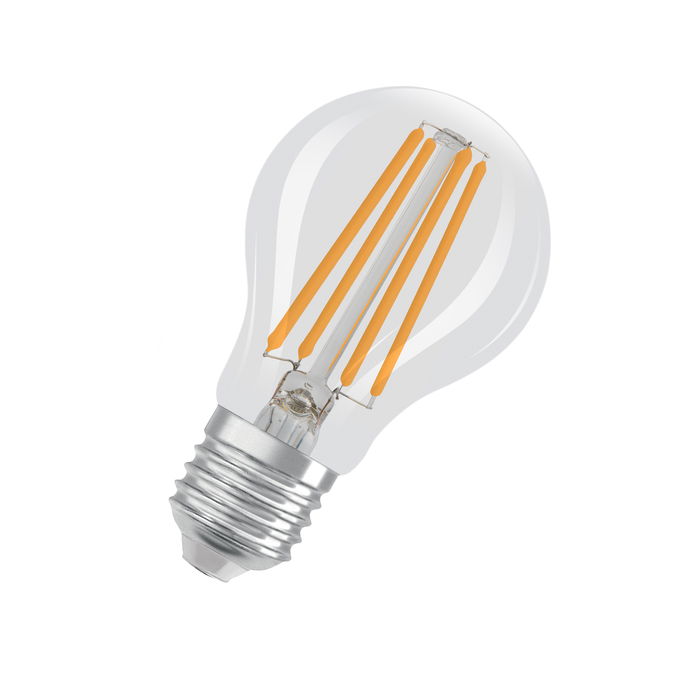

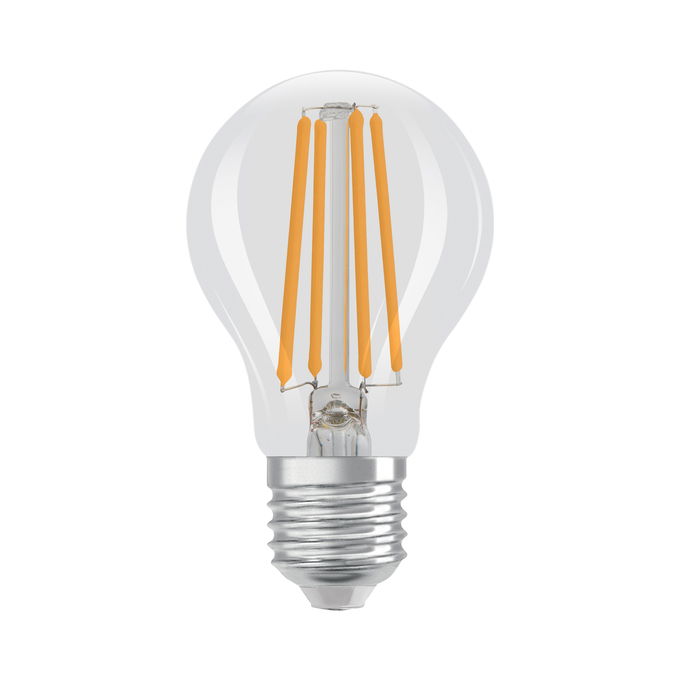

LED Superstar Classic A 100 Filament DIM 11W 827 Clear E27

1 / 3

LED Superstar Classic A 100 Filament DIM 11W 827 Clear E27

LED Superstar Classic A 100 Filament DIM 11W 827 Clear E27 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £8.03 excl. VAT.

Product benefits

Lamps with innovative LED "filament" technology
Lower energy consumption than incandescent or halogen lamps
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lower thermal output (compared with the standard reference product)
Design, dimensions, luminous flux comparable to a halogen lamp

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

Professional LED lamps for line voltage
Dimmable (with many common dimmers, see also www.ledvance.com/dim)
Beam angle: up to 360°
Lamp made of glass
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075245907

EAN: 4058075245907

GTIN: 4058075245907

MPN: 4058075245907

Price: £ 8.03 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C	25000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.96

Capabilities

Dimmable

Yes 1)

Electrical data

Nominal wattage	11 W
Construction wattage	11.00 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	100 W
Nominal current	55 mA
Type of current	AC
Inrush current	0.8 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	93
Max. lamp number on MCB B16 A	150
Total harmonic distortion	≤ 30 %
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

Declarations of conformity UKCA – LED lamp

Open

PRODUCT DATASHEET – LED SUPERSTAR CL A FIL 100 dim 12W/827 E27

Open

PRODUCT DATASHEET – SSTCLASA10011W2700KE27 en

Open

PRODUCT DATASHEET – SSTCLASA10011W2700KE27 en

Open

Product datasheet -> old version of product – LEDSuperstarClassicA10 0FilamentDIM11W827Clea rE27en

Open

Product Images And Graphics

Product image: white background, diagonal – LED CLASSIC A75 FILAMENT E27

Open

Product image: white background, upright – LED CLASSIC A 75 FILAMENT

Open

Product line drawing with letters – LED Classic A100 FIL Clear

Open

Product line drawing with numbers – LED Classic A100 FIL Clear

Open

Product line drawing - technical – LED Classic A100 FIL Clear

Open

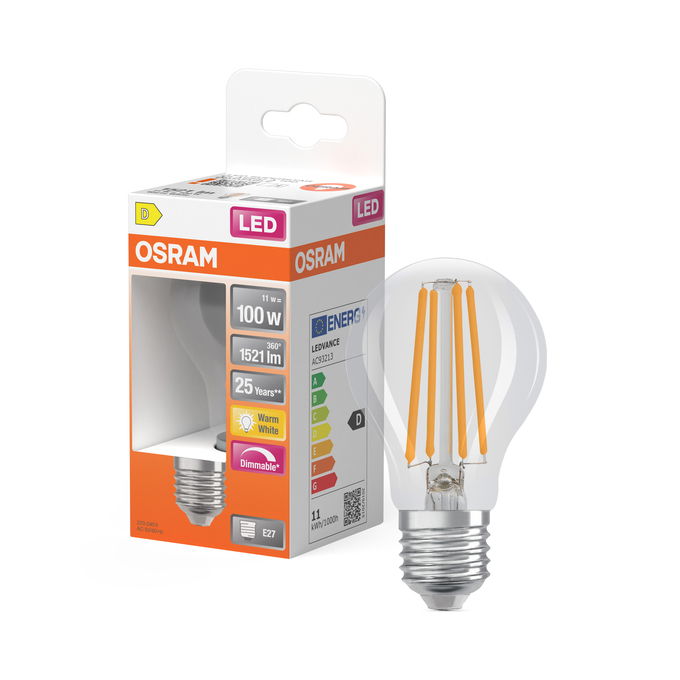

Combo Shot = Product Beauty Shot + Packaging Image – LED SST CLA 100 DIM 11W 827 FIL E27 MiCh

Open

Packaging image, frontal – LED SST CLA 100 DIM 12.0W 827 FIL E27 MiCh

Open

Packaging image, spacial – LED SST CLA 100 DIM 12.0W 827 FIL E27 MiCh

Open

Energy Label 2021 UK – EL-4058075245907-AC323 10

Open

Energy Label 2021 UK – EL-4058075245907-AC411 13

Open

Energy Label 2021 UK – EL-4058075245907-AC242 46

Open

Energy Label 2021 UK – EL-4058075245907-AC451 38

Open

Energy Label 2021 UK – EL-4058075245907-AC932 13

Open

Luminous flux	1521 lm
Luminous efficacy	138 lm/W
Lumen main.fact.at end of nom.life time	0.96
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1.0
Stroboscope effect metric (SVM)	≤0.4

Overall length	105.00 mm
Diameter	60.00 mm
Maximum diameter	60 mm
Product weight	32.00 g

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Base (standard designation)	E27
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	D 1)
Energy consumption	11.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG1

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	Yes
Length	105.00 mm
Height	60.00 mm
Width	60.00 mm
Chromaticity coordinate x	0.4578
Chromaticity coordinate y	0.4101
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	≥0.7
LED light source replaces a fluorescent light source	No
EPREL ID	1403338,523134,1151035,1361283,2521438
Model number	AC32310,AC41113,AC45138,AC24246,AC45138,AC93213

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
