Nominal wattage	27.40 W 1)
Construction wattage	27.40 W
Type of current	DC
Nominal current	285 mA 2)
Max. input current DC	700 mA
Insulation test voltage	1.88 kV
Max. insulation operating voltage	440 V
Max. peak current	1,350 mA
Max. LF current ripple	800 mA
Insulation concept	NON Isolated
ESD class	Criterion B/Severity level 2

Effective Luminous flux at tp = 25 °C (NM)	5,625 lm
Module efficacy at tp = 25 °C	205 lm/W
Luminous flux	5510 lm 1)
Color temperature	3000 K
Color rendering index Ra	80
Light color (designation)	Warm White
Standard deviation of color matching	3 sdcm
Photobiological safety group acc. to EN62778	RG1
Lumen main.fact.at end of nom.life time	0.96

Typ. forward current (HE)	100 mA
Typ. Luminous flux at tp rated (HE)	1,980 lm
Max. forward voltage at tp = 25 °C (HE)	96.4 V
Min. forward voltage at tp rated (HE)	87.2 V
Module efficacy at tp rated (HE)	215 lm/W
Typ. forward current (NM)	285 mA
Typ. Luminous flux at tp rated (NM)	5,510 lm
Max. forward voltage at tp = 25 °C (NM)	100.8 V
Min. forward voltage at tp rated (NM)	91.2 V
Module efficacy at tp rated (NM)	201 lm/W
Typ. forward current (HO)	700 mA
Typ. Luminous flux at tp rated (HO)	12,430 lm
Max. forward voltage at tp = 25 °C (HO)	107.9 V
Min. forward voltage at tp rated (HO)	97.7 V
Module efficacy at tp rated (HO)	174 lm/W

Nominal length	1,400 mm
Nominal width	24 mm
Length	1399.00 mm
Width	23.60 mm
Height	5.50 mm
Wire preparation length, input side	8 - 9 mm
Wire preparation length, output side	8 - 9 mm
Nominal cross section	0.2…0.75 mm²
Product weight	109.7 g

Ambient temperature range	-40…+65 °C
Maximum temperature at tc test point	< 85 °C
Performance temperature tp rated	55 °C

Product remark	Available from September 2026; Operating modes: HE = High Efficiency Mode, NM = Normal Mode, HO = High Output Mode; Production tolerance of luminous flux and efficacy: ±8%; Measurement uncertainty of the stated values: ±10%
Added function	OEM by LEDVANCE

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	Constant Current:285mA
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Claim of equivalent power	No
Chromaticity coordinate x	0,434
Chromaticity coordinate y	0,403
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
LED light source replaces a fluorescent light source	No
EPREL ID	2782741
Model number	AC97775

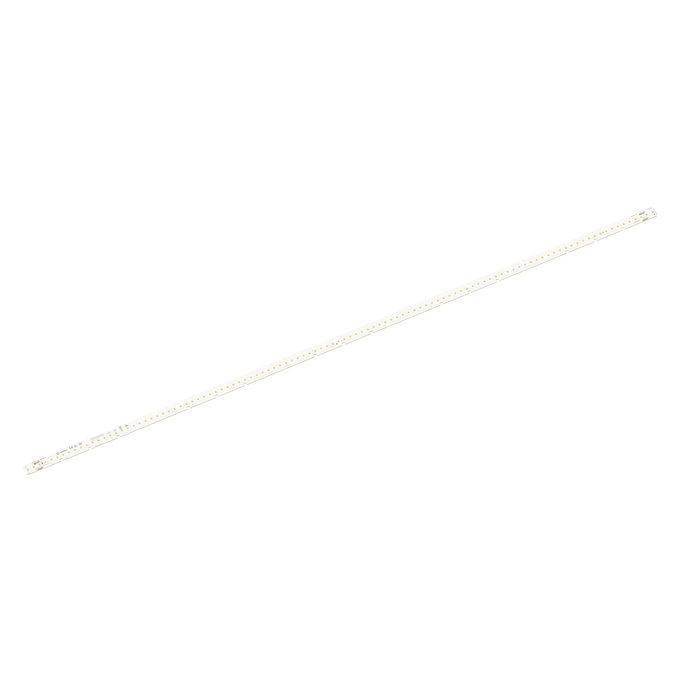

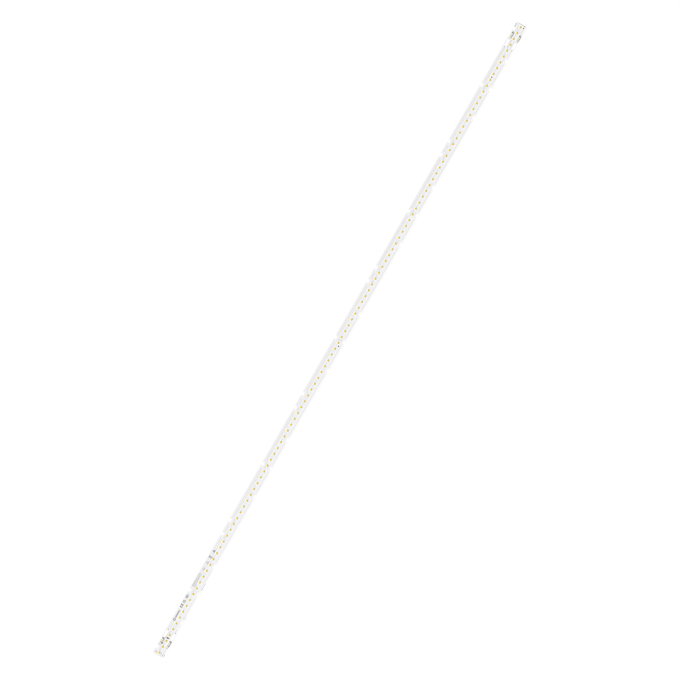

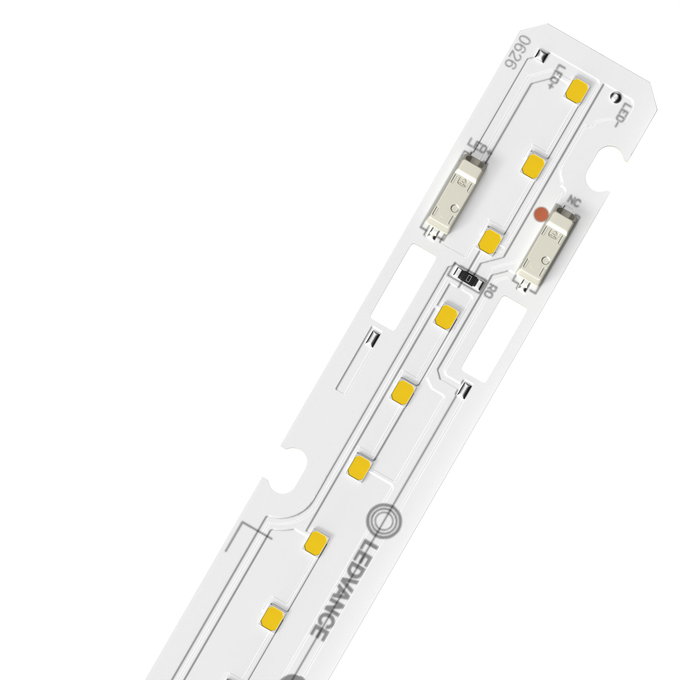

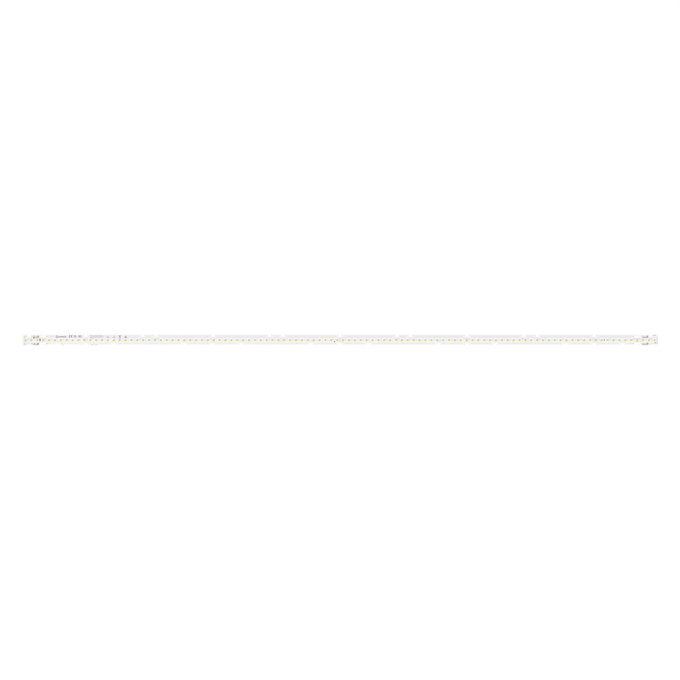

LEL P1 -6250/830/24X1400/HV/4PT
