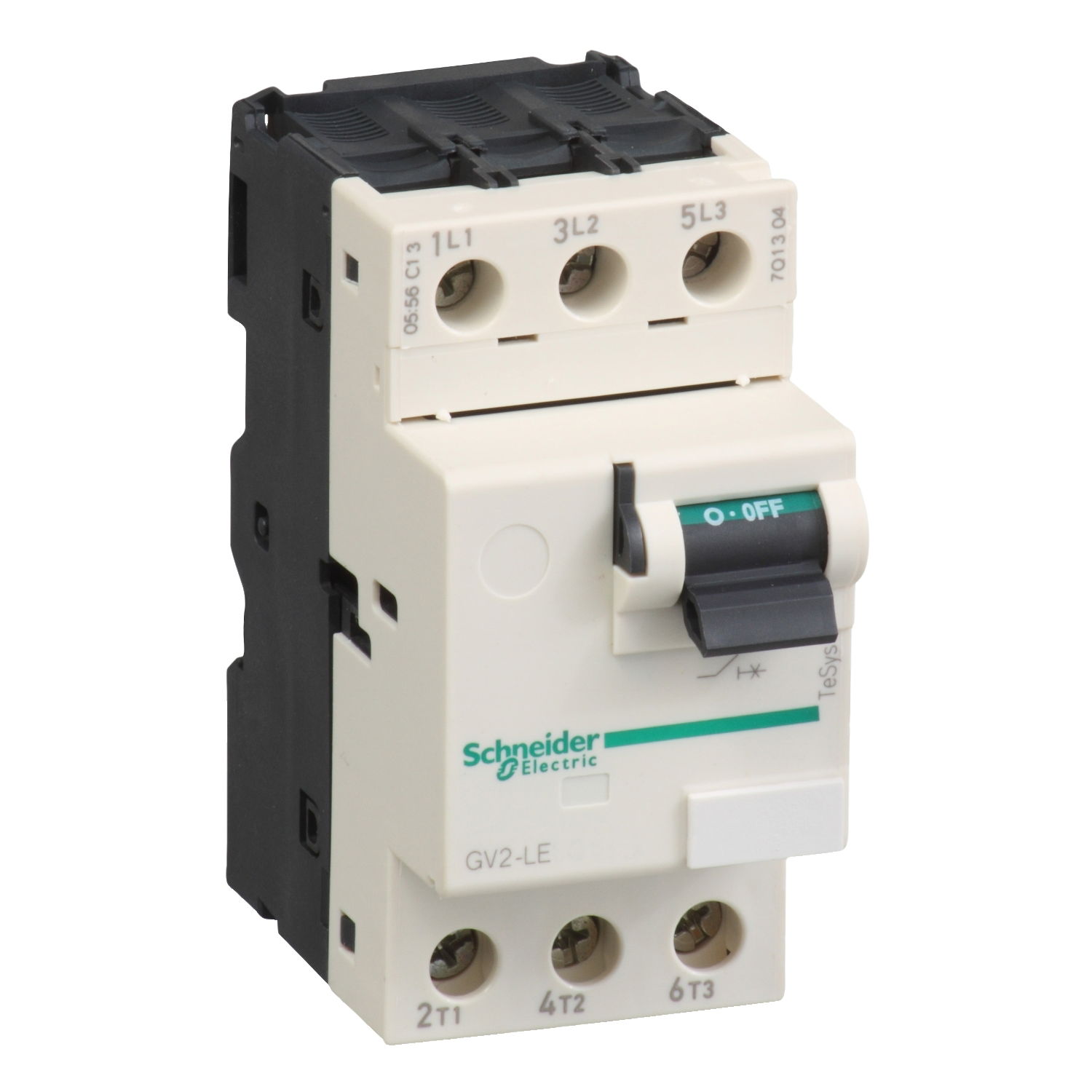

Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, toggle control, screw clamp terminals
1 / 2
Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, toggle control, screw clamp terminals
Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, toggle control, screw clamp terminals by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £47.36 to £74.74 excl. VAT. Voltimum+ members earn 9 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: GV2LE08
EAN: 3389110516937
GTIN: 3389110516937
MPN: GV2LE08
Loyalty points:
9
Price range: £ 47.36 - £ 74.74 Excl. VAT
ETIM group
Specifications
| Depth | 78.5 mm |
| Width | 45 mm |
| Height | 89 mm |
| Power loss | 1.8 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Magnetic |
| Phase failure sensitive | yes |
