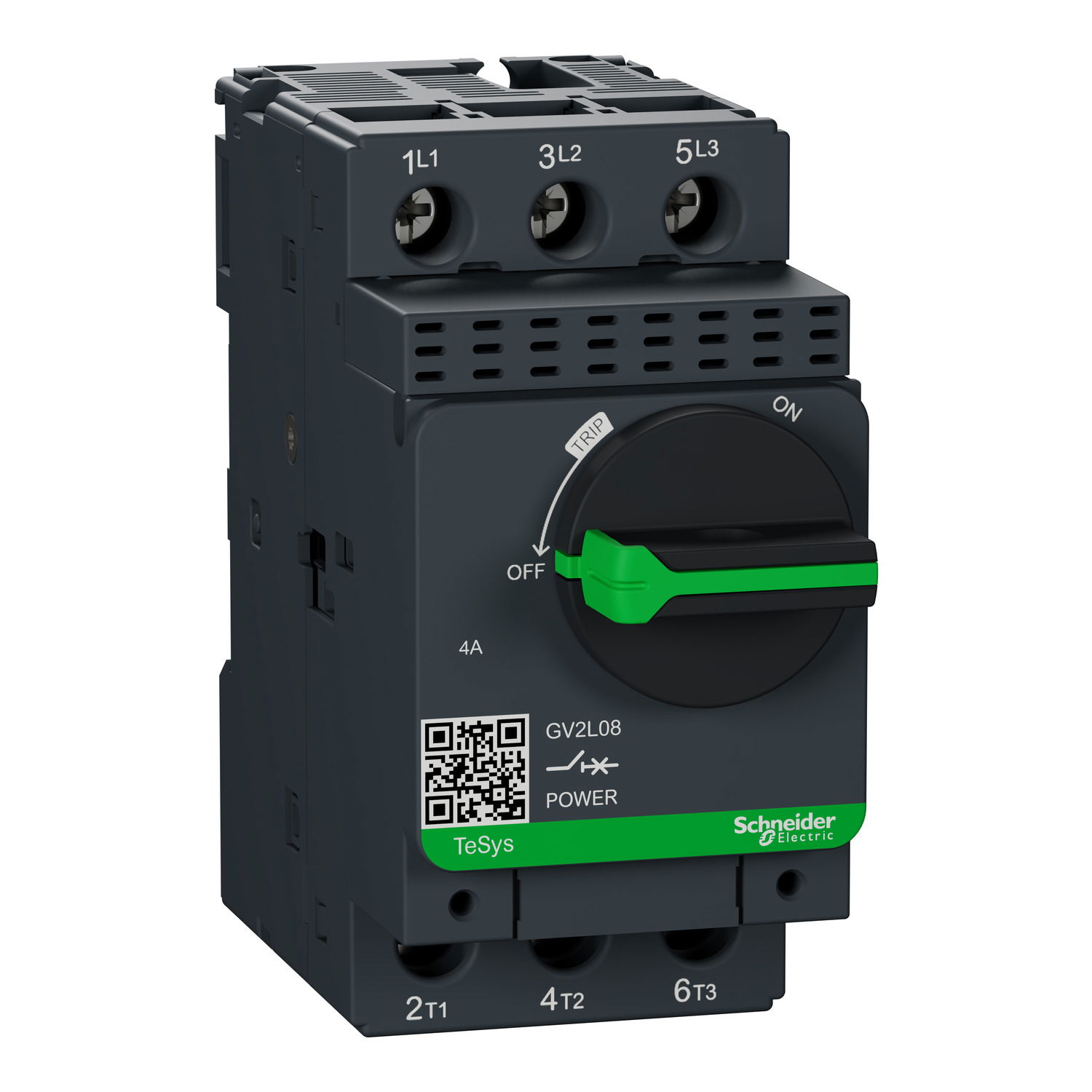

Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, rotary handle, screw clamp terminals
1 / 5
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, rotary handle, screw clamp terminals
Motor circuit breaker, TeSys GV2, 3P, 4 A, magnetic, rotary handle, screw clamp terminals by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 2 of them. Trade prices range from £56.00 to £91.21 excl. VAT. Voltimum+ members earn 11 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: GV2L08
EAN: 3389110213256
GTIN: 3389110213256
MPN: GV2L08
Loyalty points:
11
Price range: £ 56.00 - £ 91.21 Excl. VAT
ETIM group
Specifications
| Depth | 97 mm |
| Width | 45 mm |
| Height | 89 mm |
| Power loss | 1.8 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Magnetic |
| Phase failure sensitive | yes |
