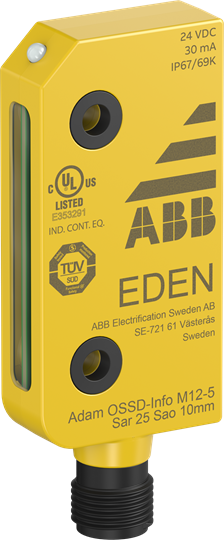

Adam OSSD-Info M12-5 Sensor
Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Adam safety sensor with OSSD signals and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications. Eden is UL approved for use in US and Canada.
Product identifiers
SKU: 2TLA020051R5400
EAN: 7350024480337
GTIN: 7350024480337
MPN: Adam OSSD-Info M12-5
Loyalty points: 38
Price: £ 68.89 Excl. VAT
Categories
Features
|
EFI02386
|
-|-
|
|
EFI03647
|
-
|
|
EFI04011
|
-
|
|
EFI04012
|
-
|
|
EFI07094
|
-
|
|
EFI07111
|
-
|
|
EFI07283
|
-
|
|
EFI07334
|
-
|
|
Voltage type
|
DC
|
|
Width sensor
|
30 mm
|
|
Coating housing
|
Uncoated
|
|
Diameter sensor
|
-
|
|
Height of sensor
|
75.2 mm
|
|
Housing material
|
Plastic
|
|
Length of sensor
|
12 mm
|
|
Type of actuation
|
Transponder
|
|
Switching distance
|
15 mm
|
|
Ambient temperature
|
-40 - 70 °C
|
|
Min. output current
|
-
|
|
With status indication
|
yes
|
|
Rated supply voltage DC
|
24 - 24 V
|
|
Type of switching output
|
PNP
|
|
Construction type housing
|
Special construction
|
|
Degree of protection (IP)
|
IP67
|
|
SIL according to IEC 61508
|
3
|
|
Degree of protection (NEMA)
|
-
|
|
Type of electric connection
|
Connector M12
|
|
Protected switch distance ON
|
10 mm
|
|
Protected switch distance OFF
|
25 mm
|
|
Rated supply voltage AC 50 Hz
|
|
|
Rated supply voltage AC 60 Hz
|
|
|
Suitable for safety functions
|
yes
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Max. output current at protected output
|
0.05 mA
|
|
Mechanical mounting condition for sensor
|
Not flat
|
|
Number of protected semiconductor outputs
|
-
|
|
Type of interface for safety communication
|
Other
|
|
Cross-/short circuit identification possible
|
yes
|
|
Number of protected contact energized outputs
|
-
|
|
Performance level according to EN ISO 13849-1
|
Level e
|
|
With monitoring function downstream switching devices
|
yes
|
|
Number of semiconductor outputs with signalling function
|
1
|
|
Number of contact energized outputs with signalling function
|
|
