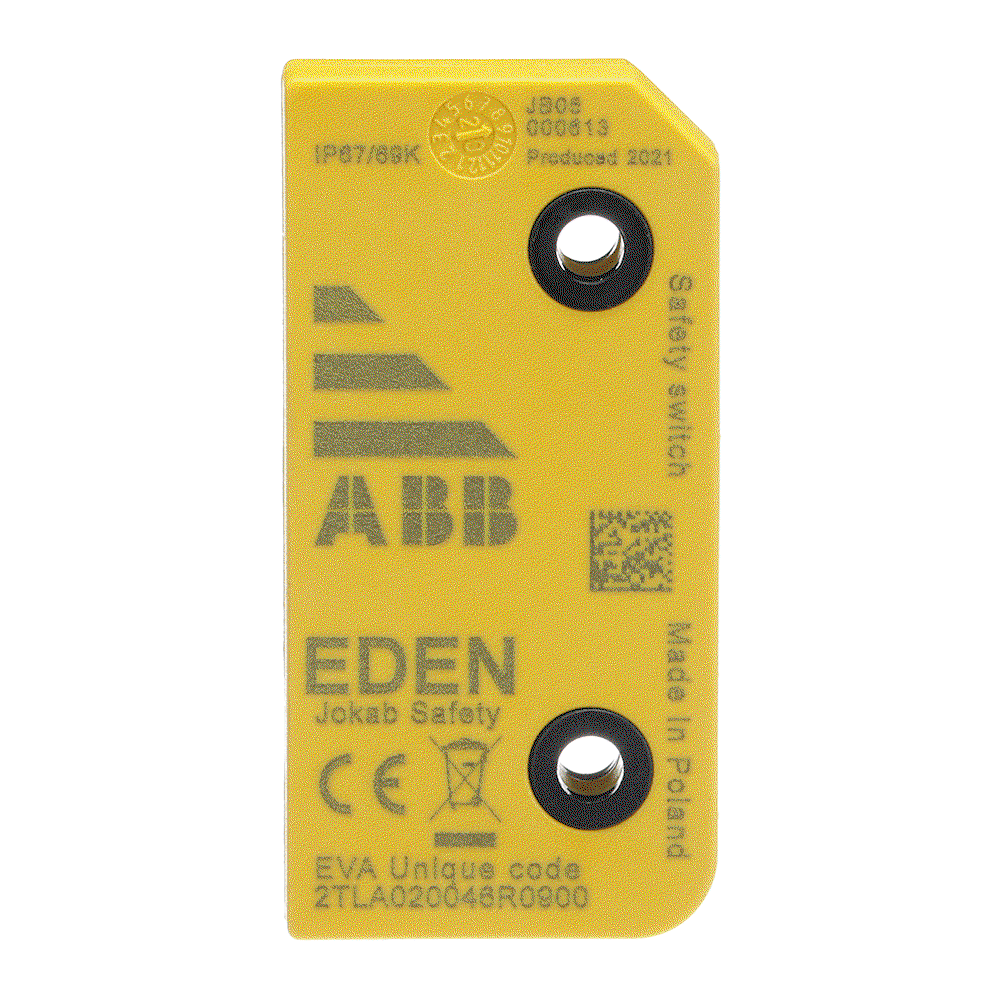

Eva Unique code Actuator

Link copied
SKU
EAN
GTIN
MPN

Eva Unique code Actuator by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £44.16 excl. VAT. Voltimum+ members earn 23 points per unit.

Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring. Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva unique Code, the pair forms a high level coded non-contact safety sensor. Four pieces of DA 2B spacer rings are included. Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications. Eden is UL approved for use in US and Canada.

Voltimum+ Loyalty Programme Loyalty points: 23

Price: £ 44.16 Excl. VAT

Specifications

Voltage type -
Width sensor 30
Coating housing Uncoated
Diameter sensor -
Height of sensor 60
Housing material Plastic
Length of sensor 12
Type of actuation Transponder
Ambient temperature
With status indication no
Type of switching output Other
Degree of protection (IP) IP67
Degree of protection (NEMA) -
Protected switch distance ON 10
Rated supply voltage AC 50 Hz
Suitable for safety functions yes
Explosion safety category for dust None
Mechanical mounting condition for sensor Not flat
Type of interface for safety communication -
Number of protected contact energized outputs -
With monitoring function downstream switching devices -
Number of contact energized outputs with signalling function -

Documents

Deeplink product page

Open

Deeplink REACH

2CMT2022-006480_en_D_REACh - Safety Products.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Eden_DYN_Product_Manual_(EN)_revH_2TLC172271M0201.pdf

Open

Product data sheet

Open

Declaration RoHS

2CMT2022-006499_Safety Products_revC_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity_Eden_Dyn_(EN)_2023_revF_2TLC172133D0201.pdf

Open

Declaration EPD (Environmental Product Declaration)

2TLC010222D0201_en_A_Environmental Product Declaration PEP - EDEN non-contact Safety Sensor.pdf

Open
