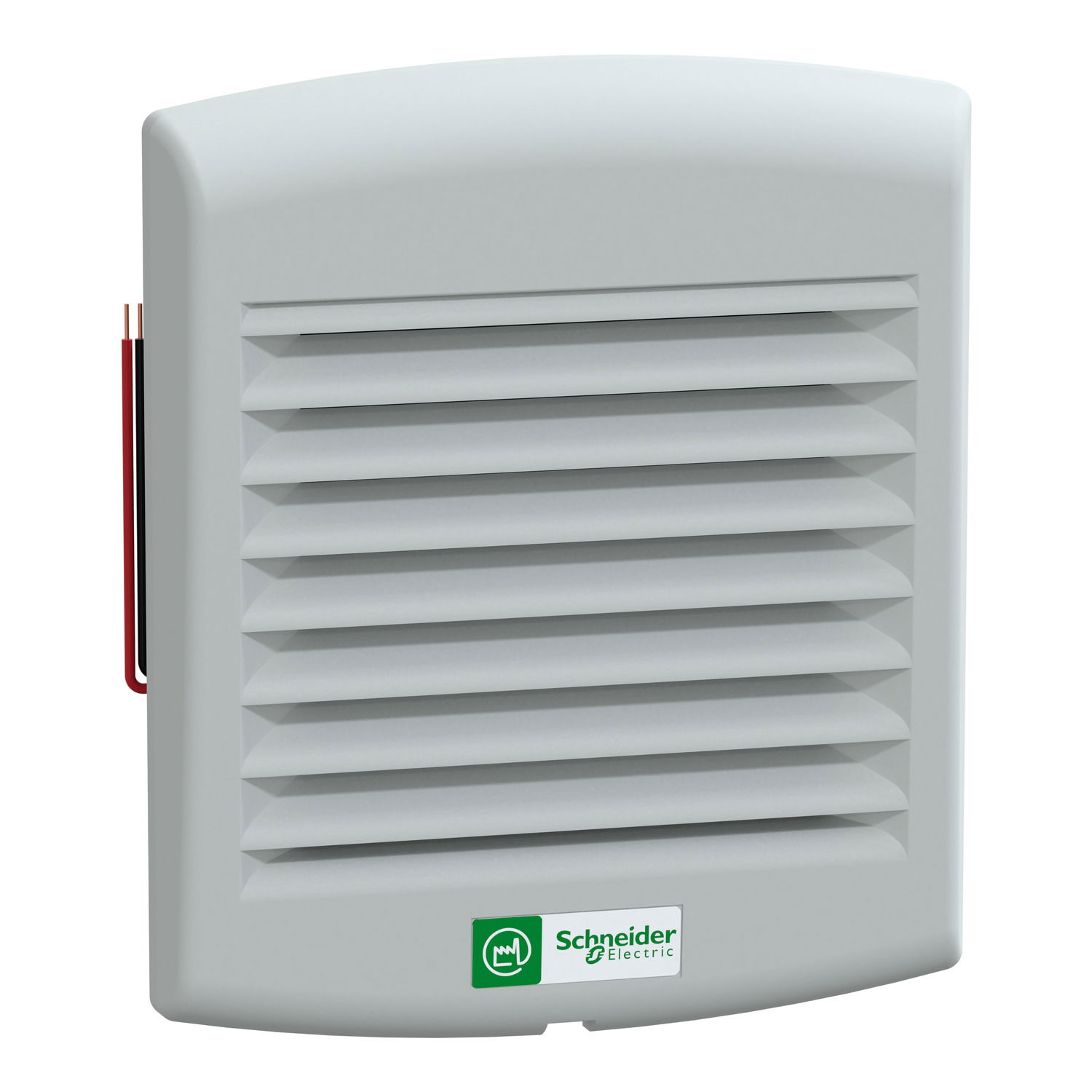

ClimaSys forced vent. IP54, 38m3/h, 24V DC, with outlet grille and filter G2

Link copied
SKU
EAN
GTIN
MPN

ClimaSys forced vent. IP54, 38m3/h, 24V DC, with outlet grille and filter G2 by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £92.58 to £133.57 excl. VAT. Voltimum+ members earn 17 points per unit.

This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 29 Pa It has a power range of 3,6 W and a free flow rate of 58 m3/h It can be used in ambient air temperatures ranging from -10 to 70°C It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 40-41 dB The cut-out dimensions of the fan are 92 x 92 mm This fan also comes with an anti-insect filter included Protection IP54.

Voltimum+ Loyalty Programme Loyalty points: 17

Price range: £ 92.58 - £ 133.57 Excl. VAT

Specifications

Depth 49 mm
Width 117 mm
Colour Grey
Height 137 mm
RAL-number 7035
EMC-version no
Rated power 3.6 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no

Documents

Declaration of Conformity (Sustainability)

NSYCVF38M24DPF REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSTRUCTIONS NSYCVF FANS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Brochure

ClimaSys Thermal Management System Brochure

Open

Declaration of Conformity (Sustainability)

NSYCVF38M24DPF EU RoHS Directive

Open

Declaration of conformity

Declaration of conformity UE Climasys CVF_V03-EN

Open
