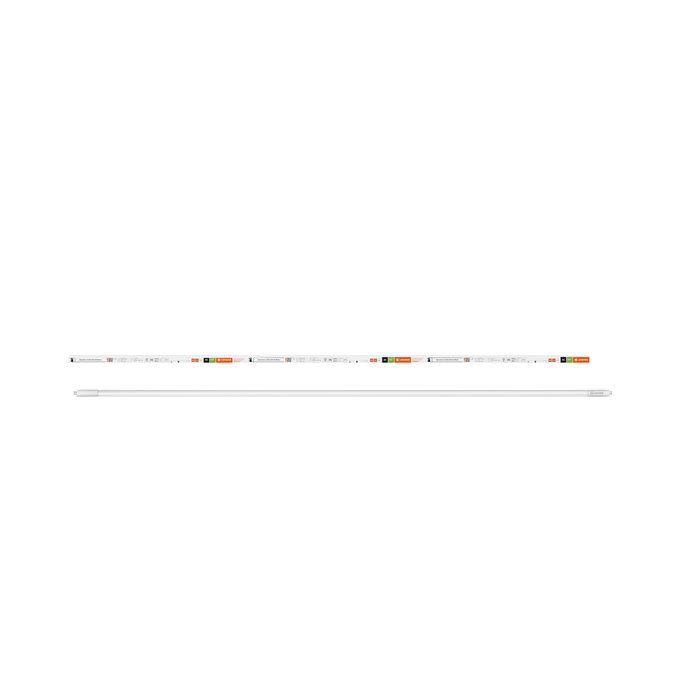

LED TUBE T5 AC HE28 PERFORMANCE 1149 mm 16W 840

Product benefits

• No bending thanks to glass technology
• Shatter protection thanks to special PET coating
• High luminous flux for sophisticated lighting tasks

Areas of application

• General illumination within ambient temperatures from -20…+45 °C
• Offices, public buildings
• Supermarkets and department stores
• Industry

Product features

• LED replacement for T5 fluorescent lamps with G5 base on AC mains
• Lamp tube made of glass with splinter protection e.g. for food industry applications
• High color consistency: ≤ 5 sdcm
• Lifetime up to 50,000 h
• Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
• Type of protection: IP20

Legal advice

• When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Not suitable for operation with electronic control gear.
• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
• The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
• After rewiring of a luminaire the installer will be responsible for all technical and safety consequences.
• All electrical connections must be made by a qualified person.
• Disconnect mains before installation.
• Lamp not suitable for emergency operation.

References / Links

• For current information see www.ledvance.com/ledtube
