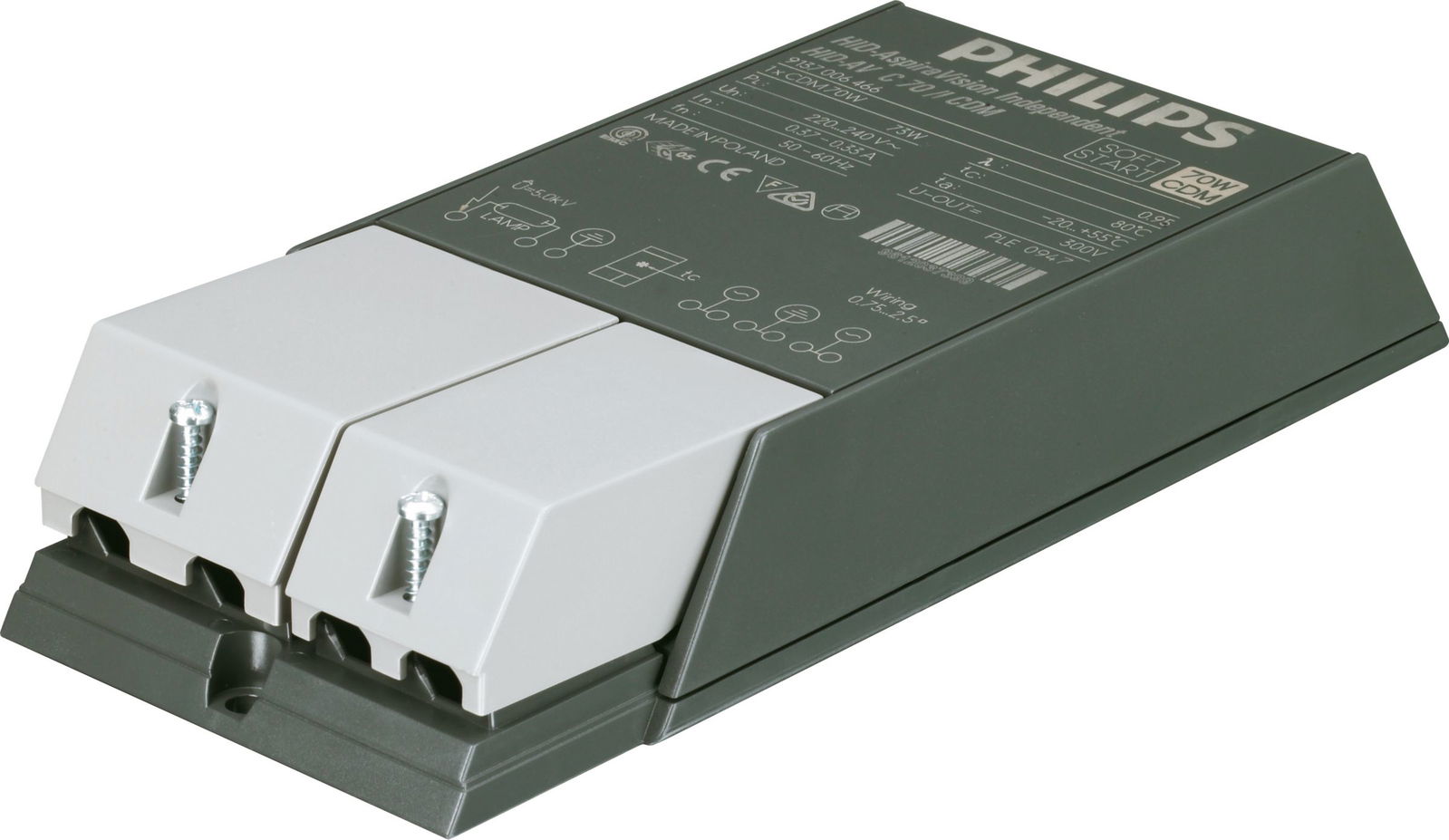

Ballast - AspiraVision Compact for CDM
AspiraVision is the mark of excellence in HID electronic gear technology – high-end, compact, lightweight and easy to use, with added features for optimal performance of 35, 50 and 70 W CDM lamps. The recently added switching function provides maximum flexibility for users by integrating three different wattage choices into a single driver.
Product identifiers
SKU: 913700683866
EAN: 8718291233107
GTIN: 8718291233114
MPN: AspiraVision Compact for CDM
Loyalty points:
33
Price: £ 56.69 Excl. VAT
Categories
Features
|
Model
|
Electronic
|
|

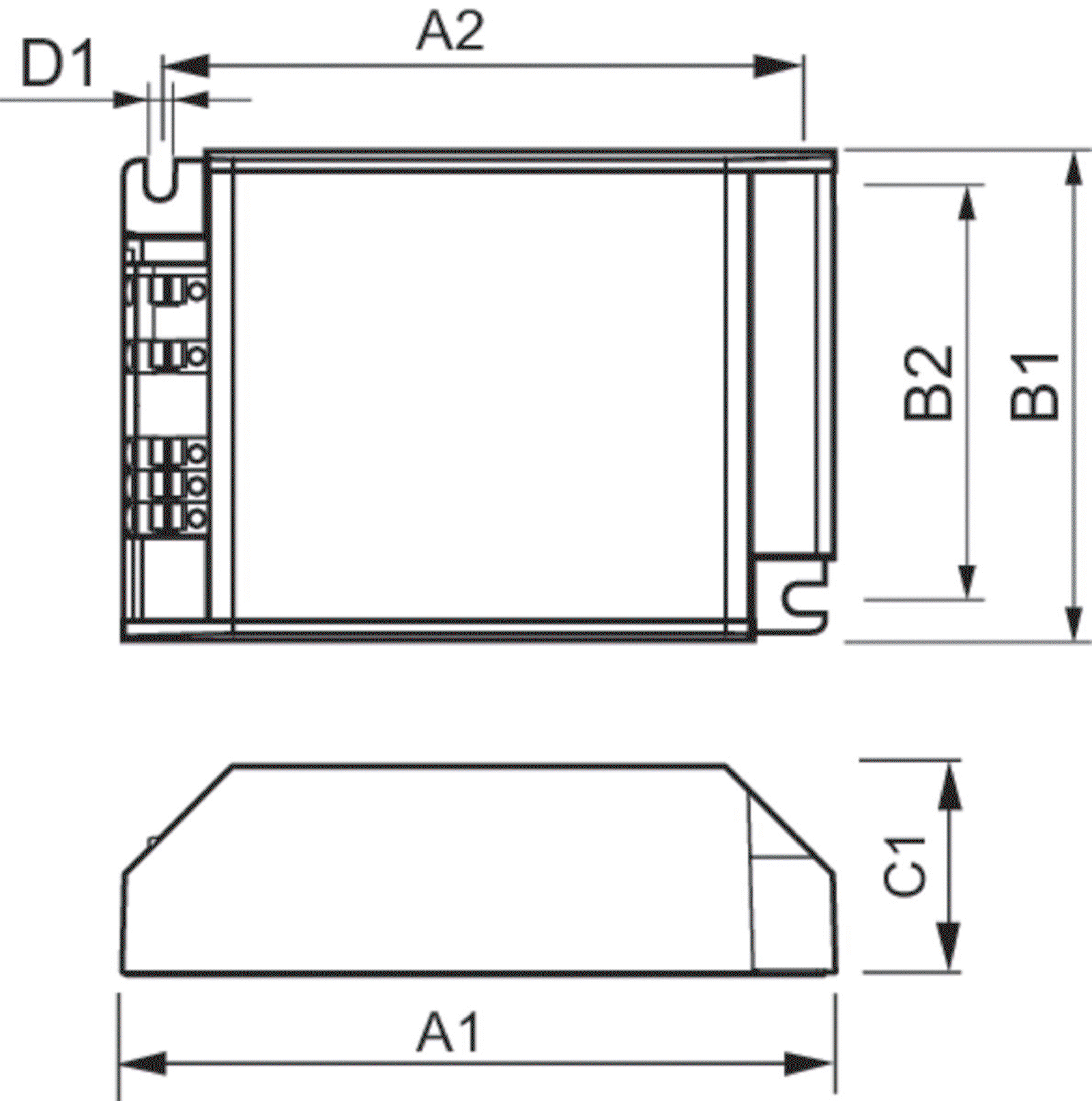

Width
|
75 mm
|
|
Height
|
32 mm
|
|
Length
|
110 mm
|
|
Housing
|
Plastic housing
|
|
Dimming RF
|
no
|
|
Dimming DMX
|
no
|
|
Dimming DSI
|
no
|
|
Dimming DALI
|
no
|
|
Dimming 0-10 V
|
no
|
|
Dimming 1-10 V
|
no
|
|
Dimming Zigbee
|
no
|
|
Multiwatt model
|
yes
|
|
No dim function
|
yes
|
|
Nominal voltage
|
220 - 240 V
|
|
For lamp type HI
|
yes
|
|
For lamp type HM
|
no
|
|
For lamp type HS
|
no
|
|
For lamp type LS
|
no
|
|
For lamp type T7
|
no
|
|
For lamp type T-R
|
no
|
|
For lamp type T-U
|
no
|
|
For lamp type T16
|
no
|
|
For lamp type T26
|
no
|
|
For lamp type T38
|
no
|
|
Dimming LineSwitch
|
no
|
|
For lamp type TC-D
|
no
|
|
For lamp type TC-F
|
no
|
|
For lamp type TC-L
|
no
|
|
For lamp type TC-S
|
no
|
|
For lamp type TC-T
|
no
|
|
With strain relief
|
no
|
|
For lamp type T16-R
|
no
|
|
For lamp type TC-DD
|
no
|
|
Dimming programmable
|
no
|
|
For lamp type TC-DEL
|
no
|
|
For lamp type TC-QEL
|
no
|
|
For lamp type TC-SEL
|
no
|
|
For lamp type TC-TEL
|
no
|
|
Dimming Touch and Dim
|
no
|
|
Operation by Bluetooth
|
no
|
|
Compatible with Casambi
|
no
|
|
IFTTT support available
|
no
|
|
Suitable for lamp power
|
35 - 70 W
|
|
Dimming with push-button
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Dimming Sine Wave Reduction
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Suitable for number of lamps
|
1 - 1
|
|
Compatible with Apple HomeKit
|
no
|
|
Compatible with Google Assistant
|
no
|
|
Dimming mains voltage modulation
|
no
|
|
Suitable for lamp power (1 lamp)
|
35 - 70 W
|
|
Suitable for lamp power (2 lamps)
|
|
|
Suitable for lamp power (3 lamps)
|
|
|
Suitable for lamp power (4 lamps)
|
|
|
Dimming potentiometer (integrated)
|
no
|
|
Dimming phase cut-on (leading edge)
|
no
|
|
Dimming phase cut-off (trailing edge)
|
no
|
|
Protection class according to IEC 61140
|
None
|
|
Dimming manufacturer's proprietary system
|
no
|
