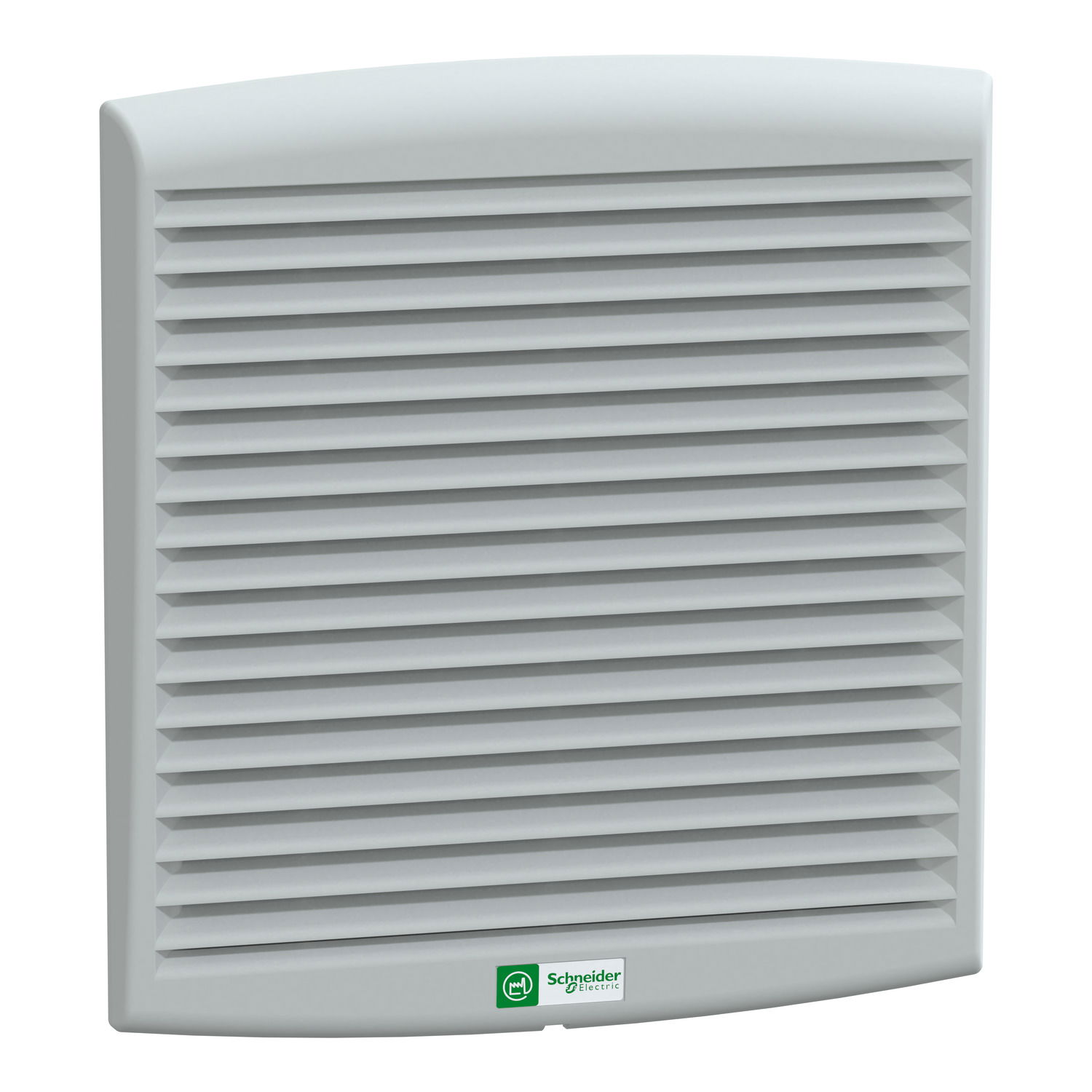

ClimaSys forced vent. IP54, 300m3/h, 24V DC, with outlet grille and filter G2

Link copied
SKU
EAN
GTIN
MPN

ClimaSys forced vent. IP54, 300m3/h, 24V DC, with outlet grille and filter G2 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Rexel Group. It is currently in stock at 1 of them. Trade price £357.06 excl. VAT. Voltimum+ members earn 45 points per unit.

ClimaSys CV Axial motor ventilator. 24V DC. 13 W 50 Hz. Free flow rate with standard filter of 262 m3/h at 50 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Voltimum+ Loyalty Programme Loyalty points: 45

Price: £ 357.06 Excl. VAT

Specifications

Depth 103.4 mm
Width 248 mm
Colour Grey
Height 268 mm
RAL-number 7035
EMC-version no
Rated power 13 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no

Documents

Declaration of Conformity (Sustainability)

NSYCVF300M24DPF REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSTRUCTIONS NSYCVF FANS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Brochure

ClimaSys Thermal Management System Brochure

Open

Declaration of Conformity (Sustainability)

NSYCVF300M24DPF EU RoHS Directive

Open

Declaration of conformity

Declaration of conformity UE Climasys CVF_V03-EN

Open
