LED Star Classic P 25 Filament 2.5W 827 Clear B22d

1 / 2

LED Star Classic P 25 Filament 2.5W 827 Clear B22d

LED Star Classic P 25 Filament 2.5W 827 Clear B22d by LEDVANCE is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £2.57 to £2.71 excl. VAT.

Product benefits

Lower energy consumption than incandescent or halogen lamps
Lamps with innovative LED "filament" technology
No UV and near-IR radiation in the light beam
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lower thermal output (compared with the standard reference product)
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

Professional LED lamps for line voltage
Not dimmable
Beam angle: up to 300°
Lifetime up to 15,000 h
Lamp made of glass
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075450592

EAN: 4058075450592

GTIN: 4058075450592

MPN: 4058075450592

Price range: £ 2.57 - £ 2.71 Excl. VAT

Specifications

Electrical data

Nominal wattage	2.5 W
Construction wattage	2.50 W
Nominal voltage	220…240 V
Operating mode	AC Mains
Claimed equiv. conventional lamp power	25 W
Nominal current	19 mA
Type of current	AC
Inrush current	1.8 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	250
Max. lamp number on MCB B16 A	400
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

PRODUCT DATASHEET – LED STAR CL P FIL 25 non-dim 2,5W/827 B22d

Open

PRODUCT DATASHEET – STCLASP25CL2.5W2700KB2 2den

Open

Product Images And Graphics

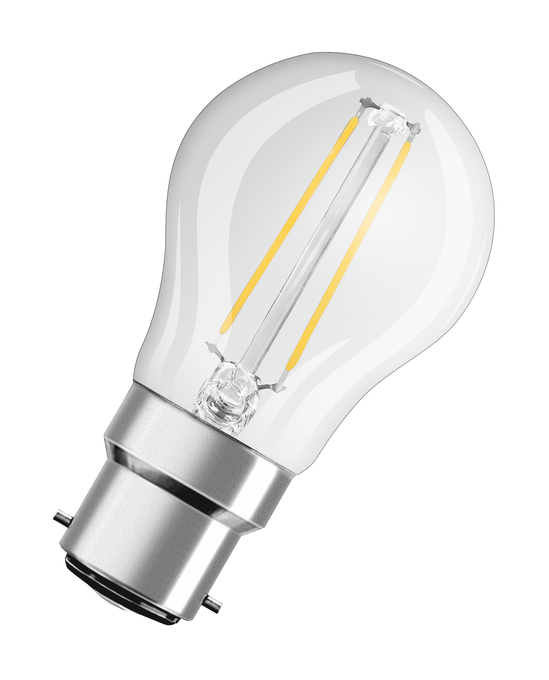

Product image: white background, diagonal – 597746_RFCLP25 2 W/827 B22D clear

Open

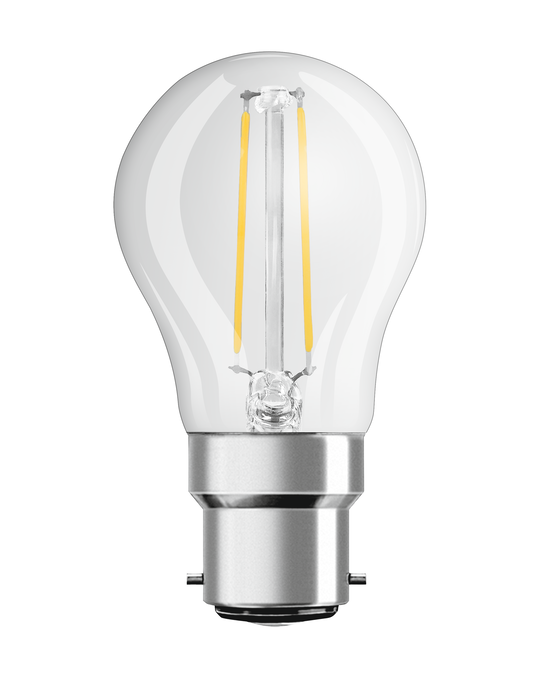

Product image: white background, upright – 597759_RFCLP25 2 W/827 B22D clear

Open

Product line drawing with letters – 600985_RFCLP25 2 W/827 B22D clear

Open

Product line drawing with numbers – LED CLASSIC B FILAMENT CLEAR B22d

Open

Product line drawing, front, no dimensions – 600992_RFCLP25 2 W/827 B22D clear

Open

Packaging image, frontal – LED ST CLP 25 2.5W 827 FIL B22d MiCh

Open

Packaging image, spacial – LED ST CLP 25 2.5W 827 FIL B22d MiCh

Open

Energy Label 2021 UK – EL-4058075450592-AC324 52

Open

Energy Label 2021 UK – EL-4058075450592-AC174 86

Open

Luminous flux	250 lm
Nominal useful luminous flux 90°	250 lm
Luminous efficacy	100 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	≤0.4

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	76.00 mm
Diameter	45.00 mm
Maximum diameter	45 mm
Product weight	20.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	60 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

LED Star Classic P 25 Filament 2.5W 827 Clear B22d

Product benefits

Areas of application

Product features

Safety advice

Categories

ETIM group

Specifications

Documents

Base (standard designation)	B22d
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	3.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC
Photobiological safety group acc. to EN62778	RG0

ILCOS	DRBP/C-2,1/827-220/240-B22D-45
Order reference	LEDSCLP25 2,5W/

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	B22d
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	0 W
Claim of equivalent power	Yes
Length	76.00 mm
Height	45.00 mm
Width	45.00 mm
Chromaticity coordinate x	0.463
Chromaticity coordinate y	0.420
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.40
LED light source replaces a fluorescent light source	No
EPREL ID	1402965,523062
Model number	AC32452,AC17486

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
