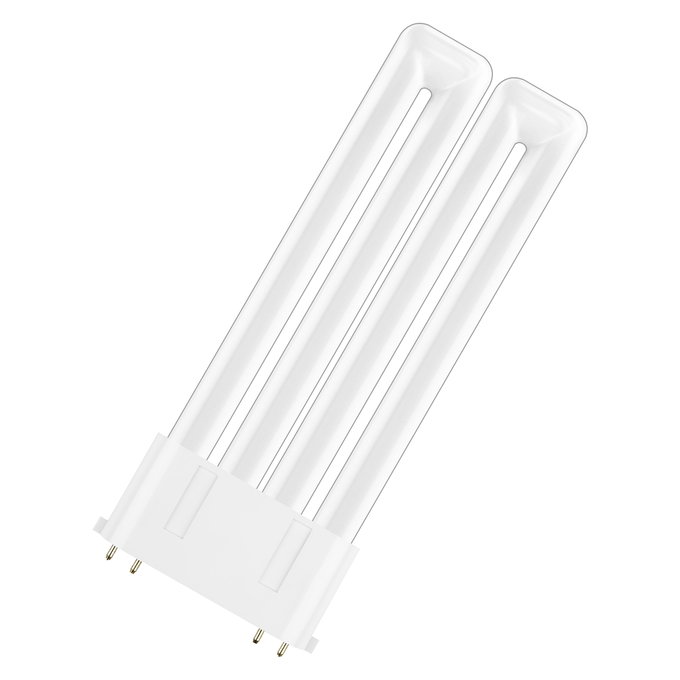

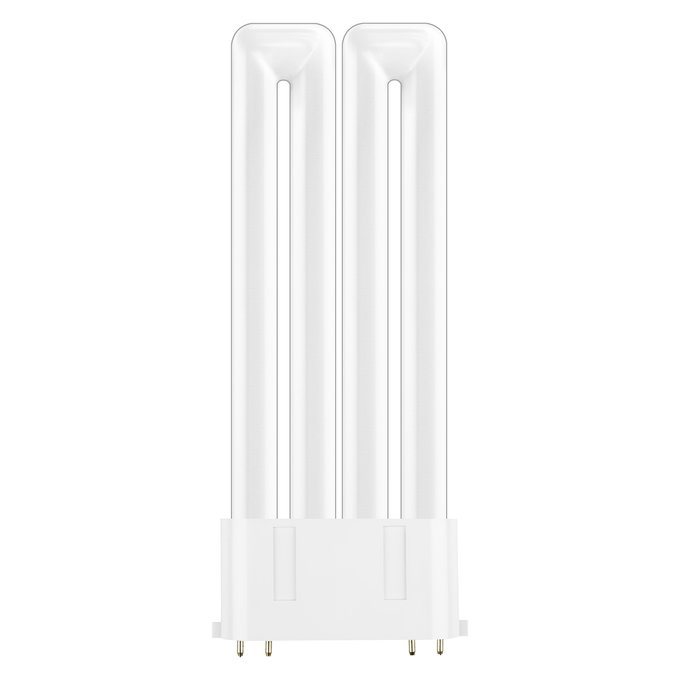

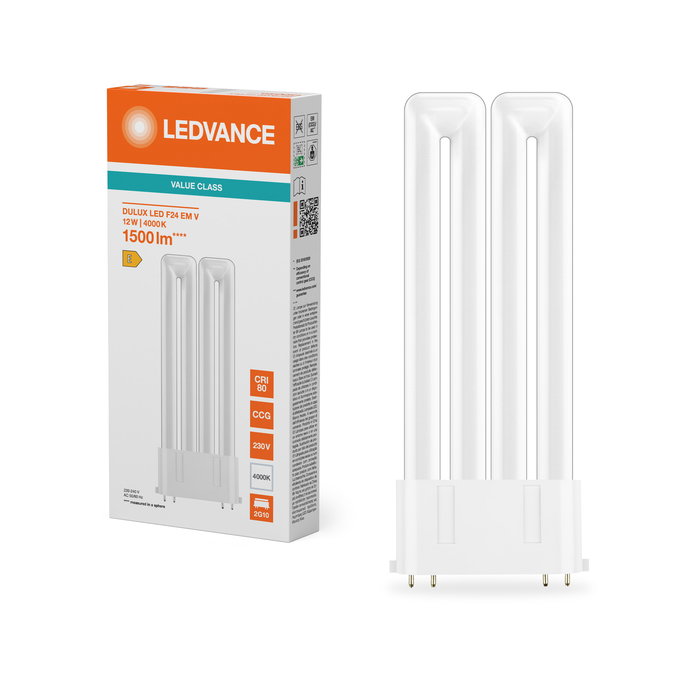

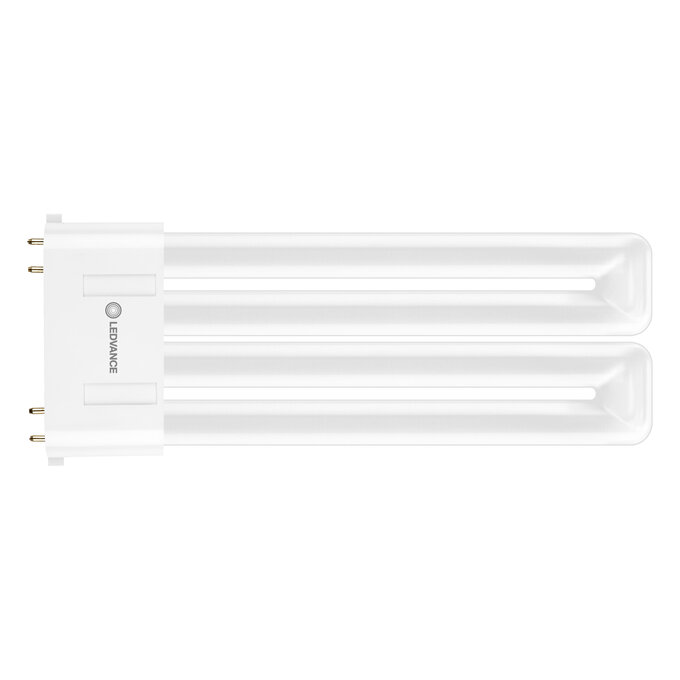

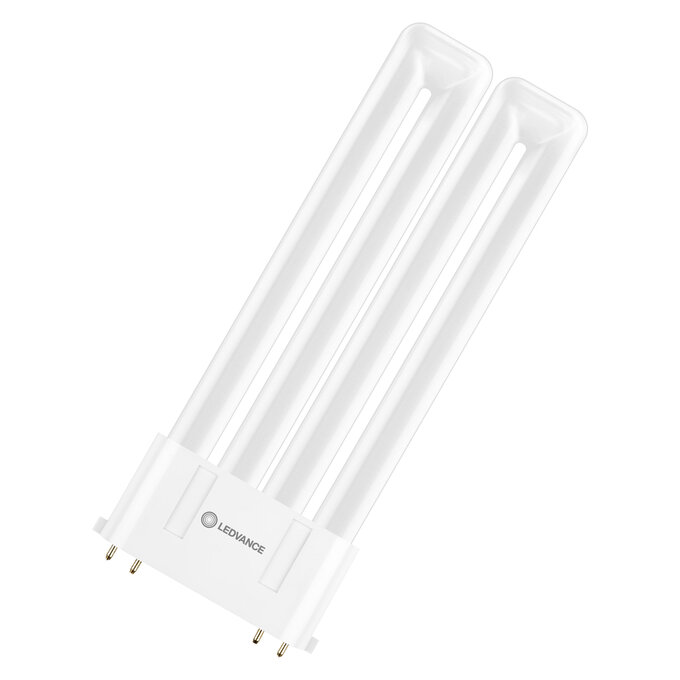

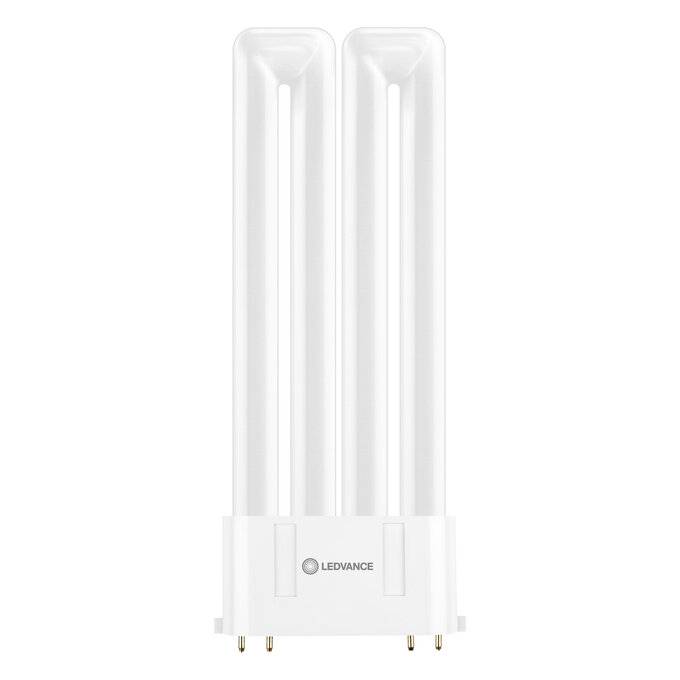

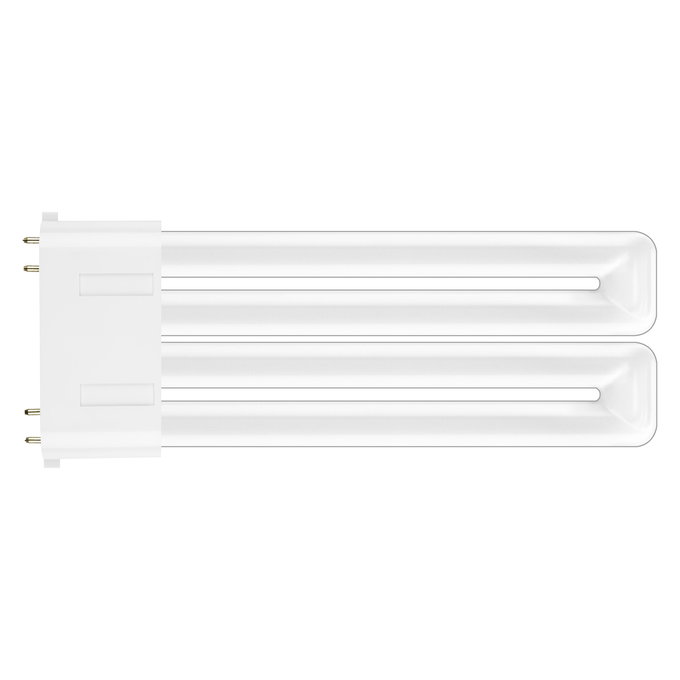

DULUX LED F24 EM & AC MAINS VALUE 12W 840 2G10

1 / 7

DULUX LED F24 EM & AC MAINS VALUE 12W 840 2G10

DULUX LED F24 EM & AC MAINS VALUE 12W 840 2G10 by LEDVANCE is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £16.41 excl. VAT.

Product benefits

Easy installation
Low energy consumption
Not suitable for operation with electronic control gear
Easy relamping thanks to compact design
Operation directly on 230 V AC mains possible

Areas of application

General illumination within ambient temperatures from -20…+45 °C
Offices
Walkways and corridors
Hotels, restaurants

Product features

LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
Lifetime up to 30,000 h
Single-ended four-pin plug-in 2G10 base
Type of protection: IP20
Mercury-free lamps

Safety advice

Not suitable for tandem operation.
The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
All electrical connections must be made by a qualified person.
Lamp not suitable for emergency operation.
Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075822474

EAN: 4058075822474

GTIN: 4058075822474

MPN: 4058075822474

Price: £ 16.41 Excl. VAT

Specifications

Electrical data

Nominal wattage	12 W
Construction wattage	12.00 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Claimed equiv. conventional lamp power	24 W
Nominal current	53 mA
Type of current	AC
Inrush current	6 A
Suitable for DC input	Yes
Input voltage DC	186…260 V 1)
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	75
Max. lamp number on MCB B10 A - CCG without compensation	30
Max. lamp number on MCB B10 A - CCG with compensation	19
Max. lamp number on MCB B16 A	120
Max. lamp number on MCB B16 A - CCG without compensation	48
Max. lamp number on MCB B16 A - CCG with compensation	30
Total harmonic distortion	≤ 30 %
Power factor λ	> 0.90

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

User instruction / safety instructions – DULUX LED F EM V

Open

Extended installation guide – Installation instructions LED TUBE T8, T5 und DULUX LED 2026 10 EN

Open

Extended installation guide – LEDVANCE Luminaire conversion checklist

Open

Legal information – Informationstext 18 Abs 4 ElektroG

Open

Declarations of conformity UKCA – DULUX LED

Open

Declarations of conformity UKCA – LEDTUBE

Open

Certificates – DULUX LED F24 EM V 12W

Open

Certificates – DULUX LED F24 EM V 12W

Open

Certificates – DULUX LED F24 EM V 12W

Open

Product Images And Graphics

Photometric And Lighting Design Files

Luminous flux	1500 lm
Nominal useful luminous flux 90°	1500 lm
Luminous efficacy	125 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.90
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.4

Beam angle	130 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	169.50 mm
Diameter	89.50 mm
Tube diameter	17,0 mm
Maximum diameter	90 mm
Product weight	107.00 g

Ambient temperature range	-20…+45 °C 1)
Maximum temperature at tc test point	65 °C

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

DULUX LED F24 EM & AC MAINS VALUE 12W 840 2G10

Product benefits

Areas of application

Product features

Safety advice

Categories

ETIM group

Specifications

Documents

Base (standard designation)	2G10
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted

Energy efficiency class	E 1)
Energy consumption	12.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC; UKCA
Photobiological safety group acc. to EN62778	RG0

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	2G10
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Claim of equivalent power	No
Length	169.50 mm
Height	89.50 mm
Width	89.50 mm
Chromaticity coordinate x	0.381
Chromaticity coordinate y	0.379
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0.90
Displacement factor	0.90
LED light source replaces a fluorescent light source	No
EPREL ID	1404773,2206825
Model number	AC46459,AC71218

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
