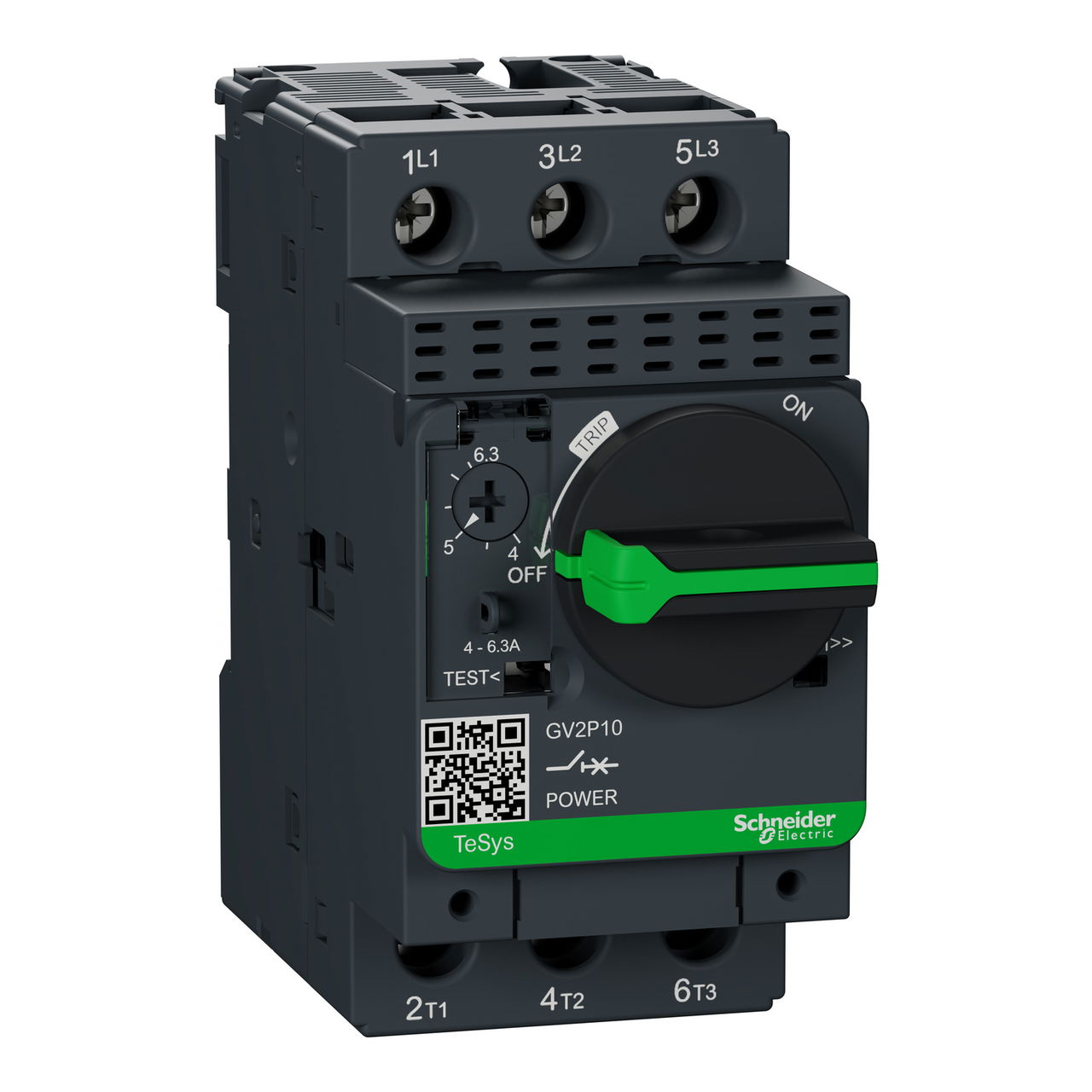

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Image 2 of 6

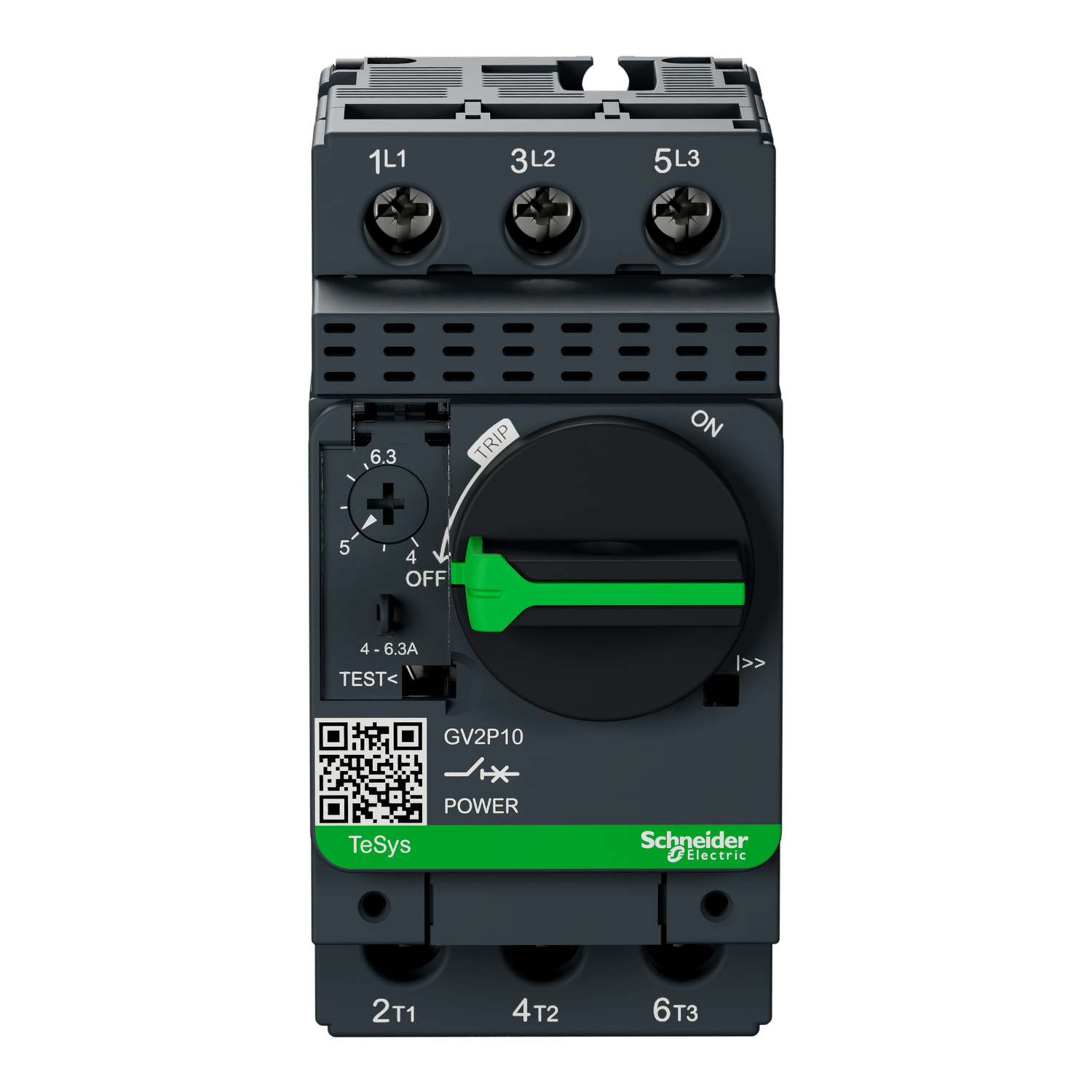

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Image 3 of 6

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Image 4 of 6

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Image 5 of 6

1 / 6

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals

Name: Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals
Brand: Schneider Electric
SKU: GV2P10
Availability: InStock

Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £74.67 to £121.62 excl. VAT. Voltimum+ members earn 15 points per unit.

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),

Product identifiers

SKU: GV2P10

EAN: 3389110213485

GTIN: 3389110213485

MPN: GV2P10

Loyalty points: 15

Price range: £ 74.67 - £ 121.62 Excl. VAT

Specifications

Depth	97 mm
Width	44.5 mm
Height	89 mm
Power loss	2.5 W
Number of poles	3
Device construction	Complete device in housing
Switch off technique	Thermomagnetic
Phase failure sensitive	yes
Rated operating voltage
Type of control element	Turn button
Degree of protection (IP)	IP20
Rated permanent current Iu	6.3 A
Overload release current setting
With integrated auxiliary switch	no
With thermal overload protection	yes
Rated operation power at AC-3, 230 V	1.5 kW
Rated operation power at AC-3, 400 V	2.2 kW
With integrated under voltage release	no
Type of electrical connection of main circuit	Screw connection
Adjustment range undelayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, AC	100 kA
