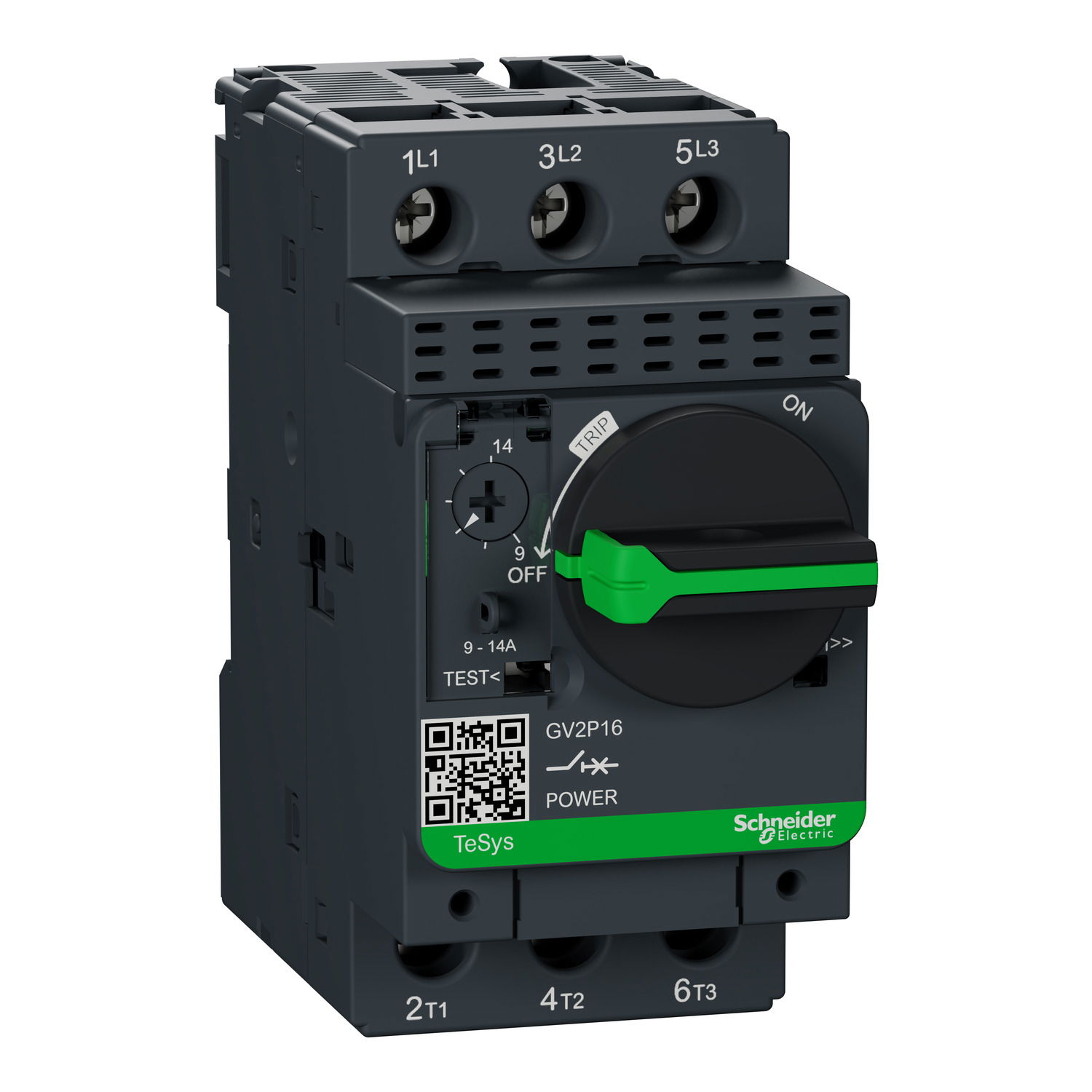

Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals
1 / 5
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals
Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 3 more. It is currently in stock at 5 of them. Trade prices range from £88.67 to £144.40 excl. VAT. Voltimum+ members earn 18 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for 3-phase motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-14A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2P16
EAN: 3389110213508
GTIN: 3389110213508
MPN: GV2P16
Loyalty points:
18
Price range: £ 88.67 - £ 144.40 Excl. VAT
ETIM group
Specifications
| Depth | 97 mm |
| Width | 44.5 mm |
| Height | 89 mm |
| Power loss | 2.5 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | yes |
