Philips

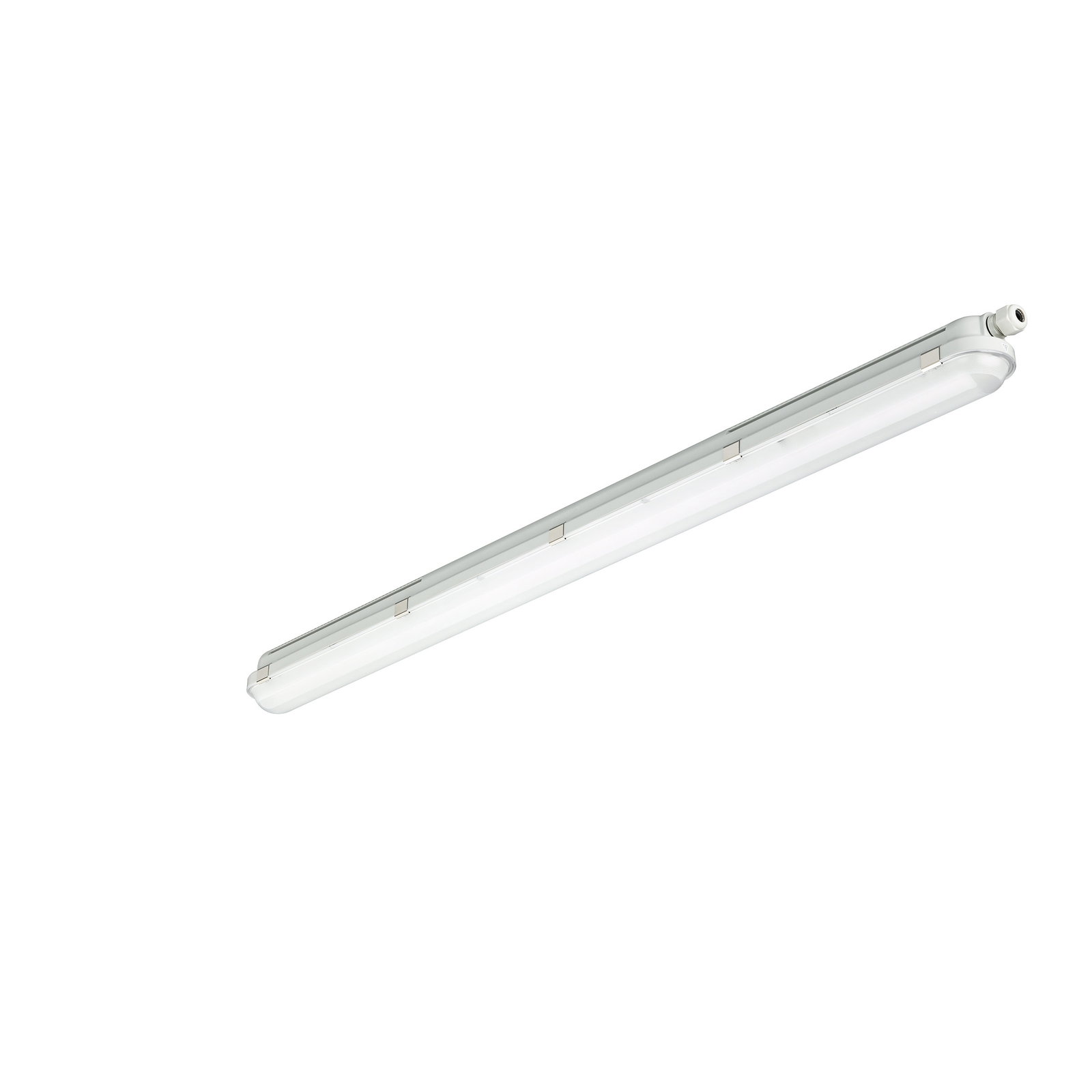

CoreLine Waterproof, 30.5 W, L1200 mm, 4000 lm, 4000 K, DALI, Wide beam, Frosted, IP65, IK08, TW1-ready

CoreLine Waterproof, 30.5 W, L1200 mm, 4000 lm, 4000 K, DALI, Wide beam, Frosted, IP65, IK08, TW1-ready by Philips is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £152.62 excl. VAT.

L1200 mm, Polycarbonate, Grey, Power supply unit with DALI interface, 4000 lm, 30.5 W, 131 lm/W, 4000 K, (0.38,0.38)SDCM=3, Wide beam, Frosted, Polycarbonate, IP65 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, Push-in connector 5-pole, Simple connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)

Product identifiers

SKU: 910505100053

Price: £ 152.62 Excl. VAT

Categories

LED Outdoor Lighting LED Lighting & Luminaires LED Lighting

Specifications

Cable -
CE mark Yes
Dimmable Yes
ENEC mark ENEC mark
Connection Push-in connector 5-pole
Optic type Wide beam
Inrush time 0.2 ms
Input Voltage 220 to 240 V
Overall width 80 mm
Housing Colour Grey
Line Frequency 50 or 60 Hz
Overall height 76 mm
Driver included Yes
Housing material Polycarbonate
Control interface DALI
Fixation material Stainless steel
Maximum dim level 1%
Reflector material Steel
Initial chromaticity (0.38,0.38)SDCM<lt/>=3
Constant light output No
Luminous flux tolerance +/-10%
Light source replaceable No
Optical cover/lens finish Frosted
Luminaire light beam spread 105°
Power consumption tolerance +/-10%
Mech. impact protection code IK08 | 5 J vandal-protected
Suitable for random switching Not applicable
Correlated Colour Temperature (Nom) 4000 K
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h L70
