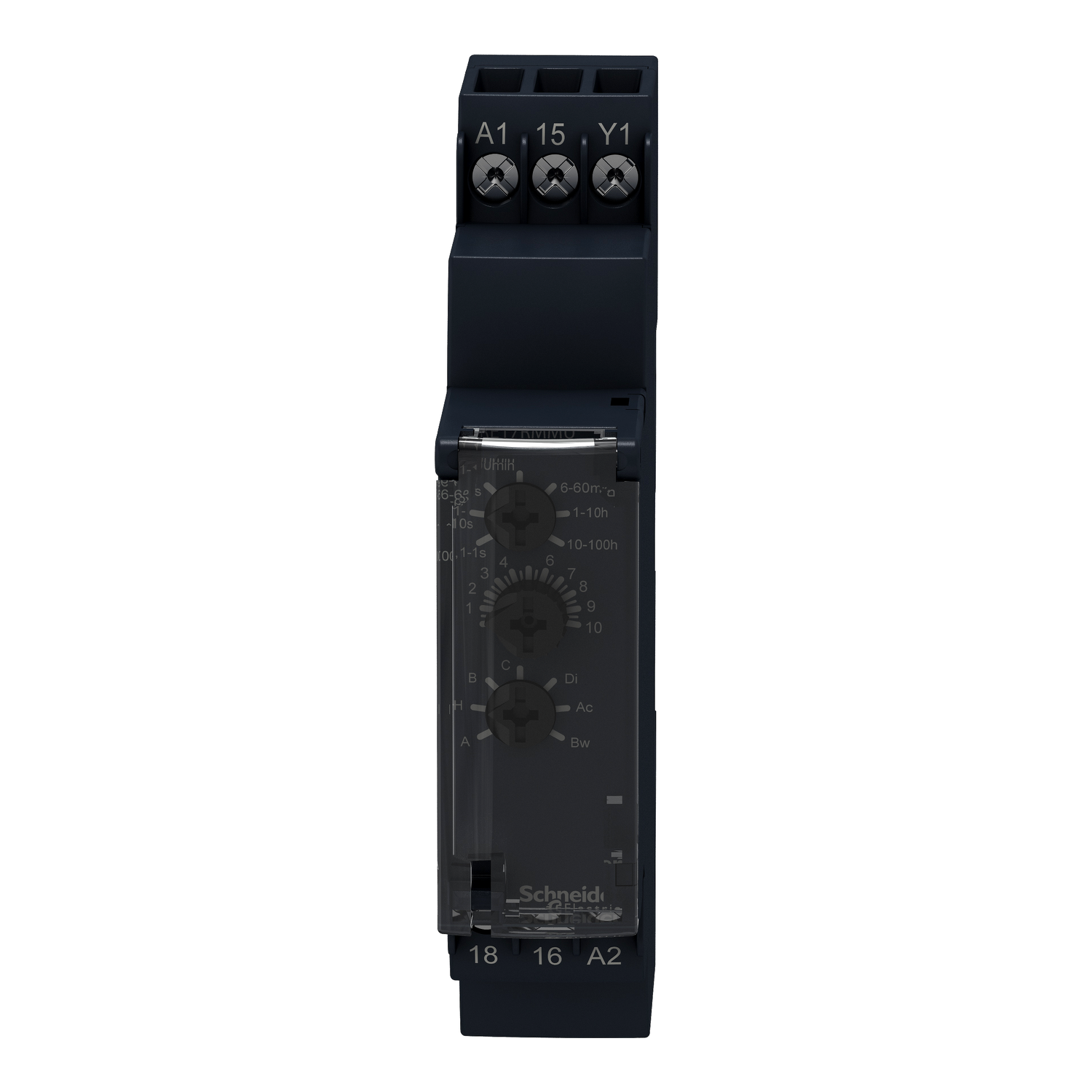

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC – Image 4 of 9

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC – Image 5 of 9

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC – Image 6 of 9

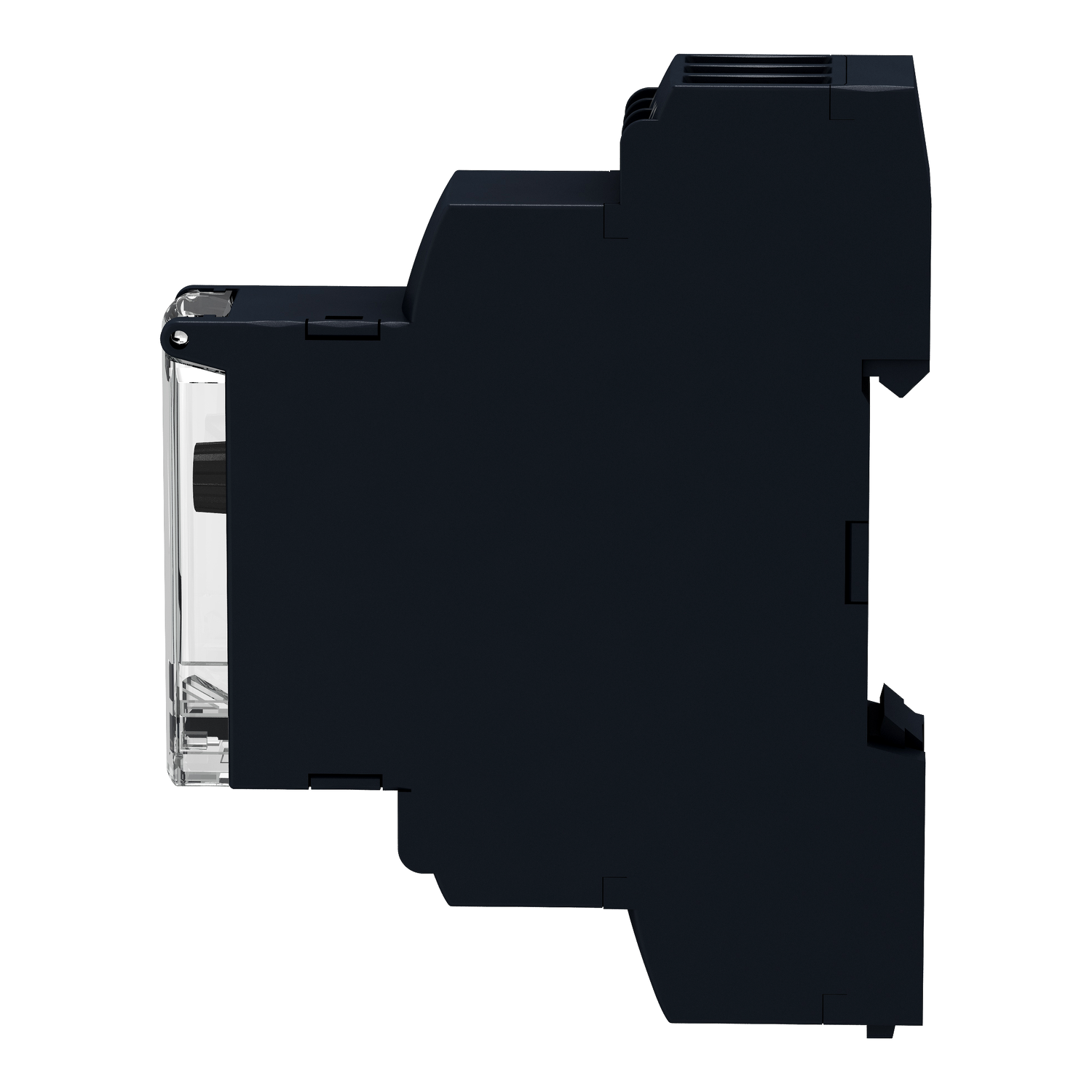

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC – Image 7 of 9

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC – Image 8 of 9

1 / 9

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC

Name: Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC
Brand: Schneider Electric
SKU: RE17RMMU
Availability: InStock

Time delay relay 10 functions - 1 s..100 h - 24..240 V AC - 1 OC by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £39.25 to £63.00 excl. VAT. Voltimum+ members earn 9 points per unit.

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RE17RMMU

EAN: 3606480552755

GTIN: 3606480552755

MPN: RE17RMMU

Loyalty points: 9

Price range: £ 39.25 - £ 63.00 Excl. VAT

Specifications

Depth	72 mm
Width	17.5 mm
Height	90 mm
Time range
Nominal current	8 A
Material contact	-
Function star-delta	no
Complete with socket	-
Operating voltage DC
Max. starting current	-
Function pulse shaping	yes
Degree of protection (IP)	-
Remote operation possible	no
With semiconductor output	no
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Suitable as remote control	no
Voltage type for actuating	AC/DC
Material of contact surface	-
Suitable for front mounting	-
Type of electric connection	Screw connection
Function delay-on energization	yes
Rated control supply voltage DC
Voltage type (operating voltage)	-
Function delay on de-energization	yes
Pluggable on auxiliary contact block	no
Outputs, reversible delayed/undelayed	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Function floating contact on energization	yes
Function floating contact on de-energization	yes
Clock function, starting with pause, variable	yes
Clock function, starting with pulse, variable	yes
Suitable for DIN rail (top hat rail) mounting	yes
Number of outputs, delayed, change-over contact	1
Number of outputs, delayed, normally open contact	0
Number of outputs, undelayed, change-over contact	1
Function flashing, starting with pause, fixed time	yes
Function flashing, starting with pulse, fixed time	yes
Relay technology category according to IEC 61810-7	-
Number of outputs, delayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, normally closed contact	0
