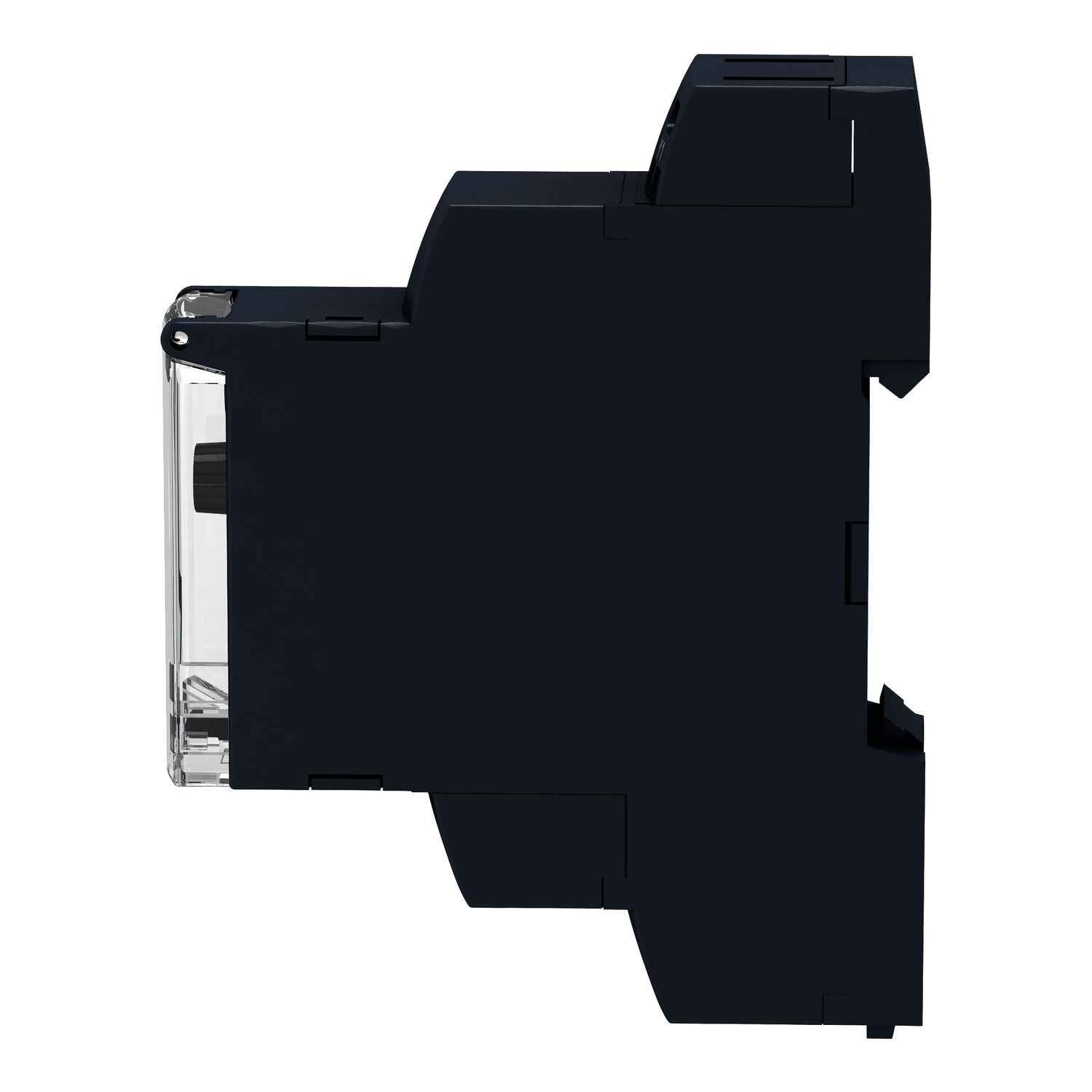

Modular timing relay, 8 A, 1 CO, 1 s..100 h, time delay, 12...240 V AC/DC
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V to 240V AC/DC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Product identifiers
SKU: RE17RMMW
EAN: 3606480552762
GTIN: 3606480552762
MPN: RE17RMMW
Loyalty points:
26
Price range: £ 60.06 - £ 64.09 Excl. VAT
Categories
Features
|
Depth
|
72 mm
|
|
Width
|
17.5 mm
|
|
Height
|
90 mm
|
|
Time range
|
|
|
Nominal current
|
8 A
|
|
Material contact
|
-
|
|
Function star-delta
|
yes
|
|
Complete with socket
|
-
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Function pulse shaping
|
yes
|
|
Degree of protection (IP)
|
-
|
|
Remote operation possible
|
no
|
|
With semiconductor output
|
no
|
|
Material of contact insert
|
-
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Suitable as remote control
|
no
|
|
Voltage type for actuating
|
AC/DC
|
|
Material of contact surface
|
-
|
|
Suitable for front mounting
|
-
|
|
Type of electric connection
|
Screw connection
|
|
Function delay-on energization
|
yes
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
-
|
|
Function delay on de-energization
|
yes
|
|
Pluggable on auxiliary contact block
|
no
|
|
Outputs, reversible delayed/undelayed
|
no
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Function floating contact on energization
|
yes
|
|
Function floating contact on de-energization
|
yes
|
|
Clock function, starting with pause, variable
|
yes
|
|
Clock function, starting with pulse, variable
|
yes
|
|
Suitable for DIN rail (top hat rail) mounting
|
yes
|
|
Number of outputs, delayed, change-over contact
|
1
|
|
Number of outputs, delayed, normally open contact
|
0
|
|
Number of outputs, undelayed, change-over contact
|
1
|
|
Function flashing, starting with pause, fixed time
|
yes
|
|
Function flashing, starting with pulse, fixed time
|
yes
|
|
Relay technology category according to IEC 61810-7
|
-
|
|
Number of outputs, delayed, normally closed contact
|
0
|
|
Number of outputs, undelayed, normally open contact
|
0
|
|
Number of outputs, undelayed, normally closed contact
|
0
|
