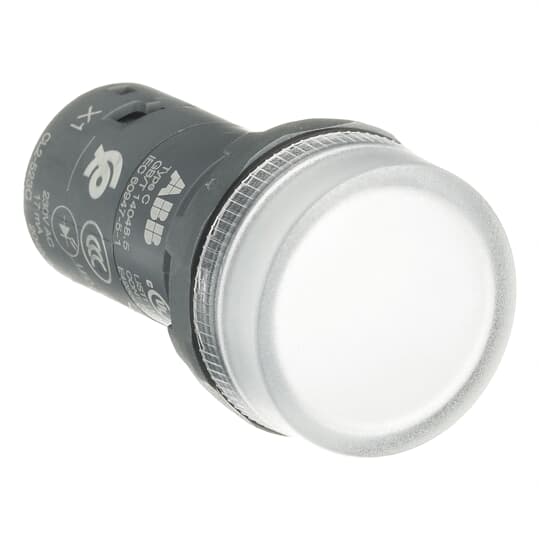

CL2-523C Pilot Light

Link copied

SKU
EAN
GTIN
MPN

CL2-523C Pilot Light by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £13.00 to £14.47 excl. VAT. Voltimum+ members earn 7 points per unit.

The CL2-523C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 230V AC This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.

Loyalty points: 7

Price range: £ 13.00 - £ 14.47 Excl. VAT

Specifications

Colour lens	Colourless
Type of lens	High
Voltage type	AC
Hole diameter	22
Width opening	0
Height opening	0
With front ring	no
Colour front ring	-
With light source	yes
Material front ring	-
Type of lamp socket	LED
Construction type lens	Round
Degree of protection (IP)	IP67/IP69K
Number of indicator lights	1
Rated operating voltage Ue
Degree of protection (NEMA)	Other
Type of electric connection	Screw connection
