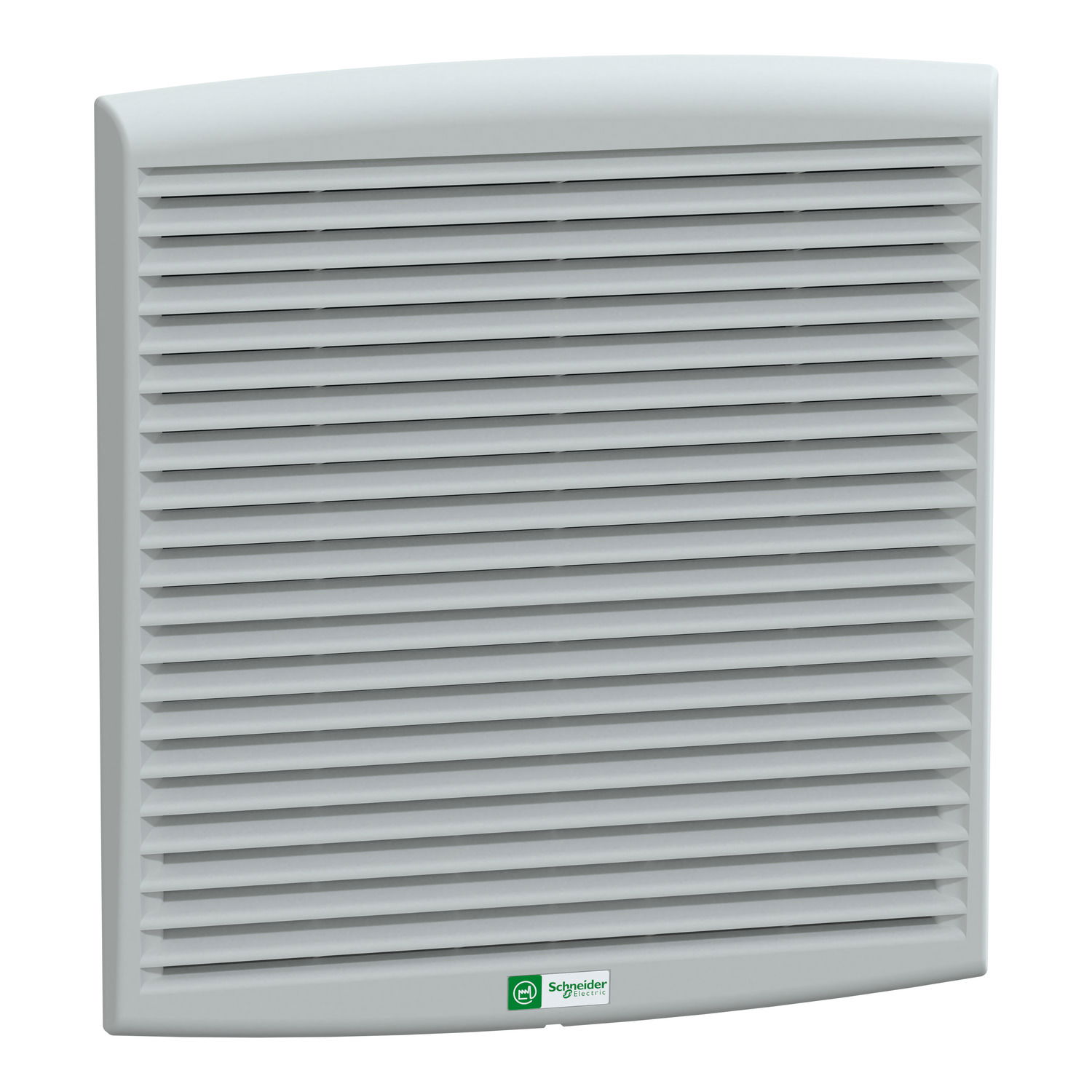

ClimaSys forced vent. IP54, 560m3/h, 230V, with outlet grille and filter G2
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 68 W 50 Hz, 85 W 60 Hz. Free flow rate of 550 m3/h at 50 Hz and 60 Hz. 336 x 316 x 161 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Product identifiers
SKU: NSYCVF560M230PF
EAN: 3606480151323
GTIN: 3606480151323
MPN: NSYCVF560M230PF
Loyalty points:
67
Price range: £ 167.79 - £ 172.11 Excl. VAT
Categories
ETIM Group
Specifications
| Depth | 161 mm |
| Width | 316 mm |
| Colour | Grey |
| Height | 336 mm |
| RAL-number | 7035 |
| EMC-version | no |
| Rated power | 68 W |
| With filter | yes |
