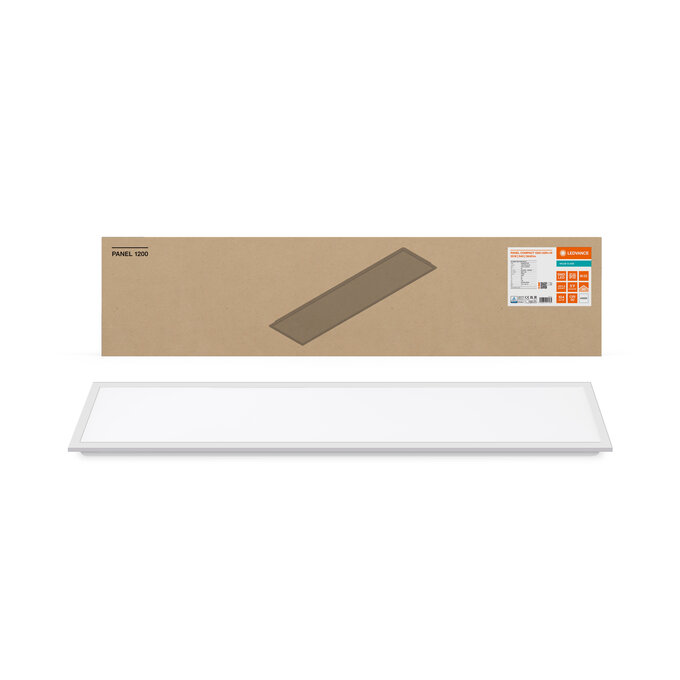

PL COMP 1200 V 35W 940 U19
PL COMP 1200 V 35W 940 U19
PL COMP 1200 V 35W 940 U19 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £66.55 excl. VAT.
Product benefits
- High color rendering index (Ra>90) with up to 104 lm/W
- Good glare reduction (UGR < 19)
- Low flicker light thanks to special electronic control gear
- External driver with an optional 3-pole through-wiring feature
- Versions with DALI ECG available
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
Product features
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with separate Emergency Conversion Box
- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
References / Links
- For Guarantee see www.ledvance.com/guarantee
Product identifiers
Price: £ 66.55 Excl. VAT
ETIM group
Specifications
Electrical data
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Inrush current | 11.2 A |
| Inrush current time T h50 | 50 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 67 |
| Max. number of luminaires per miniature circuit breaker C10 | 53 |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – UI PL COMP 1200 V
Legal information – LISO Insert PL COMP 1200 V
Legal information – EM Insert PL COMP
Legal information – Informationstext 18 Abs 4 ElektroG
Declarations of conformity UKCA – UKCA Declaration of Conformity PL COMP V
Certificates – PL COMP
EPD – EPD EN PANEL COMPACT DALI
