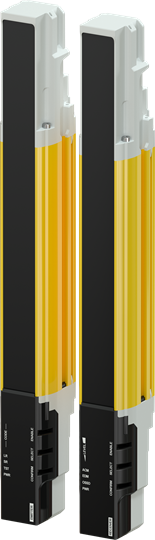

Orion1-4-30-030-E Safety light curtain
Orion1 Extended Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=300mm, Range=0.2-20m, Type 4. Orion1 Extended is an easy to use light curtain with compact dimensions. It has two resolutions for detection of fingers and hands, and comes with advanced features like cascading, muting and blanking. Light curtains are usually placed closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines.
Product identifiers
SKU: 2TLA022303R0100
EAN: 7350024481624
GTIN: 7350024481624
MPN: Orion1-4-30-030-E
Loyalty points:
507
Price range: £ 921.86 - £ 1,205.00 Excl. VAT
Categories
Features
|
EFI02386
|
-|-
|
|
EFI03991
|
30
|
|
EFI04098
|
-
|
|
EFI04103
|
-
|
|
EFI06784
|
-
|
|
EFI07094
|
-
|
|
EFI07283
|
-
|
|
EFI07334
|
-
|
|
Cascadable
|
yes
|
|
Voltage type
|
DC
|
|
Width sensor
|
35 mm
|
|
Response time
|
13 ms
|
|
Height of sensor
|
6.4 mm
|
|
Length of sensor
|
40.8 mm
|
|
With beam coding
|
yes
|
|
Fade-out possible
|
yes
|
|
Override possible
|
yes
|
|
Reduced resolution
|
yes
|
|
Ambient temperature
|
|
|
Safety field height
|
300 mm
|
|
With muting function
|
yes
|
|
With restart blockage
|
yes
|
|
Clock control possible
|
no
|
|
Wavelength of the sensor
|
950 nm
|
|
Degree of protection (IP)
|
IP65
|
|
Degree of protection (NEMA)
|
-
|
|
Type of electric connection
|
Connector M12
|
|
Operation agent-safety class
|
Safety class 3
|
|
Suitable for safety functions
|
yes
|
|
Rated control supply voltage DC
|
|
|
Resolution of the light curtain
|
30 mm
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Detection capability for test bodies
|
30 mm
|
|
Type of switching output of the OSSD
|
PNP
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Transmission range of the safety field
|
20 m
|
|
Max. output current at protected output
|
500 mA
|
|
Scope of delivery of the one-way system
|
Transmitter and receiver
|
|
Type of safety according to IEC 61496-1
|
4
|
|
Number of protected semiconductor outputs
|
2
|
|
Switching voltage of OSSD at state "high"
|
24 V
|
|
Type of interface for safety communication
|
Other
|
|
Number of protected contact energized outputs
|
|
|
With monitoring function downstream switching devices
|
yes
|
|
Number of semiconductor outputs with signalling function
|
|
|
Number of contact energized outputs with signalling function
|
|
