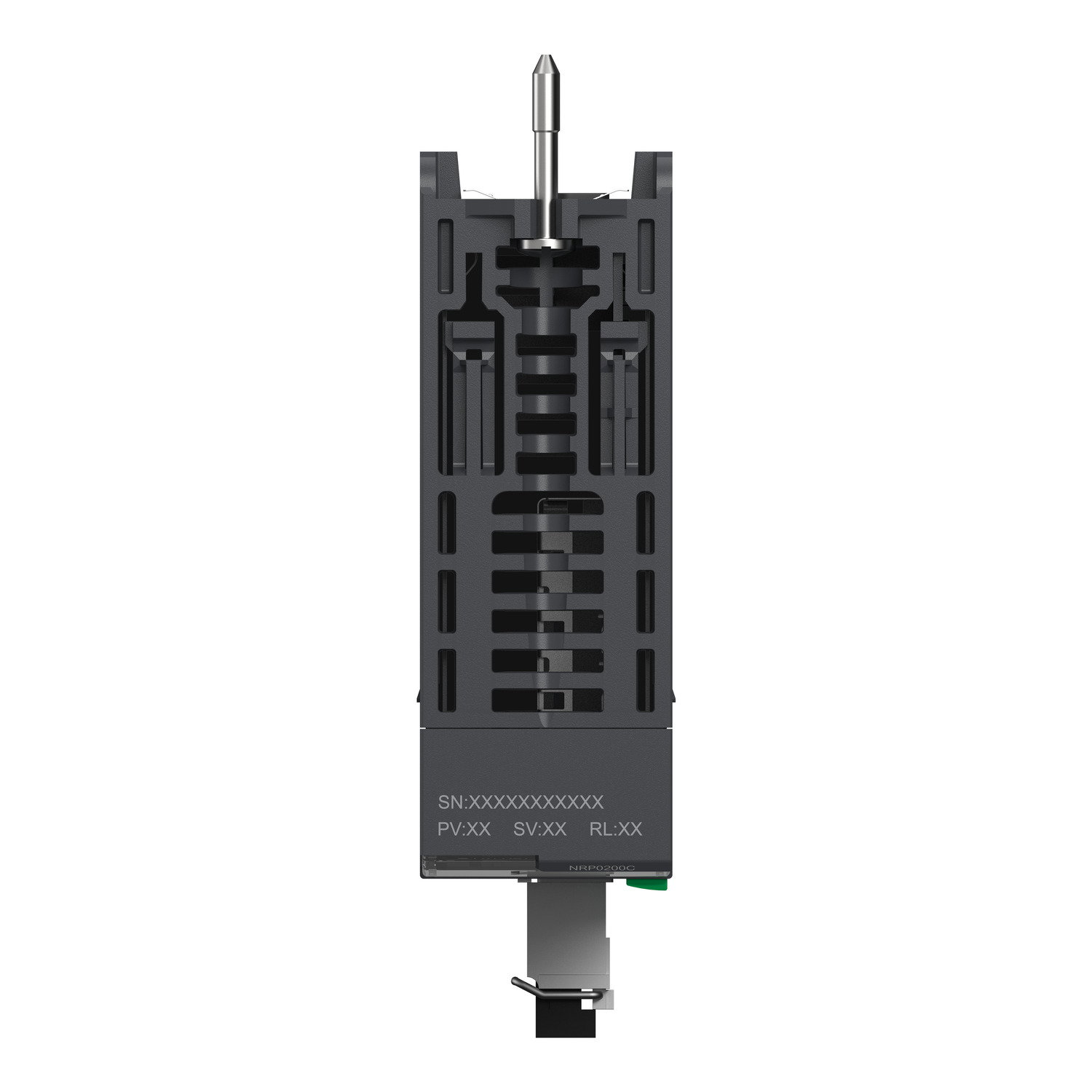

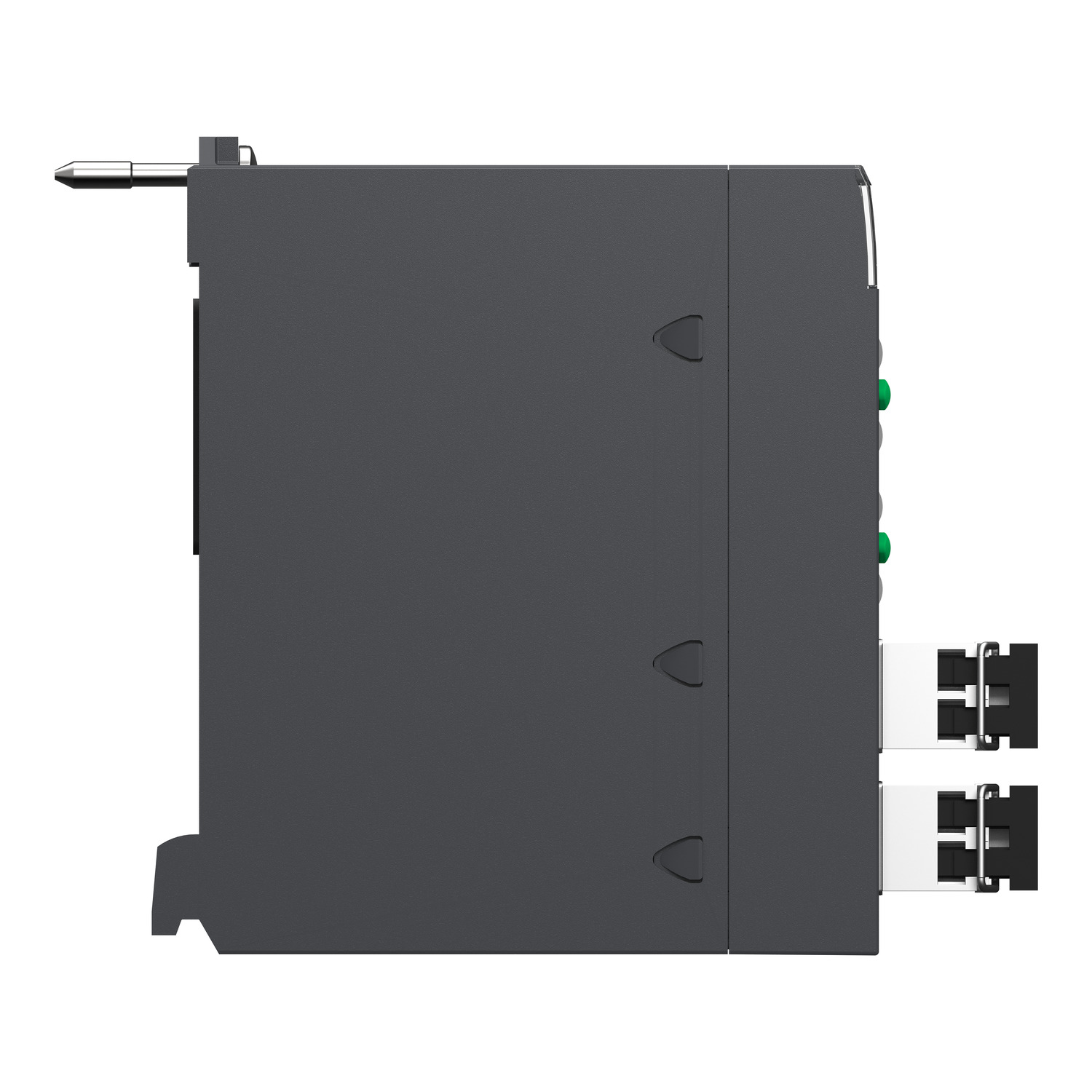

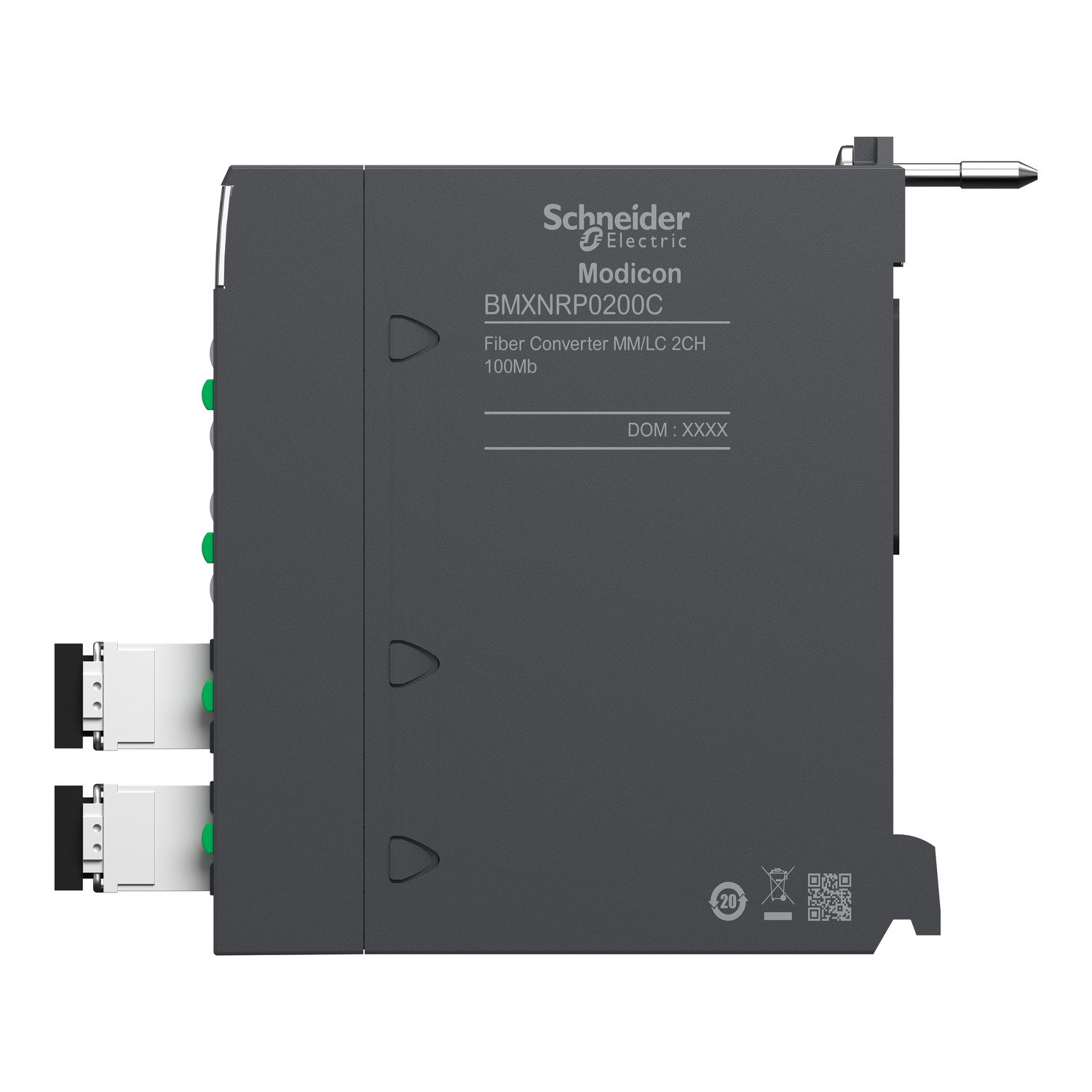

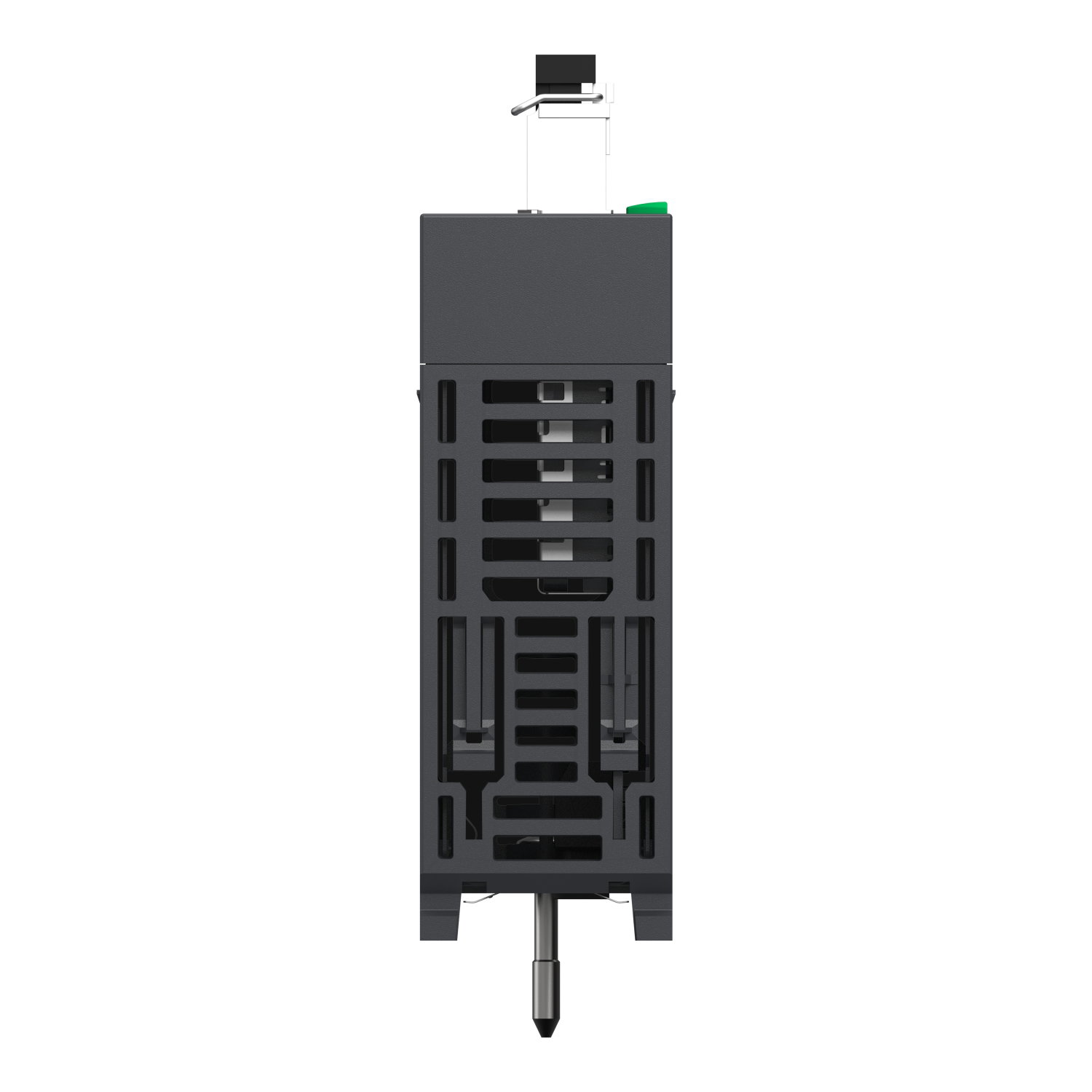

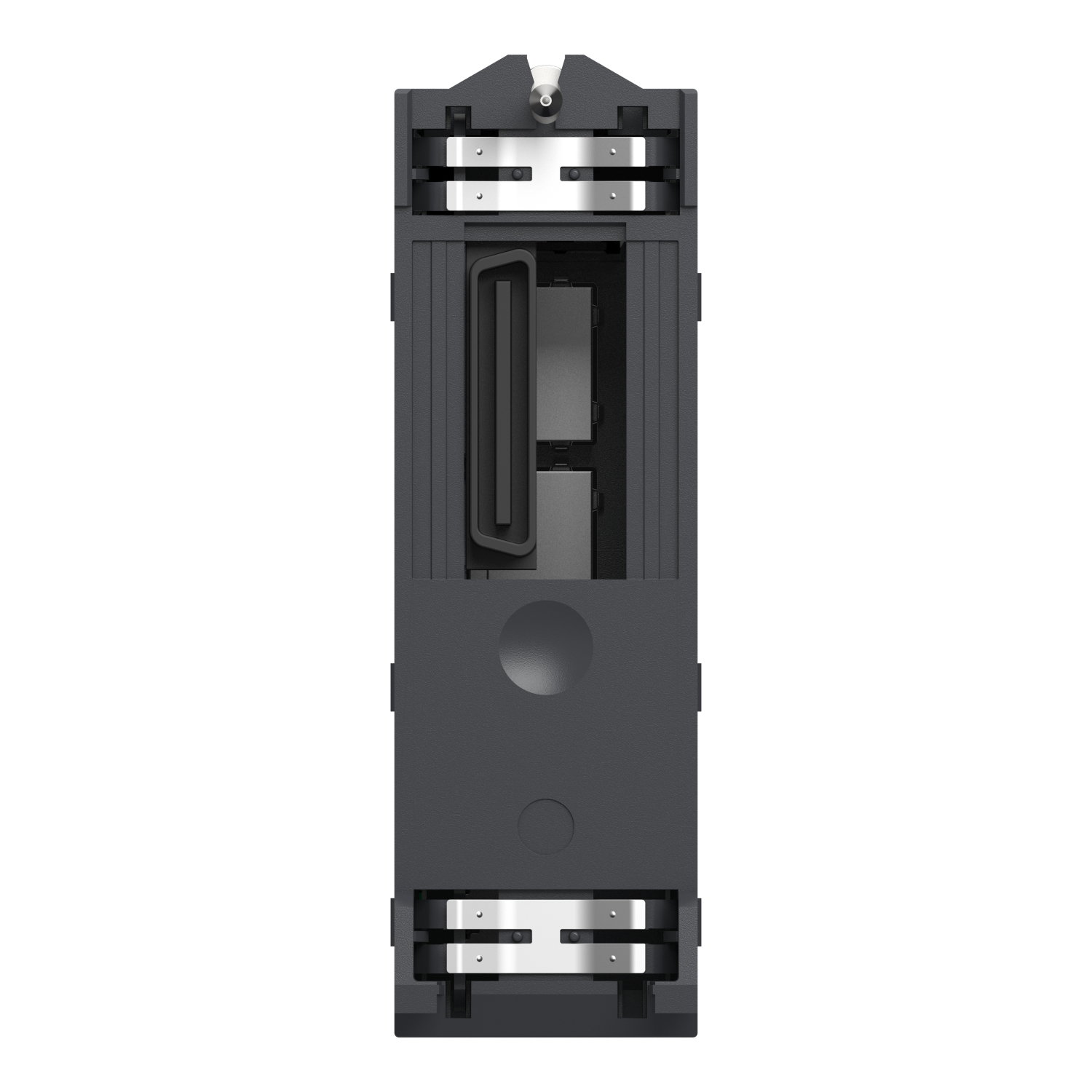

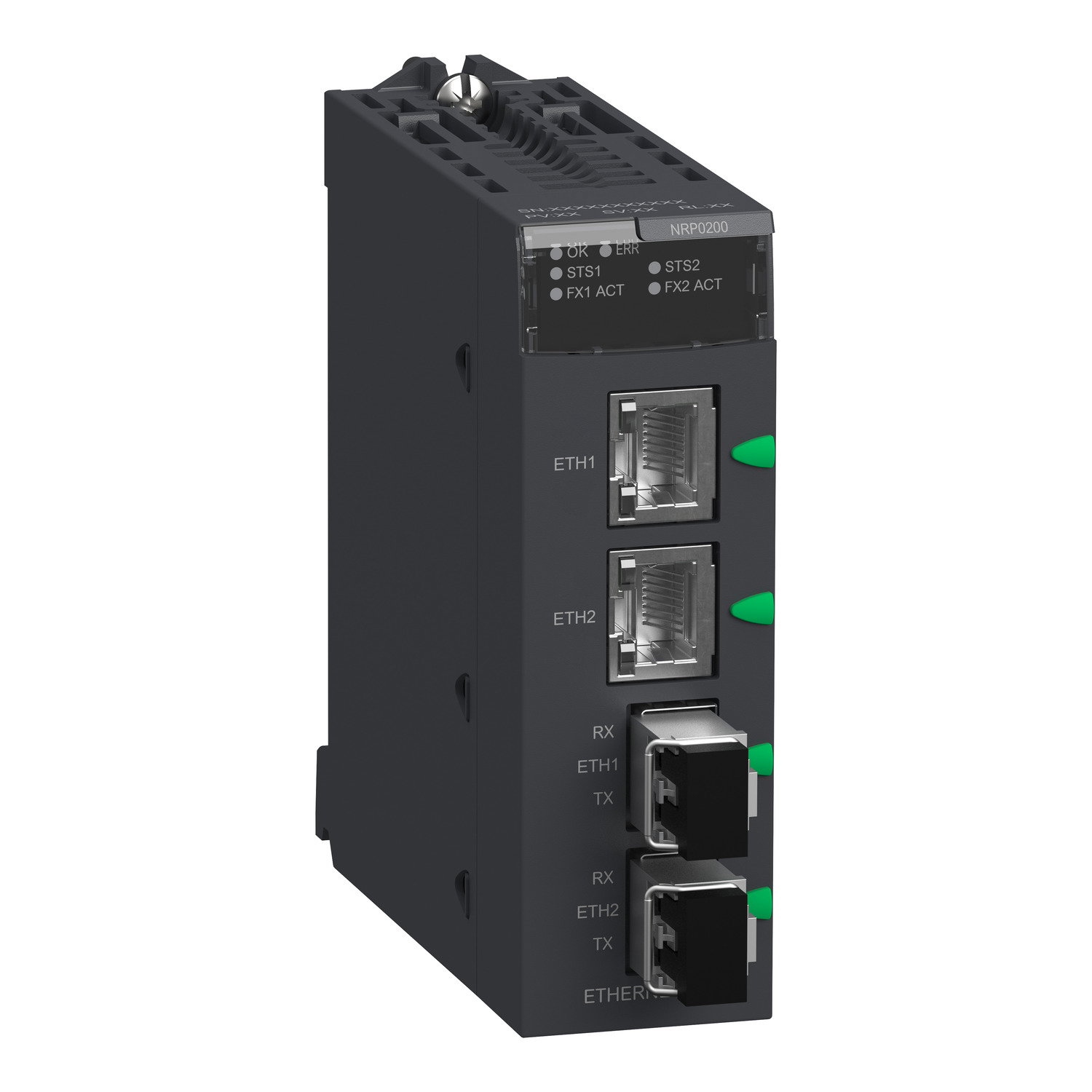

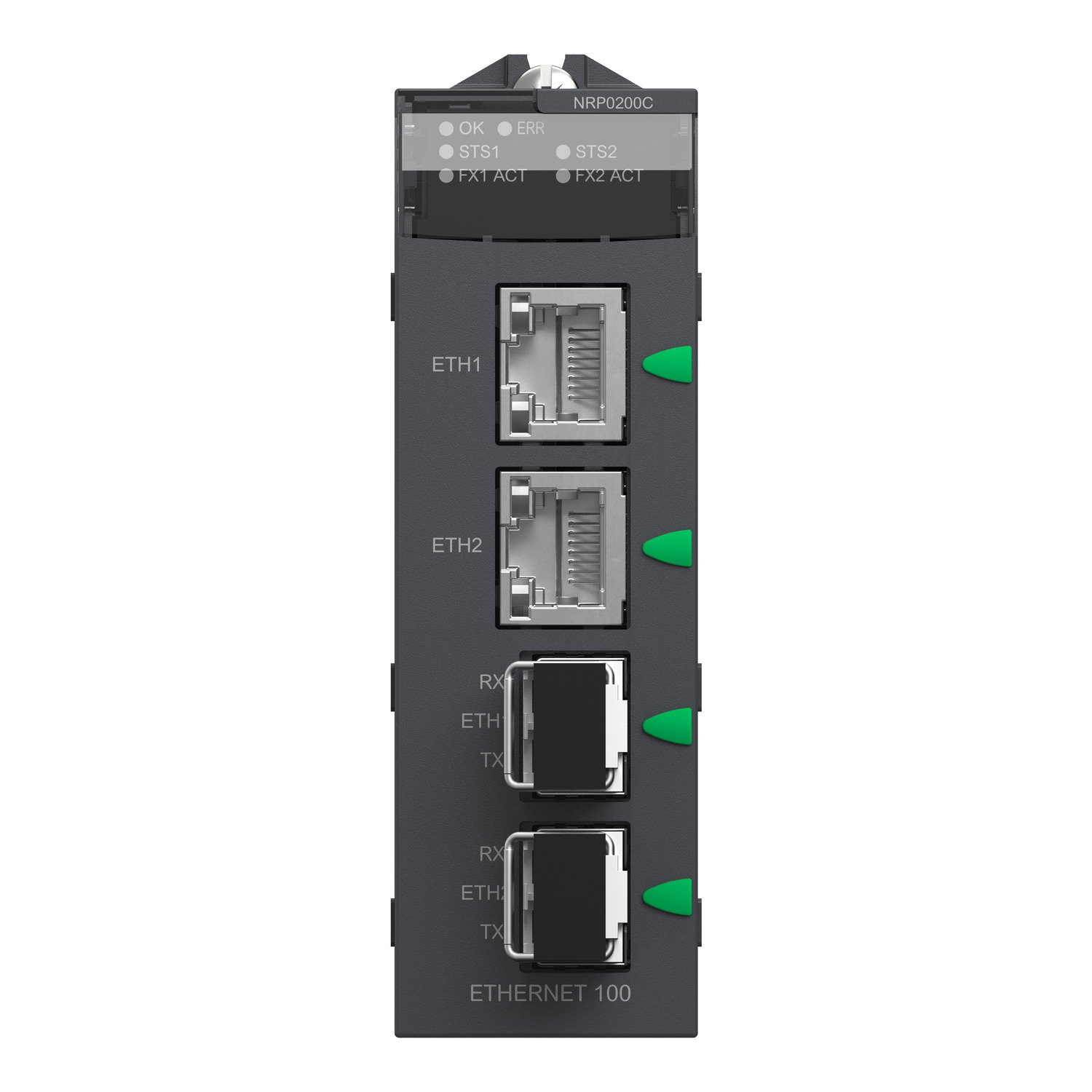

Fiber converter MM/LC 2CH 100Mb - for severe environment

Fiber converter MM/LC 2CH 100Mb - for severe environment

"This fiber converter module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580." "This fiber optic repeater is equipped with 2 RJ45 EtherNet ports and 2 fiber optic Ethernet ports." "Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "Its casing provides IP20 protection of the electronics." "This module has a grey color, a weight of 0.203kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "The product must be installed on the rack and fixed with 2 screws." "Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs."

Product identifiers

SKU: BMXNRP0200C
EAN: 3606480927843
GTIN: 3606480927843
MPN: BMXNRP0200C

Voltimum+ Loyalty Programme Loyalty points: 84

Price: £ 506.00 Excl. VAT

Specifications

Depth 120 mm
Width 110 mm
Height 55 mm
Redundancy no
IO link master no
Transmission rate -
Radio standard GSM no
Radio standard GPRS no
With optical interface no
Type of data transmission Other
Radio standard WLAN 802.11 no
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of interfaces PROFINET 0
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for PROFIBUS no
Appendant operation agent (Ex ib) no
Supporting protocol for DeviceNet no
Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for PROFINET CBA no
Supporting protocol for DeviceNet Safety no
Number of HW-interfaces industrial Ethernet 4
Performance level according to EN ISO 13849-1 None
