Schneider Electric

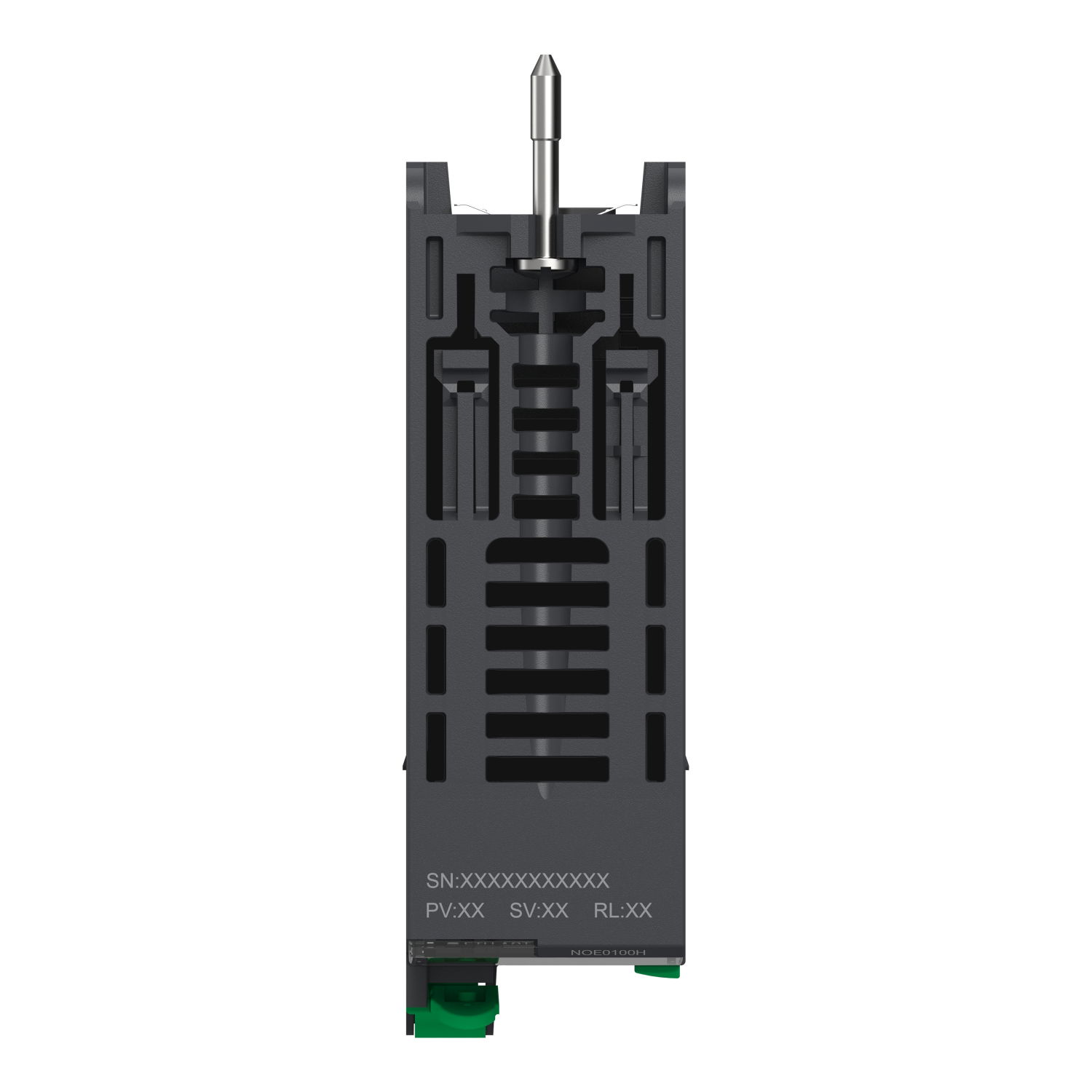

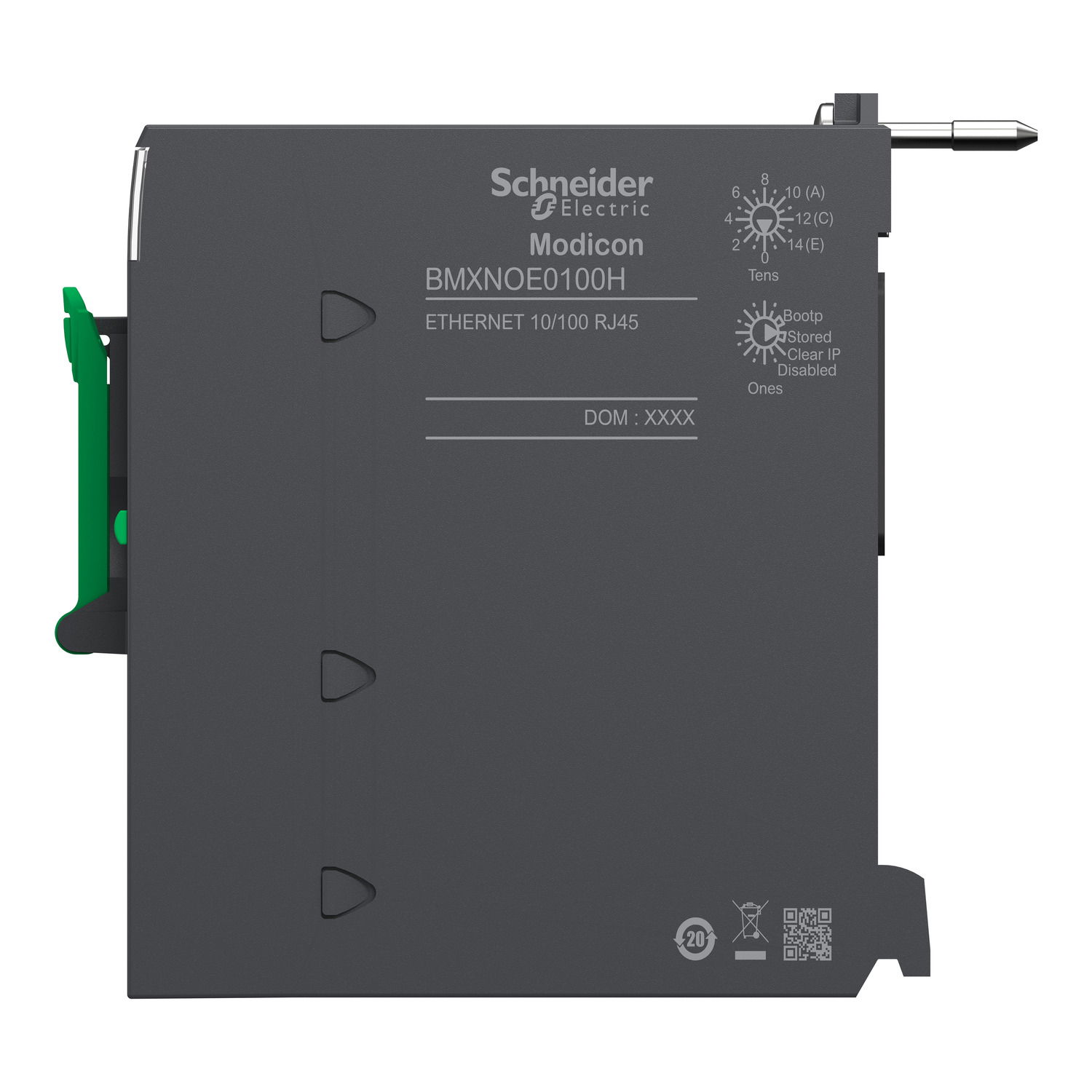

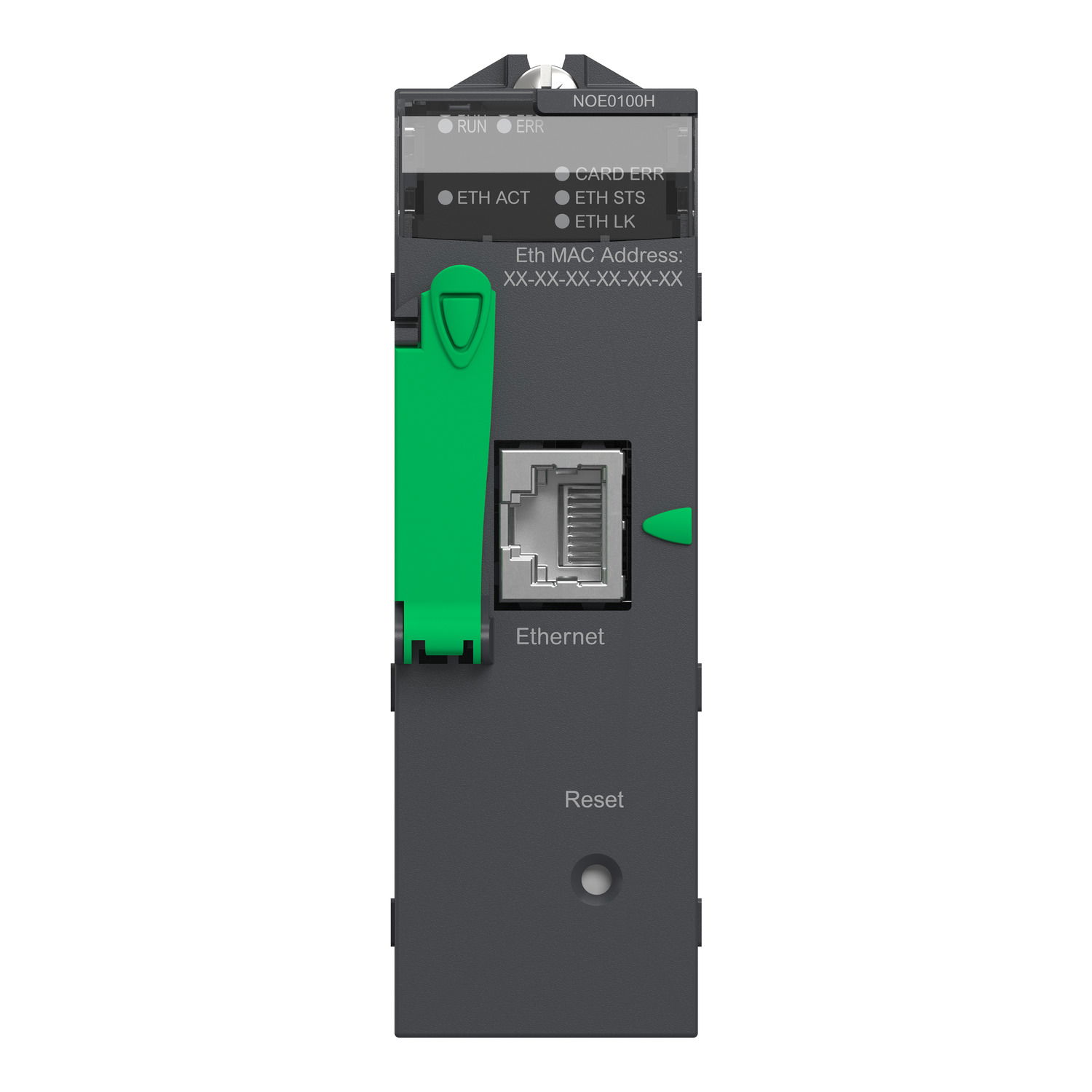

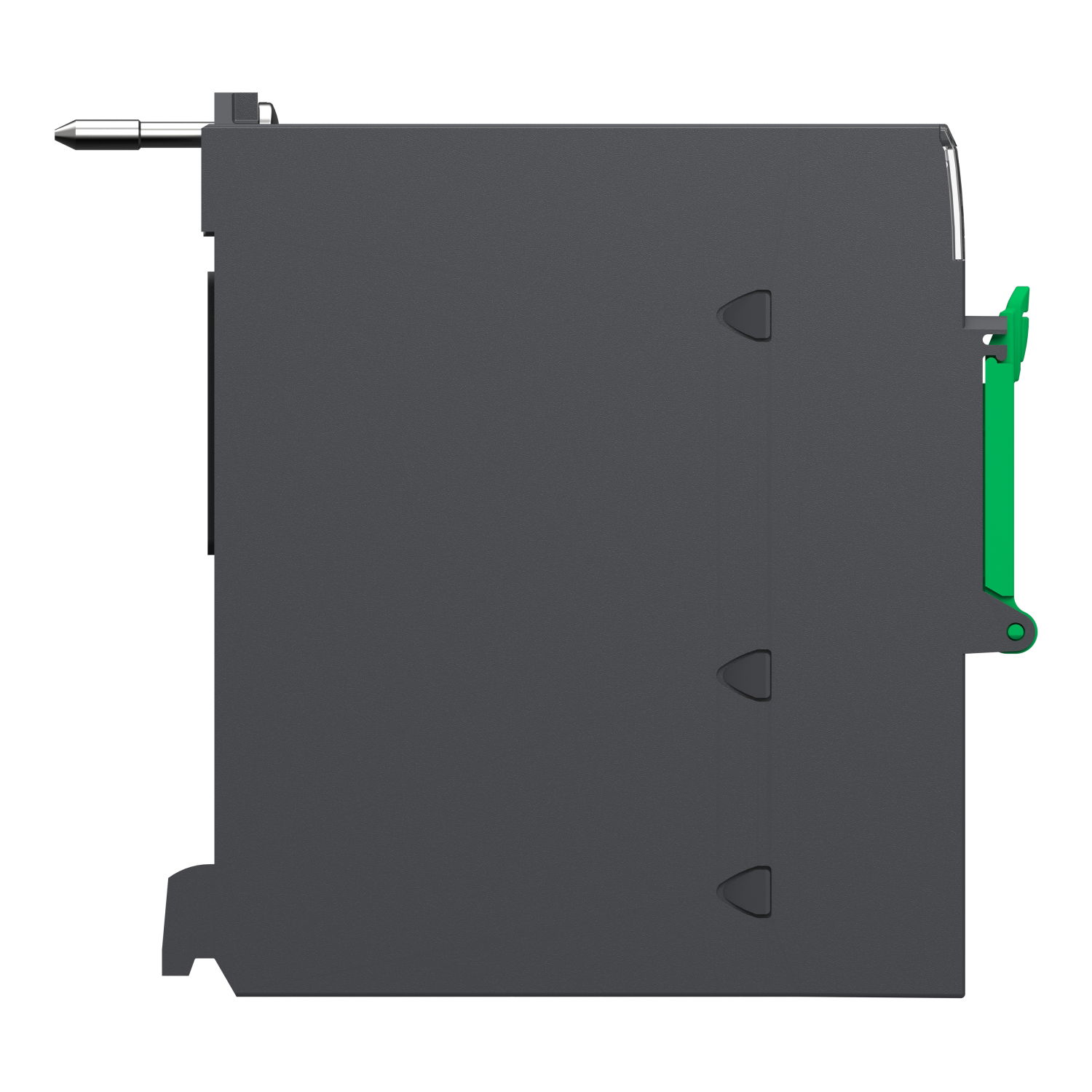

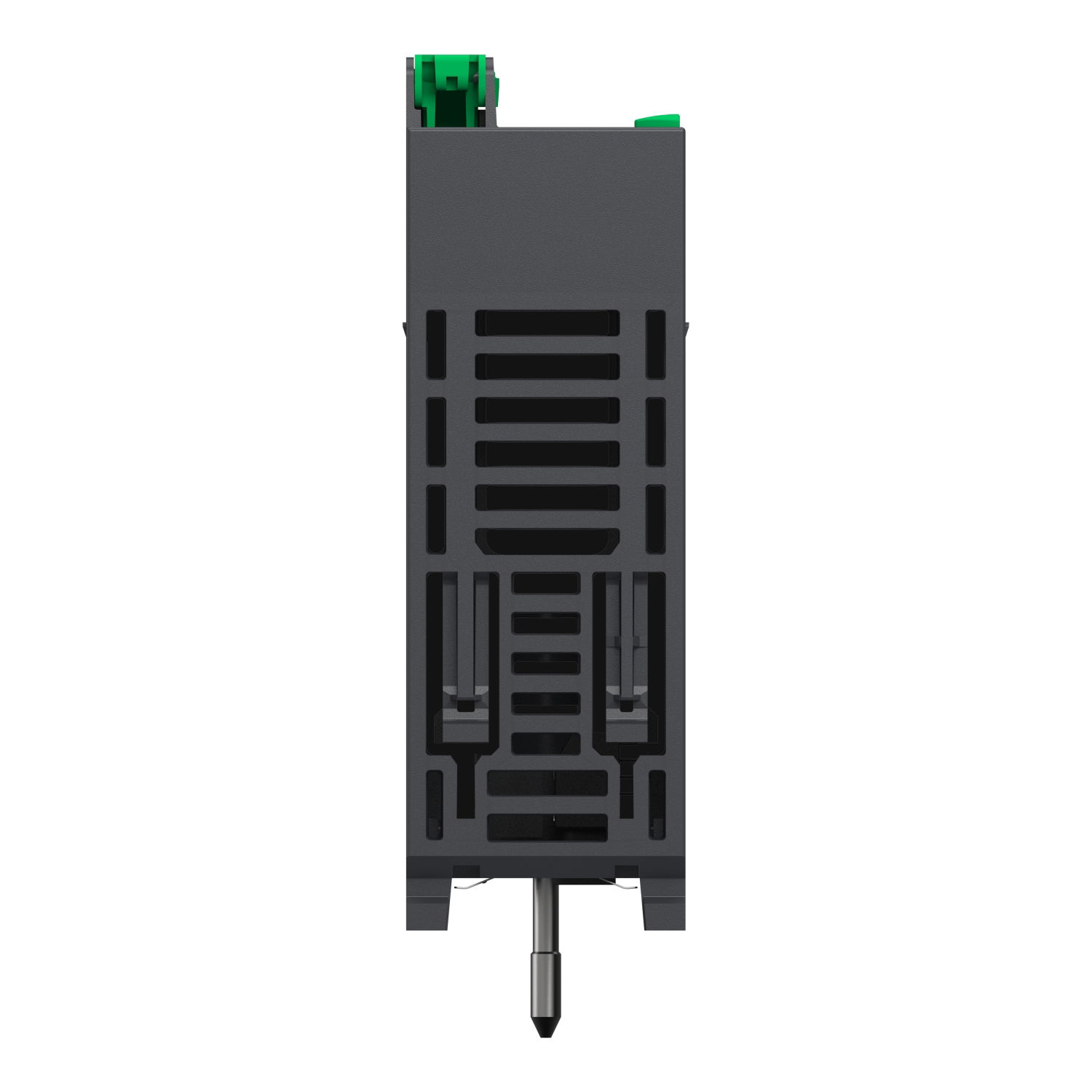

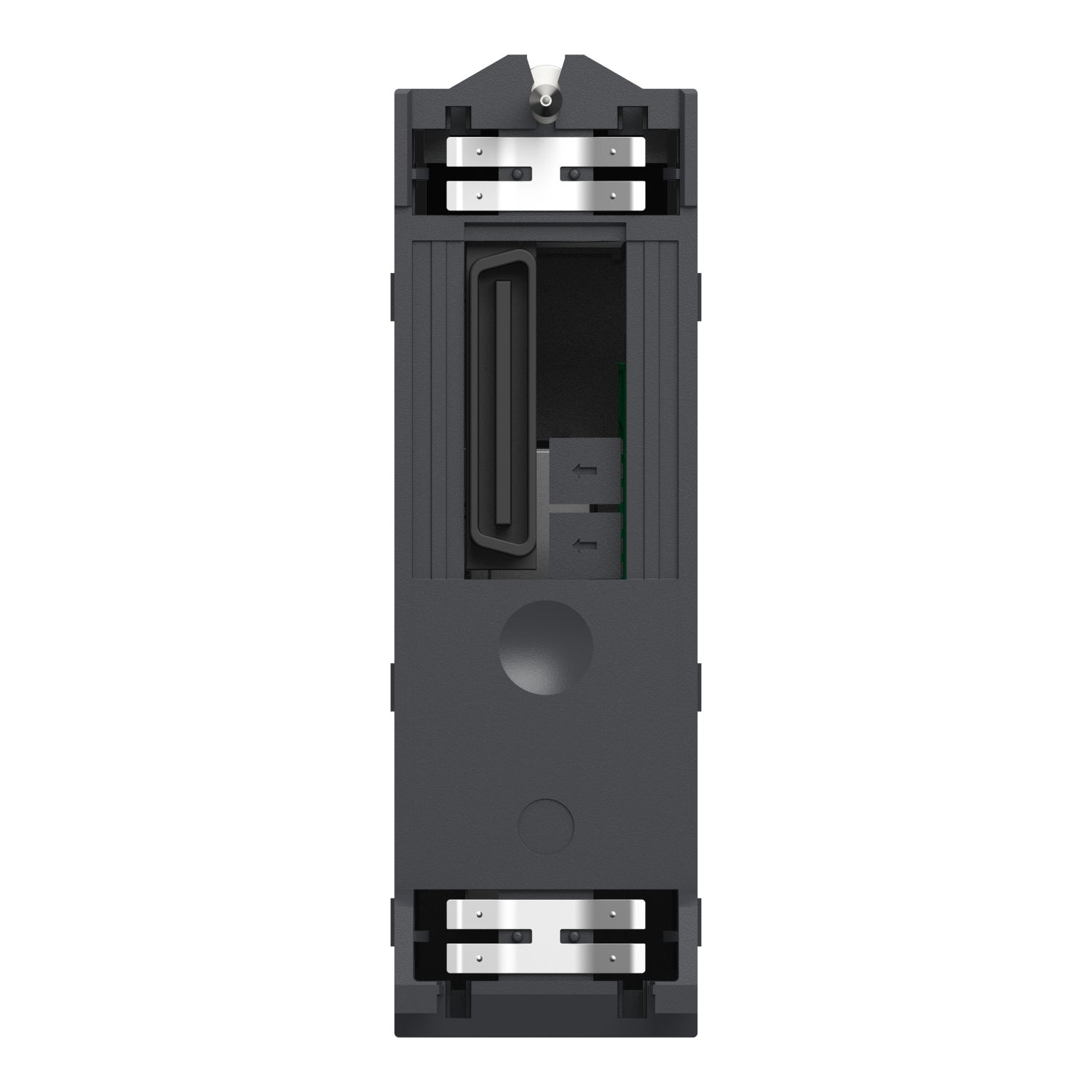

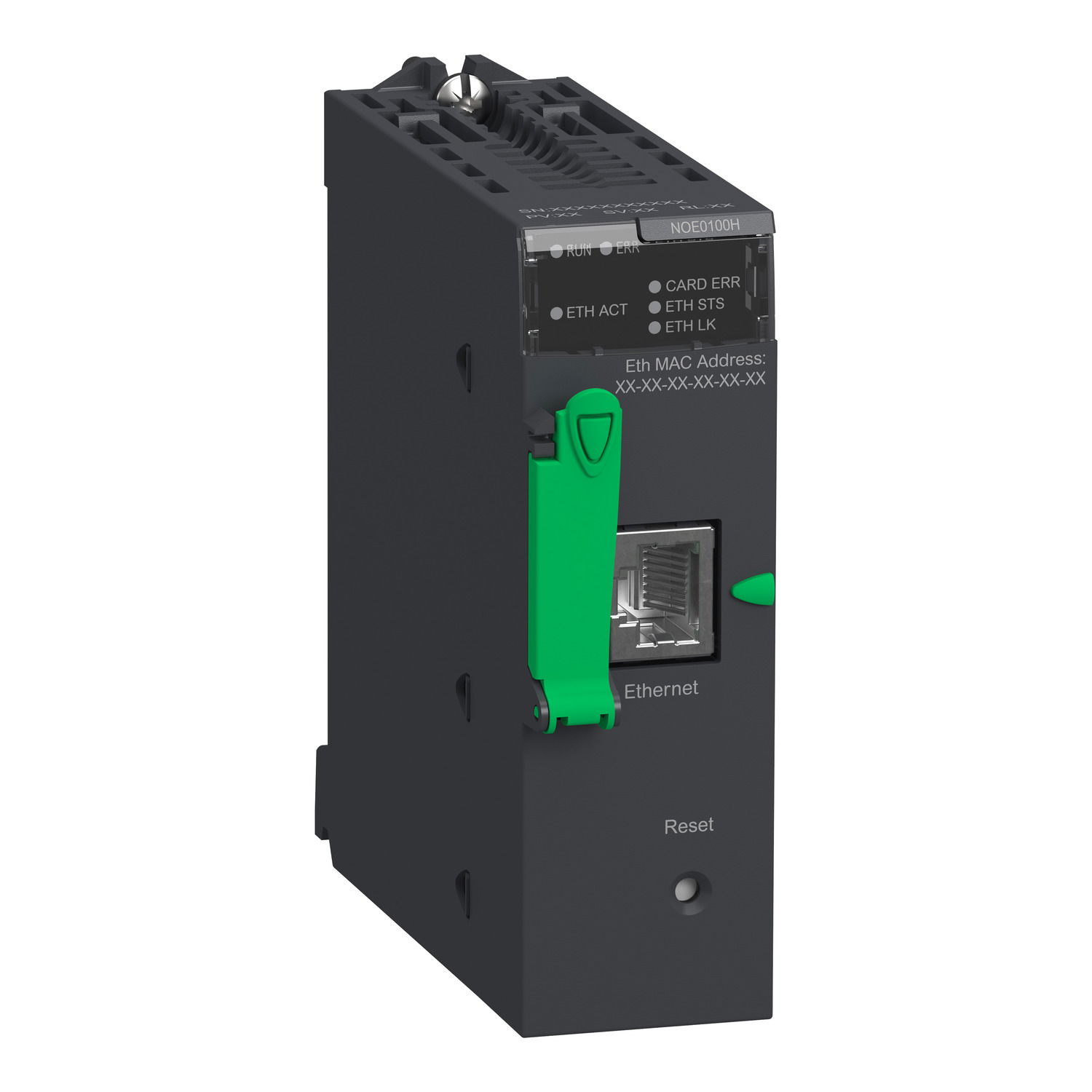

Ethernet TCP/IP network module M340 - transparent ready class B30 server

Ethernet TCP/IP network module M340 - transparent ready class B30 server by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £2,590.00 excl. VAT. Voltimum+ members earn 235 points per unit.

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has conformal coating. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Product identifiers

SKU: BMXNOE0100H
EAN: 3595864024462
GTIN: 3595864024462
MPN: BMXNOE0100H

Voltimum+ Loyalty Programme Loyalty points: 235

Price: £ 2,590.00 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Depth 120 mm
Width 110 mm
Height 55 mm
Redundancy no
IO link master no
Power consumption 2.16 W
Transmission rate 10000 kBit/s
Radio standard GSM no
Radio standard UMTS no
Radio standard Bluetooth no
With potential separation no
SIL according to IEC 61508 None
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of interfaces PROFINET 0
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for INTERBUS no
Appendant operation agent (Ex ia) no
Explosion safety category for gas ATEX gas-ex-protection, Cat. 3G
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Supporting protocol for other bus systems no
Number of HW-interfaces industrial Ethernet 1
Certified for UL hazardous location class II no
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 yes
Certified for UL hazardous location group D (propane) no
Certified for UL hazardous location group C (ethylene) no
Certified for UL hazardous location group E (metal dusts) no
Certified for UL hazardous location group G (non-conductive dusts) no
