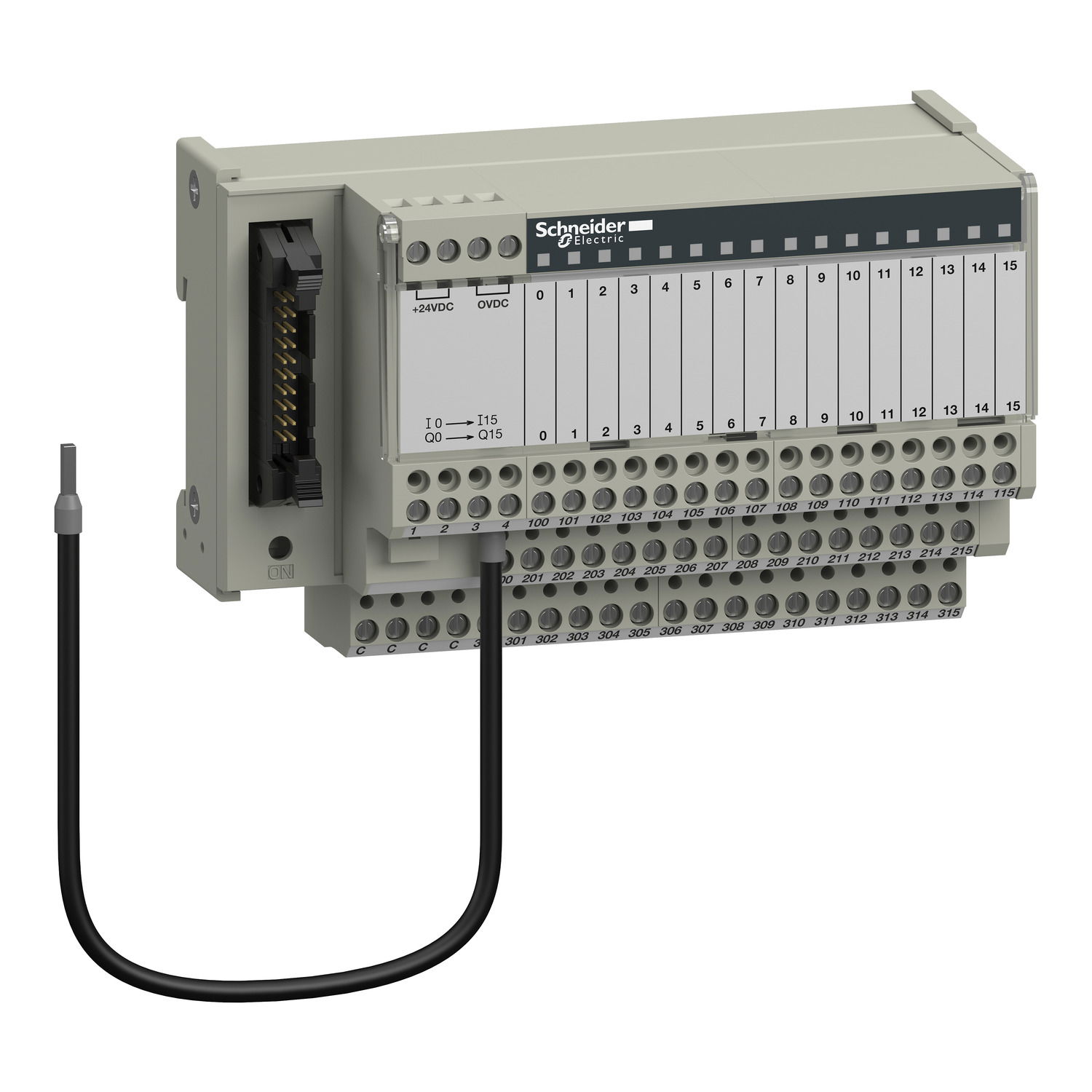

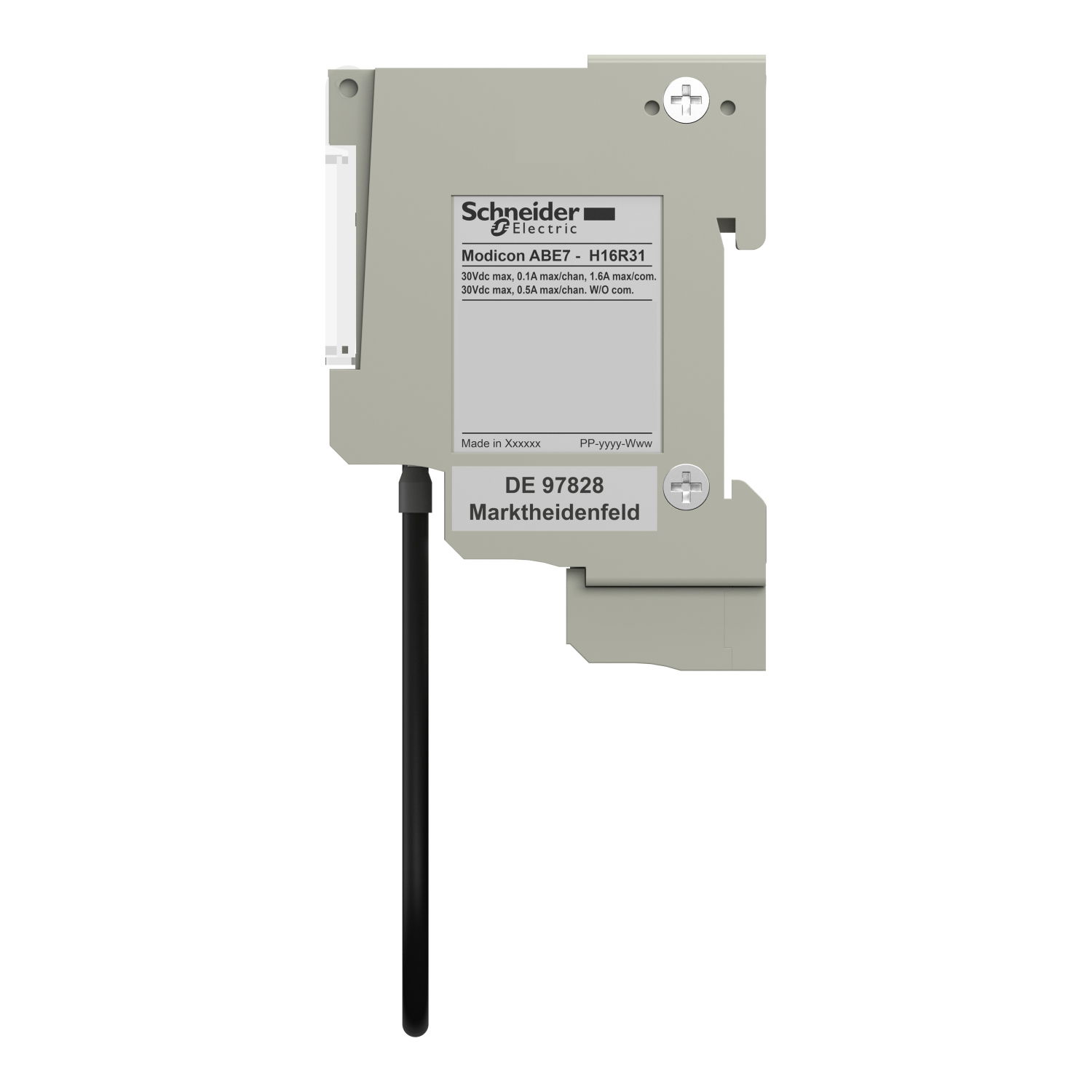

Passive connection sub-base ABE7 - 16 inputs or outputs - Led
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This passive discrete I/O sub base offers 16 channels and 3 terminals per channel. It is a passive connection sub base with rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 125mm. It weighs 0.346kg. It is suitable for all types of industrial applications. This product is certified by BV, CSA, DNV, EAC, GL, LROS, UL and GL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Product identifiers
SKU: ABE7H16R31
EAN: 3389110544985
GTIN: 3389110544985
MPN: ABE7H16R31
Loyalty points:
32
Price: £ 99.36 Excl. VAT
Categories
Features
|
Depth
|
67 mm
|
|
Width
|
125 mm
|
|
Height
|
70 mm
|
|
Rated voltage
|
24 V
|
|
Housing colour
|
Grey
|
|
Housing material
|
Plastic, metallized
|
|
Pollution degree
|
2
|
|
Operating voltage
|
|
|
Max. total current
|
1.8 A
|
|
With LED indication
|
TRUE
|
|
Material contact body
|
Other copper alloys
|
|
Operating temperature
|
|
|
Diameter contact female
|
2.5 mm
|
|
Material insulation body
|
Other
|
|
Cable length configurable
|
TRUE
|
|
Degree of protection (IP)
|
IP2X
|
|
With potential separation
|
FALSE
|
|
Connection for NPN-sensors
|
TRUE
|
|
Degree of protection (NEMA)
|
-
|
|
Material of contact surface
|
Other
|
|
Length of the preassembled cable
|
-
|
|
Number of sensor-/actuator-slots
|
1
|
|
Type of connector for trunk line
|
-
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Connectable conductor cross section
|
|
|
Cable outer diameter for cable gland
|
|
|
Thread sleeves sensor/actuator slots
|
Other
|
|
Number of channels per connector slot
|
16
|
|
Number of poles sensor/actuator slots
|
16
|
|
Max. current carrying capacity per socket
|
1.8 A
|
|
Type of branches for sensor-/actuator cables
|
Other
|
|
Max. current carrying capacity per I/O signal
|
0.5 A
|
|
Fix cable version suitable for cable guide chain
|
FALSE
|
