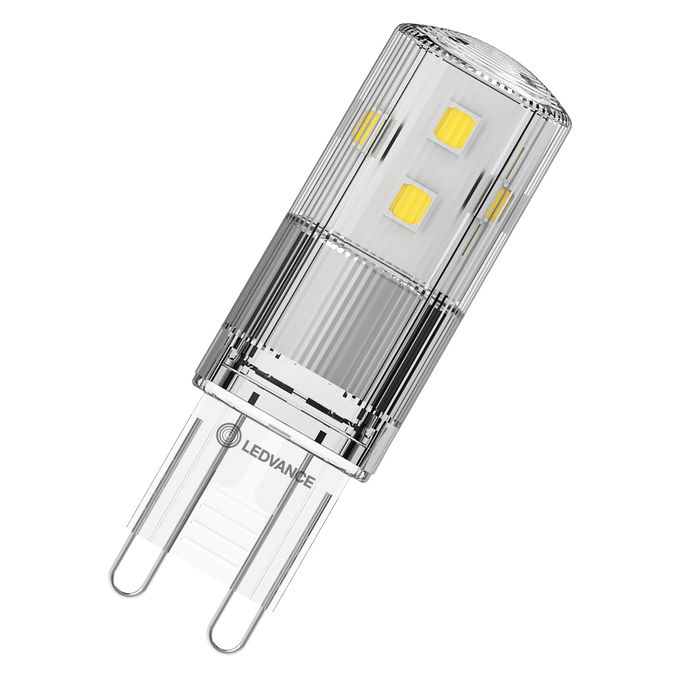

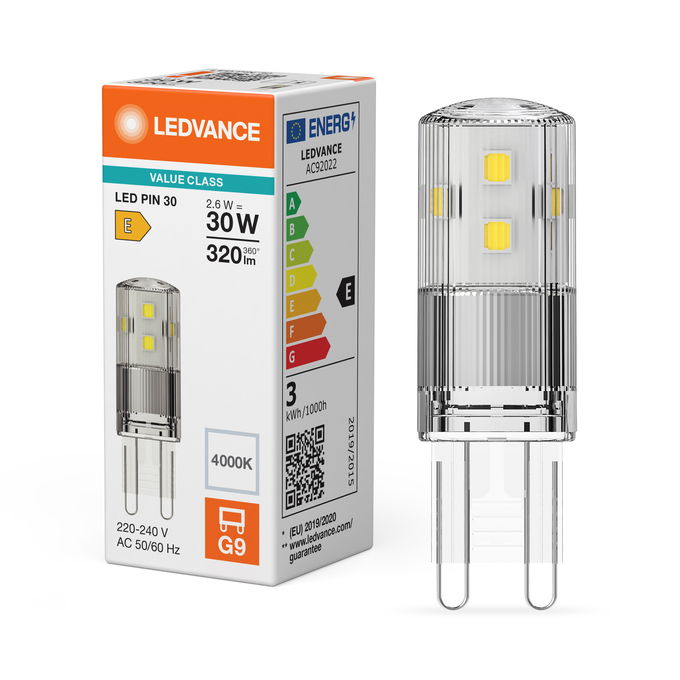

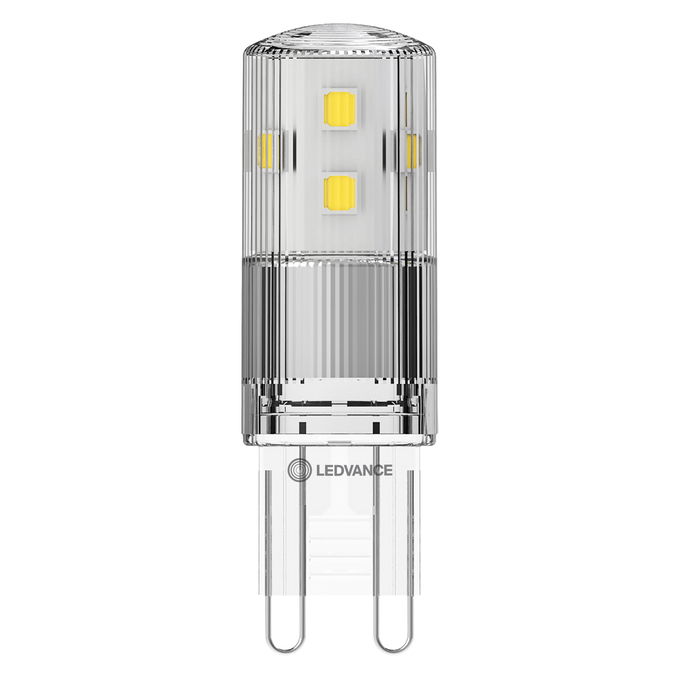

LED PIN 30 300° V 2.6W 840 Clear G9

LED PIN 30 300° V 2.6W 840 Clear G9

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links

Product identifiers

SKU: 4099854248900
EAN: 4099854248900
GTIN: 4099854248900
MPN: 4099854248900

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Capabilities

Dimmable No

Electrical data

Nominal wattage 2.6 W
Construction wattage 2.60 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 25 mA
Inrush current 4.48 A
Mains frequency 50/60 Hz
Max. lamp number on MCB B16 A 167
Power factor λ > 0.40
