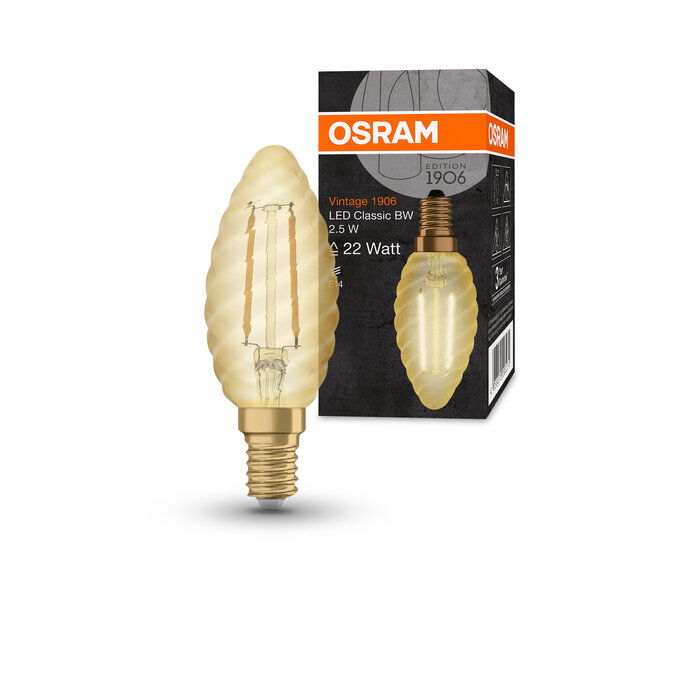

Vintage 1906 Classic BW 22 Filament 2.5W 824 Gold E14

1 / 3

Vintage 1906 Classic BW 22 Filament 2.5W 824 Gold E14

Vintage 1906 Classic BW 22 Filament 2.5W 824 Gold E14 by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock.

Product benefits

Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Lamps with innovative LED "filament" technology

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Lamp made of glass
Lifetime up to 15,000 h
Beam angle: up to 360°
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Product identifiers

SKU: 4058075293274

EAN: 4058075293274

GTIN: 4058075293274

MPN: 4058075293274

Specifications

Electrical data

Nominal wattage	2.5 W
Construction wattage	2.50 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	22 W
Nominal current	19 mA
Type of current	AC
Inrush current	1.8 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Max. lamp number on MCB B10 A	250
Max. lamp number on MCB B16 A	400
Power factor λ	> 0.50

Documents

Documents and certificates

Data sheet

Open

Documents And Certificates

PRODUCT DATASHEET – 1906 LED CLAS BW 22 2.5 W 2400K E14

Open

Product Images And Graphics

Product image: white background, diagonal – 1906_LED_CLASSIC BW 25_FIL GOLD_E14

Open

Product image: white background, upright – 1906_LED_CLASSIC BW 25_FIL GOLD_E14

Open

Product infographic (application image with text and graphic) – Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN

Open

Product infographic (application image with text and graphic) – Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN

Open

Product line drawing with letters – 1906_LED_CLASSIC BW 25_FIL GOLD_E14

Open

Product line drawing, front, no dimensions – 1906_LED_CLASSIC BW 25_FIL GOLD_E14

Open

Combo Shot = Product Beauty Shot + Packaging Image – 1906LCBW22 25W-824230VFILGDE1410X 1

Open

Packaging image, frontal – LED V1906 CLBW 22 2.5W 824 FILG E14 MiCh Front

Open

Packaging image, spacial – LED V1906 CLBW 22 2.5W 824 FILG E14 MiCh Side

Open

Energy Label 2021 UK – EL-4058075293274-AC324 24

Open

Energy Label 2021 UK – EL-4058075293274-AC175 26

Open

Luminous flux	220 lm
Nominal useful luminous flux 90°	220 lm
Luminous efficacy	88 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm Comfort Light
Color temperature	2400 K
Color rendering index Ra	80
Light color	824
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1.0
Stroboscope effect metric (SVM)	0.9

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Overall length	100.00 mm
Diameter	35.00 mm
Maximum diameter	35 mm
Product weight	15.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	60 °C

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Base (standard designation)	E14
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Clear
Product remark	All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Energy efficiency class	F 1)
Energy consumption	3.00 kWh/1000h
Type of protection	IP20
Standards	CE; EAC
Photobiological safety group acc. to EN62778	RG0

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E14
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	0 W
Claim of equivalent power	Yes
Length	100.00 mm
Height	35.00 mm
Width	35.00 mm
Chromaticity coordinate x	0.494
Chromaticity coordinate y	0.424
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0,90
Displacement factor	0,40
LED light source replaces a fluorescent light source	No
EPREL ID	1402996,523195
Model number	AC32424,AC17526

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
