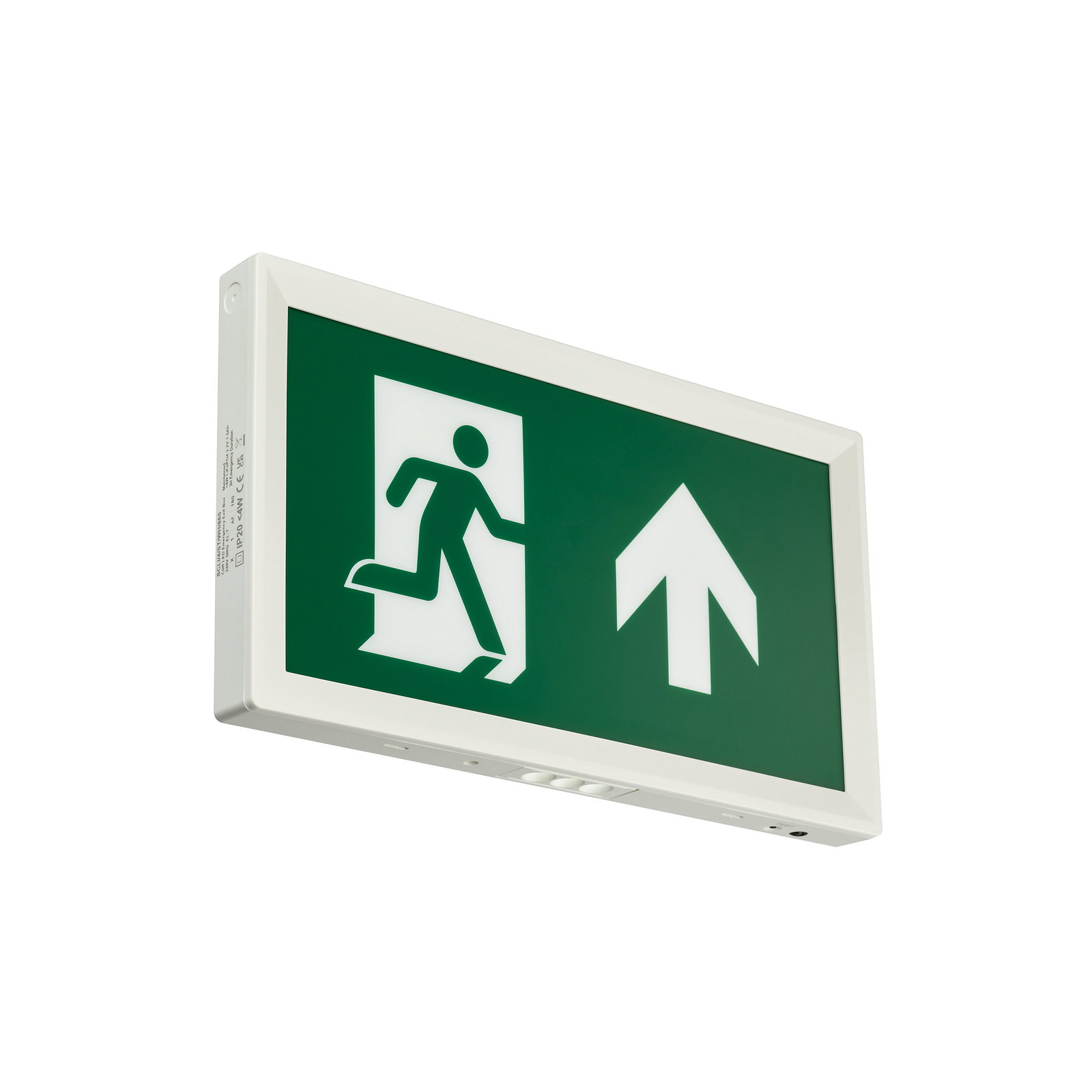

Exit Sign, Illuminated emergency exit sign, 4 W, 4 W, 330x186mm H30 mm, 85 lm, 6500 K, IP20, ELB3h
Philips

Exit Sign, Illuminated emergency exit sign, 4 W, 4 W, 330x186mm H30 mm, 85 lm, 6500 K, IP20, ELB3h

Illuminated emergency exit sign, 330x186mm; H30 mm, Polycarbonate, White, Signal white (RAL9003), 85 lm, 4 W, 32 lm/W, 6500 K, 0.33, Clear, UV-stabilised polycarbonate cover, IP20 | Finger-protected, IK03 | 0.3 J, Safety class II, 2 push-in connectors 3-pole, Emergency lighting 3-hours duration basic version

Product identifiers

SKU: 912401483515

Price: £ 0.00 Excl. VAT

Categories

Emergency Lighting LED Lighting & Luminaires

Specifications

Cable -
CE mark Yes
Dimmable No
ENEC mark -
Connection 2 push-in connectors 3-pole
Optic type -
Inrush time 100 ms
Input Voltage 220-240 V
Overall width 186 mm
Housing Colour White
Line Frequency 50 Hz
Overall height 30 mm
Driver included Yes
Warranty period 5 years
Lamp family code -
EU RoHS compliant Yes
Flammability mark -
Power Consumption 4 W
Optical cover type -
Light source colour 6500
Protection class IEC Safety class II
Ingress protection code IP20 | Finger-protected
Power Factor (Fraction) 0.4
Light source engine type LED
End CLO power consumption 4 W
Upwards light output ratio 0.01
Optical cover/lens material UV-stabilised polycarbonate cover
Colour rendering index (CRI) <gt/>80
Standard tilt angle post-top 0°
Driver/power unit/transformer -
Suitable for random switching Not applicable
Correlated Colour Temperature (Nom) 6500 K
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h L95
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h L90
