ENDURA PRO Spot Sensor 16W 4000K IP55 White
1 / 4
ENDURA PRO Spot Sensor 16W 4000K IP55 White
Product benefits
- Small spotlight for precise illumination
- Lighting according to requirements due to adjustable luminaire head
- Easy and quick installation
Areas of application
- Outdoor
- Entrance areas
- Arcade passage
Product features
- 4 operating modes selectable (light 6h continous on, standby, switch-on by movement or dusk)
- Adjustable luminaire head
- Type of protection: IP55
- Impact resistance: IK05
- Protection class: II
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Product identifiers
SKU: 4099854451836
EAN: 4099854451836
GTIN: 4099854451836
MPN: 4099854451836
Categories
Specifications
Sensor
| Type of sensor | Light; Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 180 ° |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 12500 |
Control gear
| Output current | 220…280 mA |
Electrical data
| Nominal wattage | 16.00 W |
| Nominal voltage | 220…240 V |
Documents
Documents and certificates
Data sheet
Documents And Certificates
Product Images And Graphics

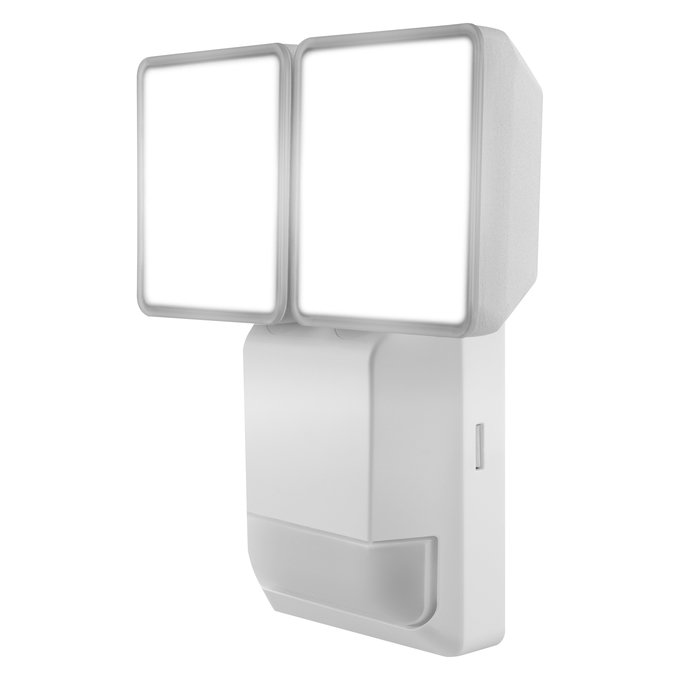

Product image: white background, diagonal – E SEC SPOT S 16W 1500/840 IP55 WT

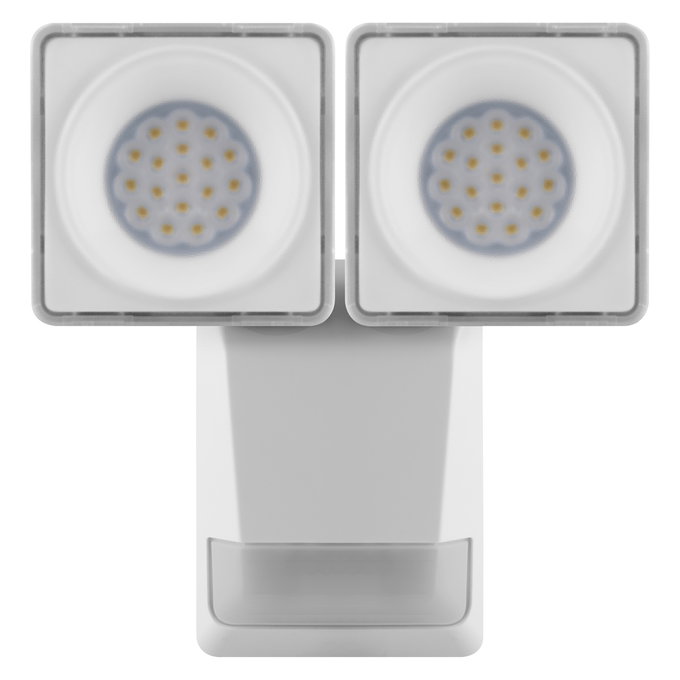

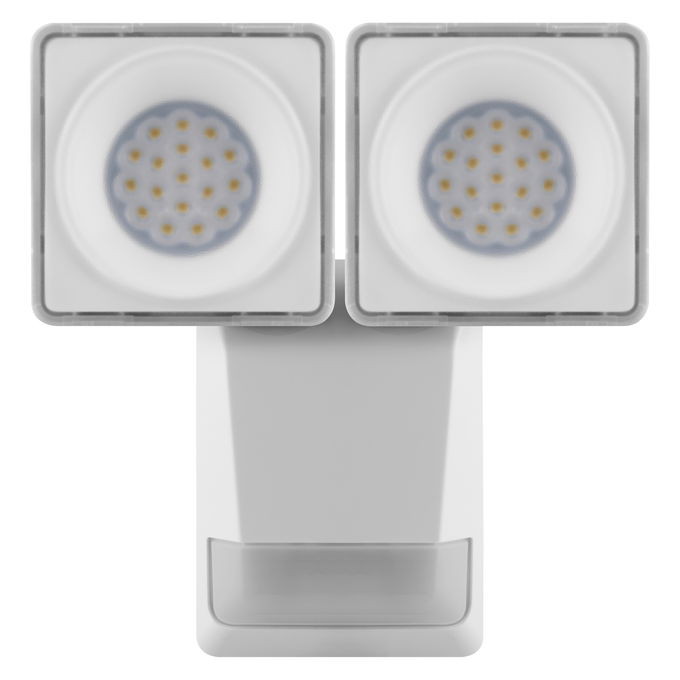

Product image: white background, upright – E SEC SPOT S 16W 1500/840 IP55 WT

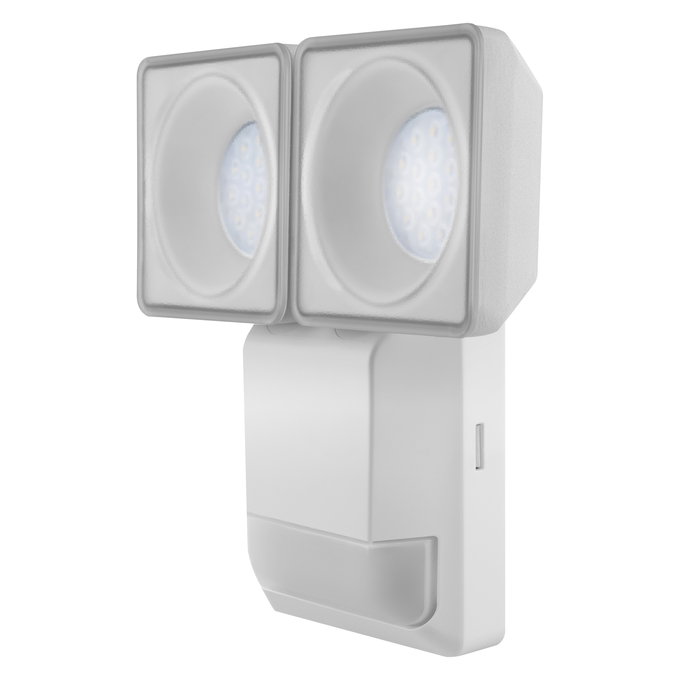

Product image: white background, upright, switched on – E SEC SPOT S 16W 1500/840 IP55 WT
Product line drawing with letters – E SEC SPOT S 16W 1500/840 IP55
