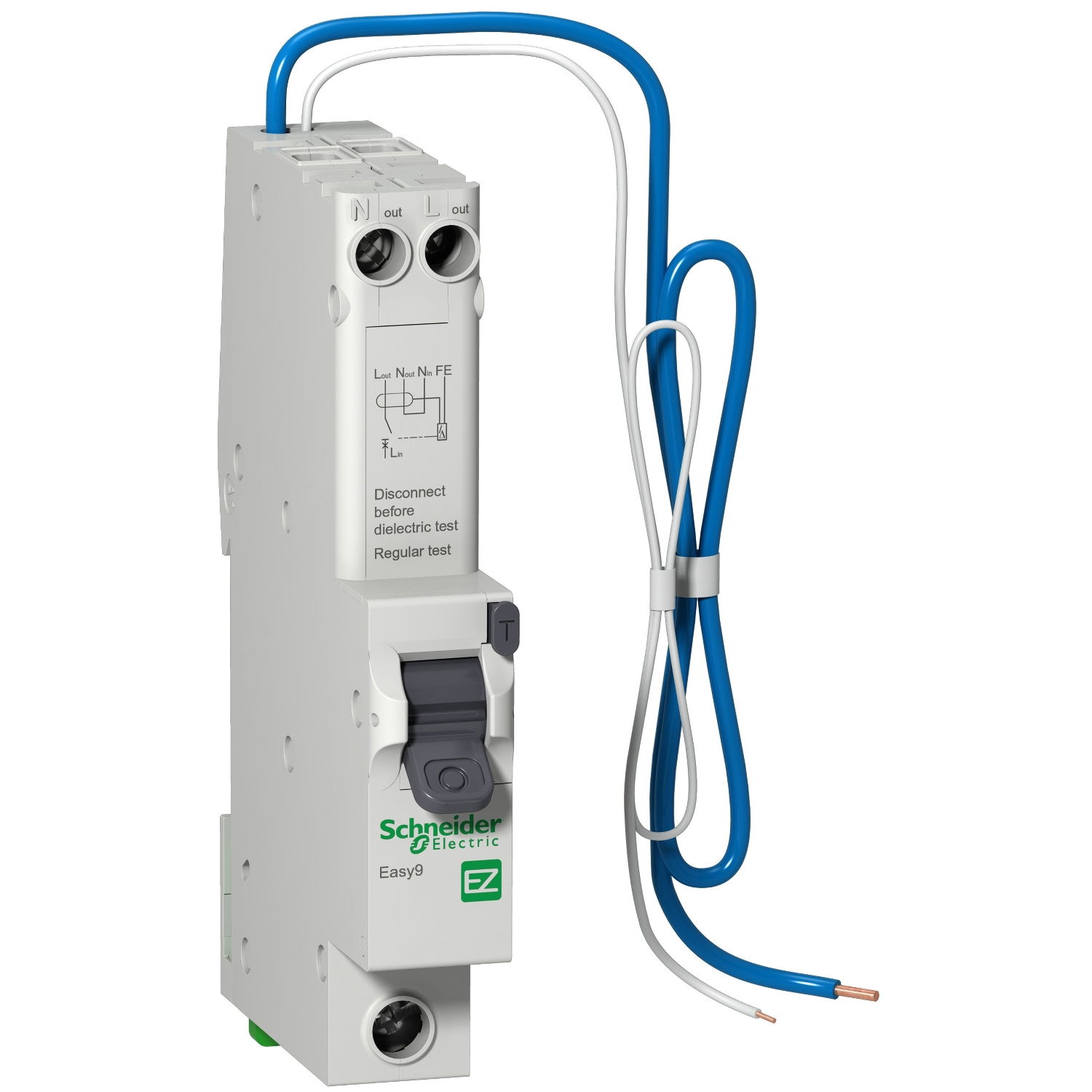

Easy9 RCD with overcurrent protection - 1P + Ns - 6 A - B curve - 6000 A - 30mA

Easy9 RCD with overcurrent protection - 1P + Ns - 6 A - B curve - 6000 A - 30mA by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £29.05 to £30.89 excl. VAT. Voltimum+ members earn 35 points per unit.

This Easy9 is a modular residual current breaker with overcurrent protection (RCBO). Protection of cable from overloads. Protection of persons from electric shocks by direct contact (30 mA sensitivity). Can be fitted instead of a miniature circuit breaker for complete protection of one circuit. Certified compliant to BS EN61009-1. This product has an operating test button on the front panel. It also has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is compliant with BS EN 61009-1 standard. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is light grey (RAL 7035). The dimensions are (W) 18mm x (H) 110mm x (D) 72mm. The weight is 180g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

Product identifiers

SKU: EZ9D16806
EAN: 3606480570179
GTIN: 3606480570179
MPN: EZ9D16806

Voltimum+ Loyalty Programme Loyalty points: 35

Price range: £ 29.05 - £ 30.89 Excl. VAT

Categories

Circuit Breakers Switchgear & Circuit Protection RCBOs

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 6 A
Rated voltage 230 V
Built-in depth 50 mm
Pollution degree 2
Rated fault current 0.03 A
Over voltage category 4
Release characteristic B
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA

Documents

Declaration of Conformity (Sustainability)

EZ9D16806 REACh Regulation

Open

Instruction sheet

Easy9 RCBO - EZ9D168oo - Instruction Sheet

Open

Product data sheet

Open

Catalog

Easy9 Catalogue and Technical Guide

Open

Declaration of Conformity (Sustainability)

EZ9D16806 EU RoHS Directive

Open

Declaration of conformity

UKCA Declaration of Conformity_RCBO_Easy9

Open

Environmental Disclosure

EASY9 RCBO 1P-NS 32A B 6KA 30MA A 230V

Open

CAD

Open
