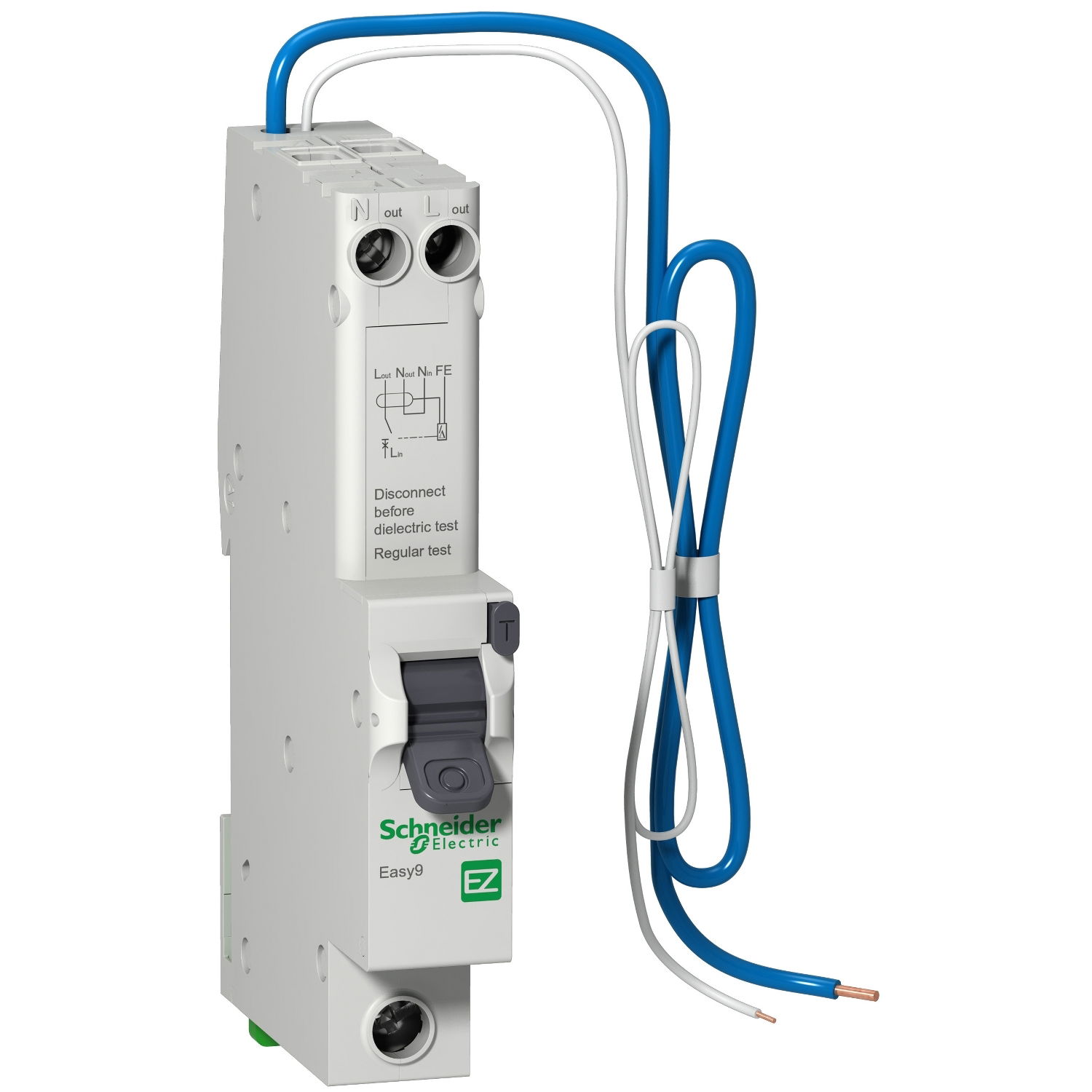

Easy9 RCD with overcurrent protection - 1P + Ns - 10 A - B curve - 6000 A - 30mA

This Easy9 is a modular residual current breaker with overcurrent protection (RCBO). Protection of cable from overloads. Protection of persons from electric shocks by direct contact (30 mA sensitivity). Can be fitted instead of a miniature circuit breaker for complete protection of one circuit. Certified compliant to BS EN61009-1. This product has an operating test button on the front panel. It also has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is compliant with BS EN 61009-1 standard. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is light grey (RAL 7035). The dimensions are (W) 18mm x (H) 110mm x (D) 72mm. The weight is 180g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
