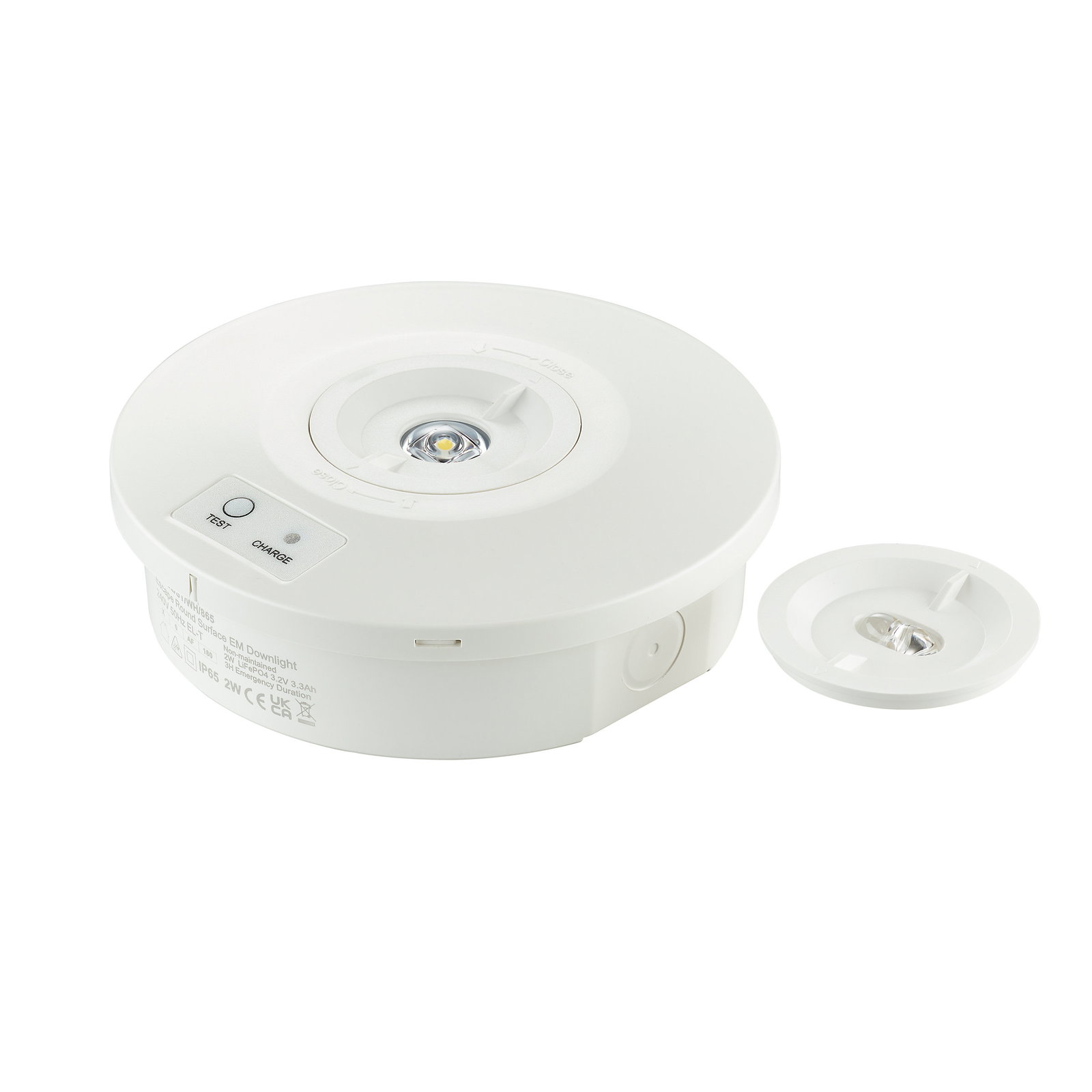

Emergency Surface Mounted Downlight, Surface mounted emergency downlight, 2 W, 2 W, D155mm H46 mm, 273 lm, 6500 K, IP65, ELP3h
Surface mounted emergency downlight, D155mm; H46 mm, Polycarbonate, White, Signal white (RAL9003), 273 lm, 2 W, 135 lm/W, 6500 K, 0.33, Open area or corridor optic, Clear, UV-stabilised polycarbonate cover, IP65 | Dust penetration-protected, jet-proof, IK03 | 0.3 J, Safety class II, 2 push-in connectors 3-pole, Emergency lighting 3-hour duration Pro version
Product identifiers
SKU: 912401483507
Price: £ 0.00 Excl. VAT
Categories
Features
|
Cable
|
-
|
|
CE mark
|
Yes
|
|
Dimmable
|
No
|
|
ENEC mark
|
-
|
|
Connection
|
2 push-in connectors 3-pole
|
|
Optic type
|
Open area or corridor optic
|
|
Inrush time
|
100 ms
|
|
Input Voltage
|
220-240 V
|
|
Luminous Flux
|
273 lm
|
|
Glow-wire test
|
-
|
|
Housing Colour
|
White
|
|
Inrush current
|
3.04 A
|
|
Line Frequency
|
50 Hz
|
|
Optic material
|
Polycarbonate
|
|
Overall height
|
46 mm
|
|
Driver included
|
Yes
|
|
Mounting device
|
-
|
|
Warranty period
|
5 years
|
|
Housing material
|
Polycarbonate
|
|
Lamp family code
|
-
|
|
Overall diameter
|
155 mm
|
|
Control interface
|
Internal (no external connection)
|
|
EU RoHS compliant
|
Yes
|
|
Fixation material
|
-
|
|
Flammability mark
|
-
|
|
Maximum dim level
|
Not applicable
|
|
Power Consumption
|
2 W
|
|
Optic type outdoor
|
-
|
|
Optical cover type
|
-
|
|
Reflector material
|
-
|
|
Light source colour
|
6500
|
|
Initial chromaticity
|
0.33
|
|
Protection class IEC
|
Safety class II
|
|
Constant light output
|
No
|
|
Ingress protection code
|
IP65 | Dust penetration-protected, jet-proof
|
|
Luminous flux tolerance
|
+/-5%
|
|
Power Factor (Fraction)
|
0.39
|
|
Effective projected area
|
25 m²
|
|
Light source engine type
|
LED
|
|
Ambient temperature range
|
+5 to +40 °C
|
|
End CLO power consumption
|
2 W
|
|
Optical cover/lens finish
|
Clear
|
|
Upwards light output ratio
|
0.0
|
|
Luminaire light beam spread
|
150° - 80° x 30°
|
|
Optical cover/lens material
|
UV-stabilised polycarbonate cover
|
|
Power consumption tolerance
|
+/-10%
|
|
Colour rendering index (CRI)
|
<gt/>80
|
|
Mech. impact protection code
|
IK03 | 0.3 J
|
|
Standard tilt angle post-top
|
0°
|
|
Average CLO power consumption
|
2 W
|
|
Driver/power unit/transformer
|
-
|
|
Initial CLO power consumption
|
2 W
|
|
Suitable for random switching
|
Not applicable
|
|
Luminous efficacy (rated) (nom.)
|
135 lm/W
|
|
Correlated Colour Temperature (Nom)
|
6500 K
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 35000 h
|
L95
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 50000 h
|
L95
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 75000 h
|
L95
|
|
Lumen maintenance (EN-IEC 62722-2-1) at median useful life* 100000 h
|
L95
|
