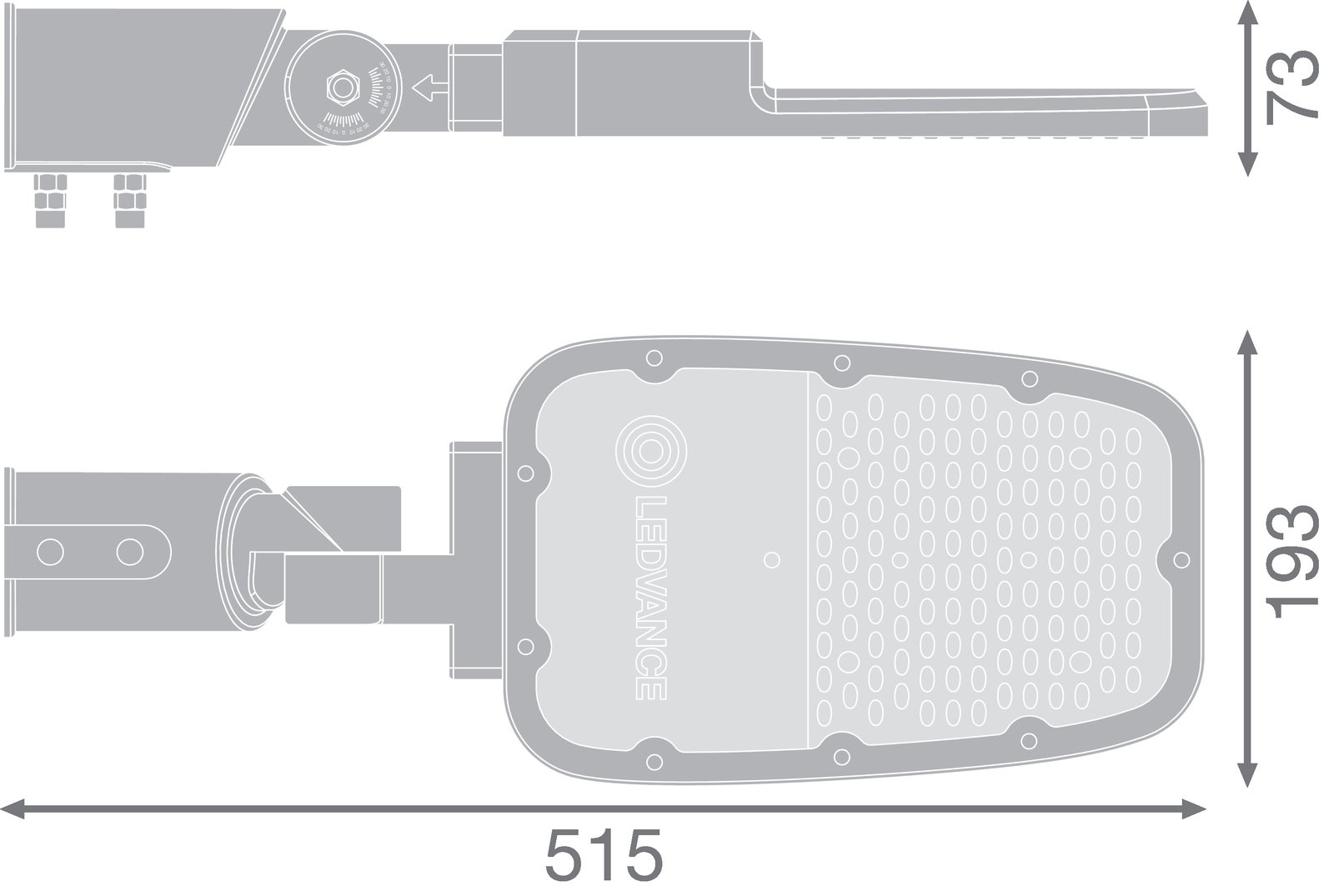

| Width |
193.00 |
| Length |
513.00 |
| Diameter |
- |
| Lamp type |
LED not exchangeable |
| Dimming RF |
no |
| Dimming DMX |
no |
| Dimming DSI |
no |
| Lamp holder |
None |
| Cable length |
0.5 |
| Dimming DALI |
no |
| Height/depth |
73.00 |
| Power factor |
0.90 |
| Voltage type |
AC |
| Dimming 0-10 V |
no |
| Dimming 1-10 V |
no |
| Dimming Zigbee |
no |
| Housing colour |
Grey |
| Material cover |
Plastic, opal |
| Remote control |
None |
| Type of wiring |
Ending |
| Colour of light |
White |
| Connection type |
Other |
| Impact strength |
IK08 |
| Mounting method |
Post top |
| No dim function |
yes |
| Nominal current |
295 - 295 |
| Nominal voltage |
100 - 240 |
| Number of poles |
3 |
| Housing material |
Aluminium |
| Adjustable optics |
no |
| Light distributor |
Focal lens |
| Max. system power |
65.00 |
| With control gear |
yes |
| With light sensor |
no |
| With light source |
yes |
| Colour temperature |
3000 - 3000 |
| Dimming LineSwitch |
no |
| Luminaire efficacy |
130 |
| Surface protection |
Powder coating |
| With radio control |
no |
| Dimming programmable |
no |
| Type of control gear |
LED operating device current-controlled |
| Dimming Touch and Dim |
no |
| With connection cable |
yes |
| Operation by Bluetooth |
no |
| Conductor cross section |
- |
| IFTTT support available |
yes |
| Suitable for lamp power |
|
| Dimming with push-button |
no |
| Suitable for spigot size |
60 - 60 |
| Degree of protection (IP) |
IP66 |
| Exchangeable control gear |
yes |
| Colour rendering index CRI |
70-79 |
| Constant light output (CLO) |
no |
| Degree of protection (NEMA) |
- |
| Dimming Sine Wave Reduction |
no |
| Compatible with Amazon Alexa |
no |
| Compatible with Apple HomeKit |
no |
| Compatible with Google Assistant |
no |
| Dimming mains voltage modulation |
no |
| Rated life time L70/B50 at 25 °C |
100000 |
| Dimming potentiometer (integrated) |
no |
| Colour consistency (McAdam ellipse) |
- |
| Dimming phase cut-on (leading edge) |
no |
| Suitable for number of light sources |
0 |
| Dimming phase cut-off (trailing edge) |
no |
| With light regulation program control |
no |
| Protection class according to IEC 61140 |
I |
| Dimming manufacturer's proprietary system |
no |
| Rated luminous flux according to IEC 62722-2-1 |
8450 |
| Type of connection for sensor/communication module |
- |
| Rated ambient temperature according to IEC 62722-2-1 |
-30 - +50 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
40 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
88 |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
- |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
- |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) |
- |
| Energy efficiency class of the light source according to EU regulation 2019/2015 |
D |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
no |
